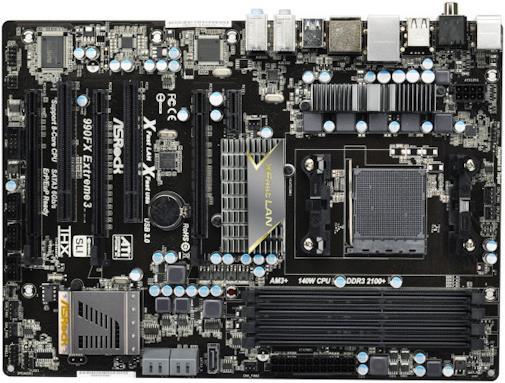

Product details
ASRock Extreme Tuning Utility, ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock Xfast USB, ASRocker ON/OFF Play Technology, CPU Frequency Stepless Control
| Processor family | Phenom II |
| Memory type | DDR3-RAM |
| Internal connection options | M.2 SATA (1x) |
| Peripheral connections | USB 3.1 Gen 2 Type-A (2x) |
| Item number | 290207 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 990FX Extreme3 |
| Release date | 3/9/2012 |
| Form factor | ATX |
| Processor socket | AM3+ |
| Chipset | AMD 990FX |
| Mainboard features | Front panel audio connector |
| Operating system compatibility | Windows 7, Windows 8, Windows Vista, Windows XP |
| Peripheral connections | USB 3.1 Gen 2 Type-A (2x) |
| BIOS type | Ami |
| Processor family | Phenom II |
| Memory form factor | DIMM |
| Number of pins | 240 x |
| Number of memory modules (RAM) | 4 x |
| Max. memory (RAM) | 32 GB |
| Memory chip | DDR3-1066 (PC3-8500), DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800), DDR3-1866 (PC3-14900), DDR3-800 (PC3-6400) |
| Max. RAM OC | 2100 MHz |
| Supported memory speed | 1600 MHz, 1866 MHz |
| Memory type | DDR3-RAM |
| RAM buffer | Unbuffered |
| Channel architecture | 2 |
| Multi-GPU PCI-E x16 Speed | x16/x16, x16/x16/x4 |
| Multi-GPU technology | AMD 3-Way CrossFireX, AMD CrossfireX, AMD Quad-GPU CrossFireX, NVIDIA Quad SLI, NVIDIA SLI |

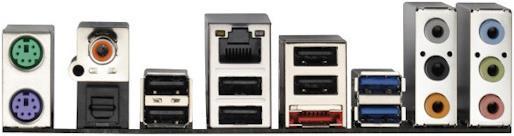

| Network connections | RJ45 Gigabit Ethernet (1x) |
| Ethernet controller brand | Broadcom |
| Ethernet controller | Broadcom BCM57781 |
| Max. port speed | 1 Gbit/s |
| Chip | Realtek ALC892 |
| Audio channel | 7.1 Channel |
| Audio Connections | Digital Audio Out (1x) |
| Internal connection options | M.2 SATA (1x) |
| PCI express version (max.) | 2 |
| Power connectors | 24-pin ATX, 8-pin ATX 12V |

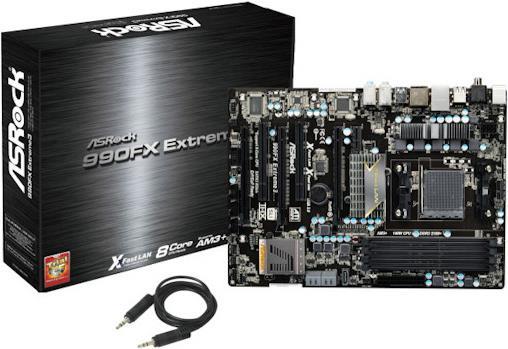

| Scope of delivery | S-ATA cable, User manual |
| Length | 305 mm |
| Width | 218 mm |
| Length | 6 cm |
| Width | 26.50 cm |
| Height | 34 cm |
| Weight | 1.32 kg |
Specifications may include unverified machine translations.
