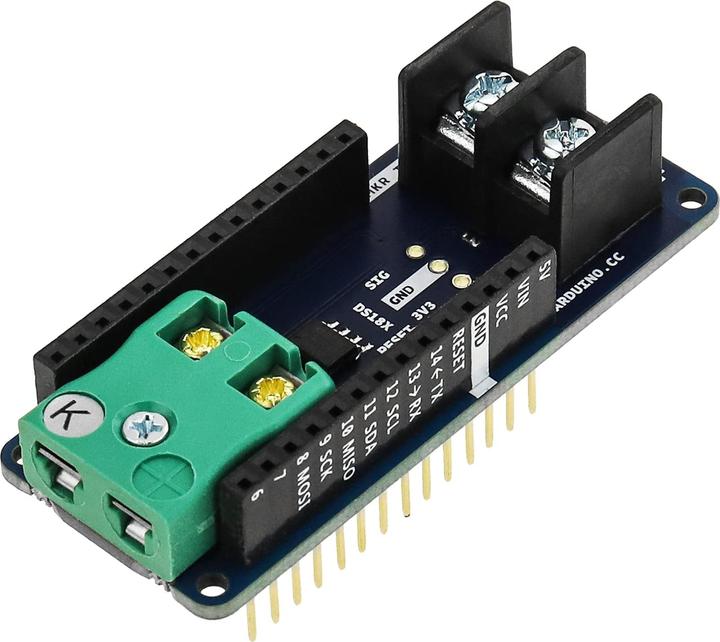

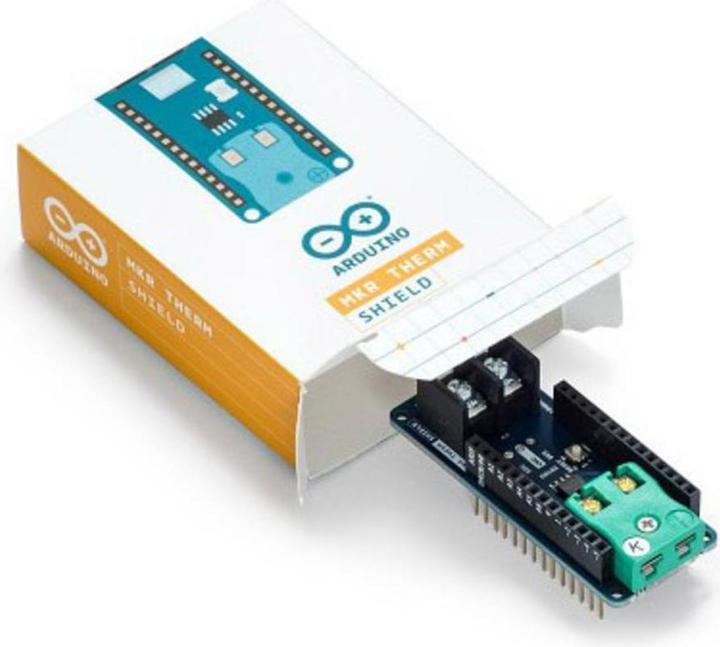

Arduino Shield MKR Therm Shield

Perform precise temperature measurements! Your solution for accurate and long-term stable temperature measurements. Arduino MKR THERM. The MKR THERM Shield enables a board from the MKR family to capture temperatures from a Type K thermocouple and a digital one-wire sensor DS18Bxx. The thermocouple is a type of temperature sensor that offers high accuracy and a wide measurement range. Its analog nature requires a specific interface, and this shield is based on the digital interface of the MAX31855 thermocouple. The two connections of the MKR THERM Shield allow the use of Type K thermocouples with or without connectors on the metal wires. The MKR THERM Shield has its own library for reading the temperature measured by the thermocouple. Technical specifications: Connections K Type, Dallas DS18S20 (for soldering), screw terminals. Input and operating voltage 3.3 V. Operating temperature -200 °C to +700 °C. Communication SPI/1Wire, IC MAX31855. Length 61 mm, width 25 mm, weight 32 g.
