Product details
Resistance: 10Ω
Power: 25W
Series: HS25
Enclosure Type: Aluminum housing
Tolerance: ±5%
Technology: Wound
Connection Type: Axial
Maximum Temperature Coefficient: -100ppm/°C
Maximum Temperature Coefficient: +100ppm/°C
Temperature Coefficient: ±100ppm/°C
Overall Length: 51mm

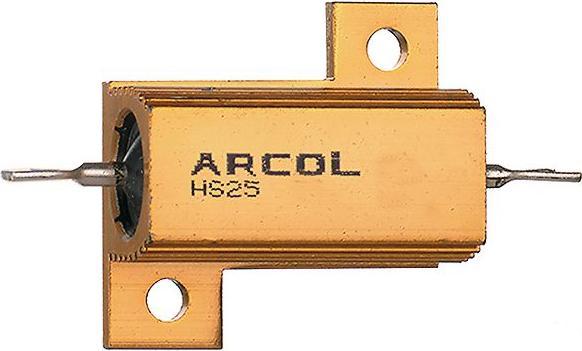

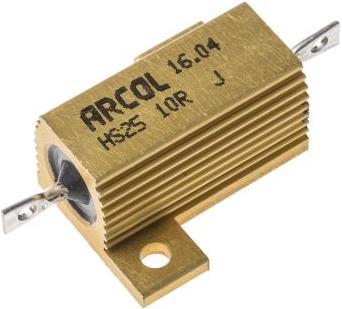

To achieve the maximum rated power of this power resistor, it has been designed for direct mounting on a suitable heatsink with a thermal connection. The 25 W wire-wound power resistor in aluminum housing from the HS series offers high performance and a good balance between peak pulse load capacity and volume. These 25 W resistors for front panel mounting are manufactured according to IEC 115 and MIL 18546 standards. They are designed for direct heatsink mounting with thermally conductive compound, ensuring maximum performance. At high ambient temperatures, the output decreases linearly to zero at +200 °C. Wire-wound to maximize high pulse load capacity and compact size for rated power.
