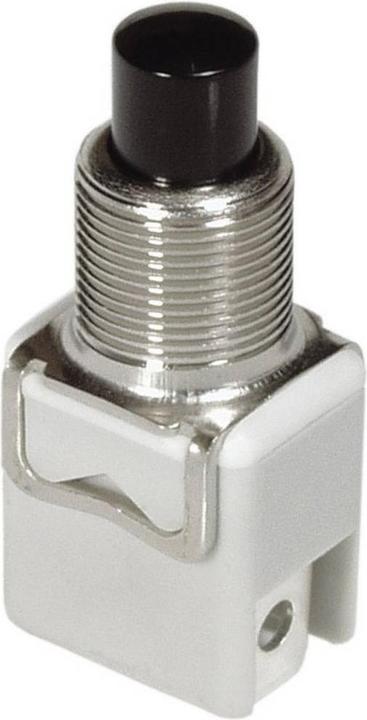

APEM Push button 250 V/AC 4 A - Round push button

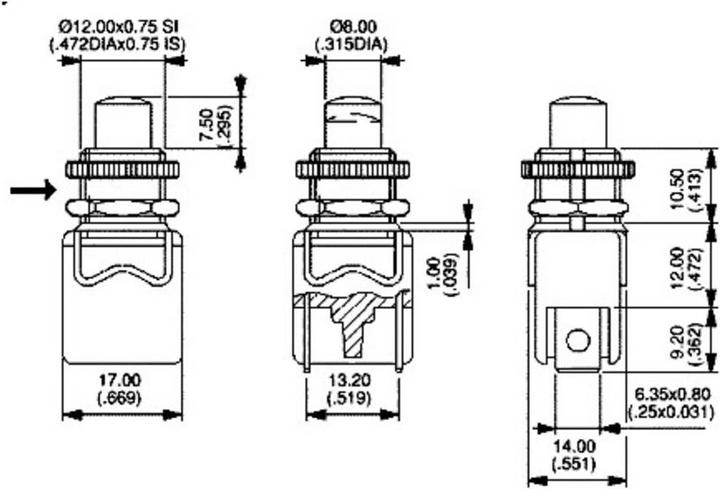

The push button 250 V/AC 4 A with a round button is a versatile and reliable component that can be used in various applications. With a mounting diameter of 12.2 mm and a maximum panel thickness of 5 mm, this button is designed for easy integration into different devices and systems. The button is equipped with a normally open contact and offers an electrical lifespan of up to 10,000 cycles, making it a durable choice for numerous applications. The push button is housed in a robust black casing and features a raised actuator for easy operation. The high voltage resistance and insulated resistance provide additional safety and reliability in operation.

• 6.3 mm flat connector for easy installation
• High voltage resistance of 3000 V between terminals and ground
• Maximum contact resistance of 10 mΩ at 1 A/2 V
• Robust contact material made of silver (Ag) for improved conductivity
• Momentary action with a switching position of 1 x On/(Off).
