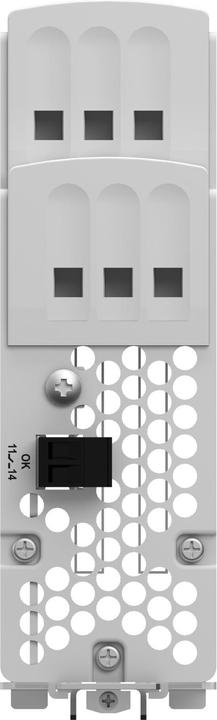

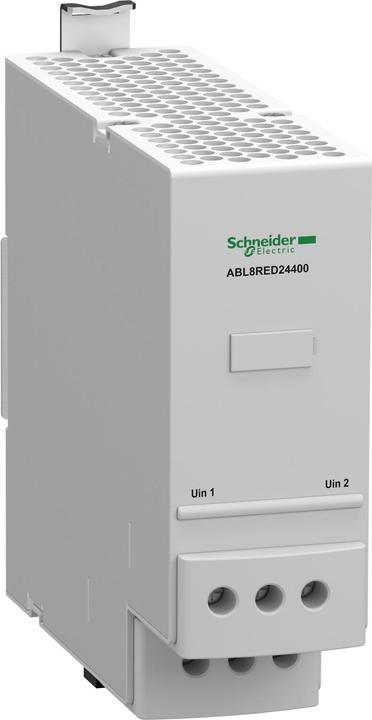

APC GmbH Redundancy module ABL8RED24400

Schneider Electric Redundancy Module ABL8RED24400

Manufacturer: Schneider Electric
Designation: Redundancy Module
Type: ABL8RED24400
Supply Voltage Type: DC
Output Voltage: 24 V
Max. Output Current 1: 40 A
Adjustable Output Voltage: yes
Nominal Output Voltage 1: 24 V
Nominal Output Current 1: 40 A
Short-Circuit Proof: yes
Rated Supply Voltage for DC: 24 V
Regulated Output Voltage: yes
Power Output: 145 W
Stabilized: yes
Electrical Connection Type: Screw Connection
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Rack Installation: yes
Direct Mounting Possible: no
Width: 44 mm
Height: 146 mm
Depth: 140 mm
Suitable for Safety Functions: yes
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Protection Class (IP): IP10

The ABL8RED24400 redundancy module enhances the power supply reliability of applications. It allows the connection of two 24 VDC power supplies to a single supply circuit for automation applications. In the event of a power supply failure, it seamlessly switches to the other power supply without interruption. The redundancy module ensures the fail-safety of the DC power supply for the circuit. The internal circuitry reduces power loss, thereby increasing the lifespan of the components, which is crucial for reliability.
