anidees AI-7BW ATX Cube

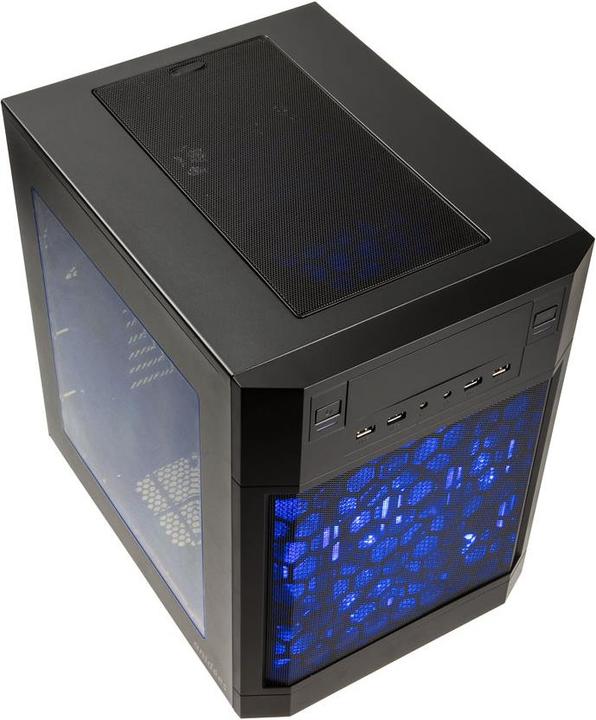

The Anidees AI-7, offered here in the black version with a window in the side panel (AI-7BW), is a cube case that is not limited to the common Micro-ATX and Mini-ITX motherboard form factors typically associated with this case category.

Instead, the black Anidees cube accommodates ATX boards as well as small form factor boards, combining the advantages of the cube design with the installation options for standard-sized, powerful hardware in the AI-7.

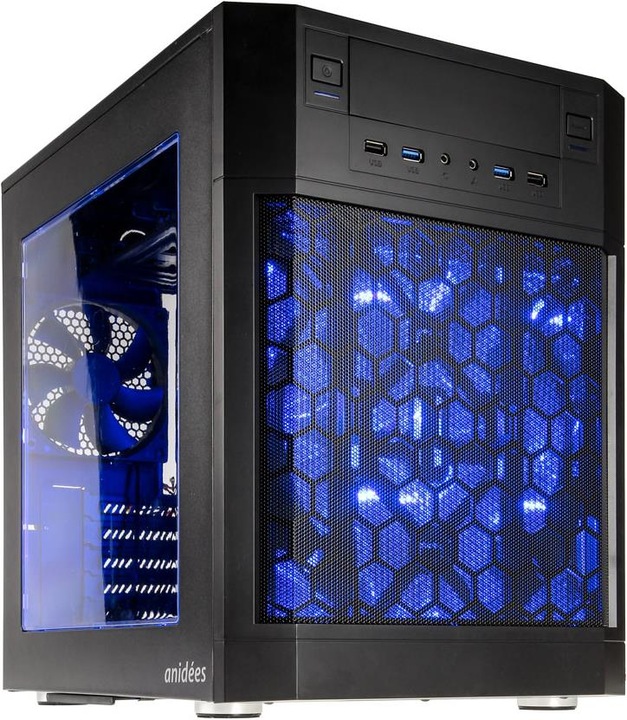

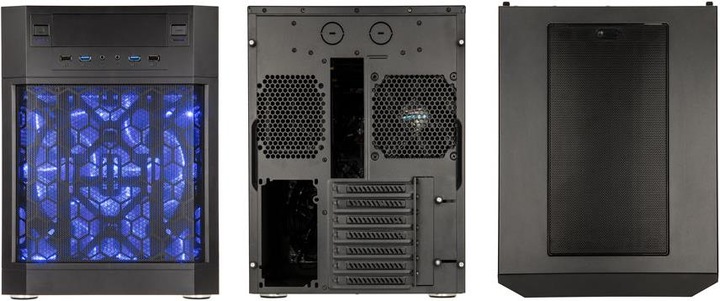

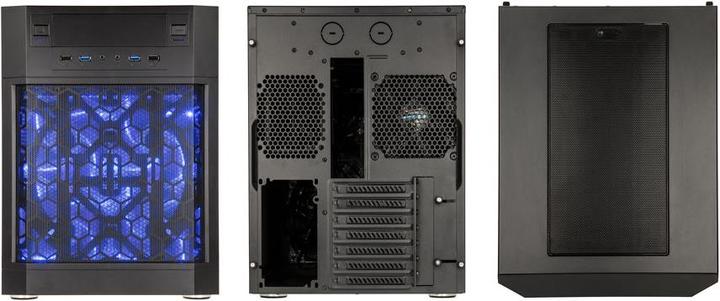

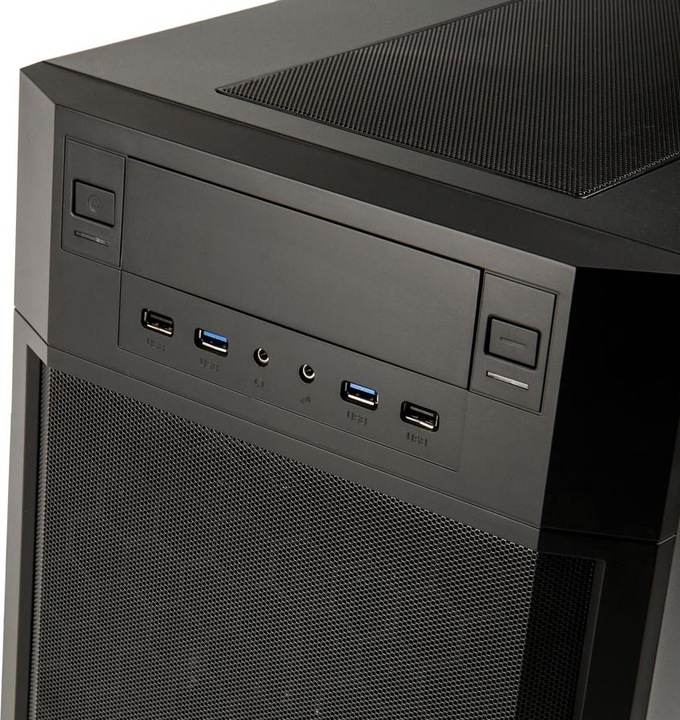

The front features a symmetrical design, dominated by a wide field of black mesh in the lower area, illuminated in blue during operation by the four 120 mm fans installed behind it with their LEDs. This larger width allows for fans to be installed in two rows side by side. An optional 200 mm fan can be used, and there is space for two dual radiators in 240 format.

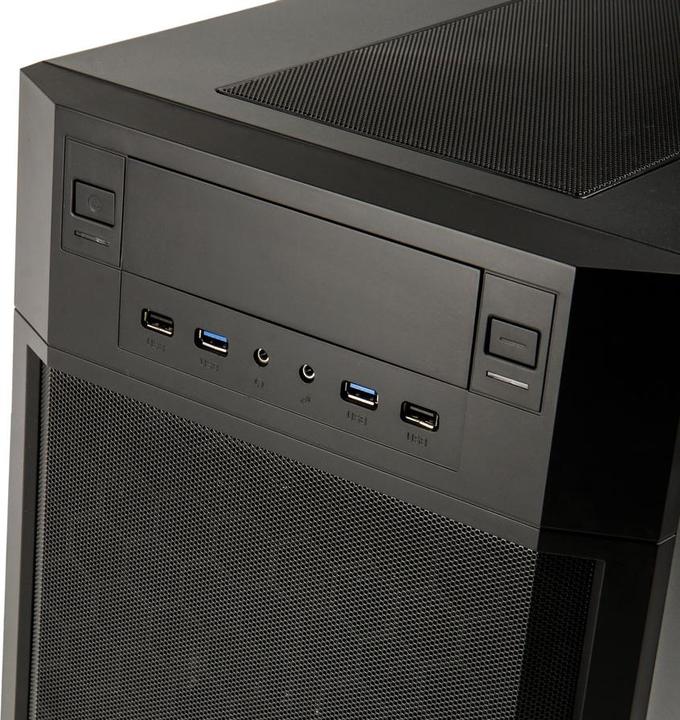

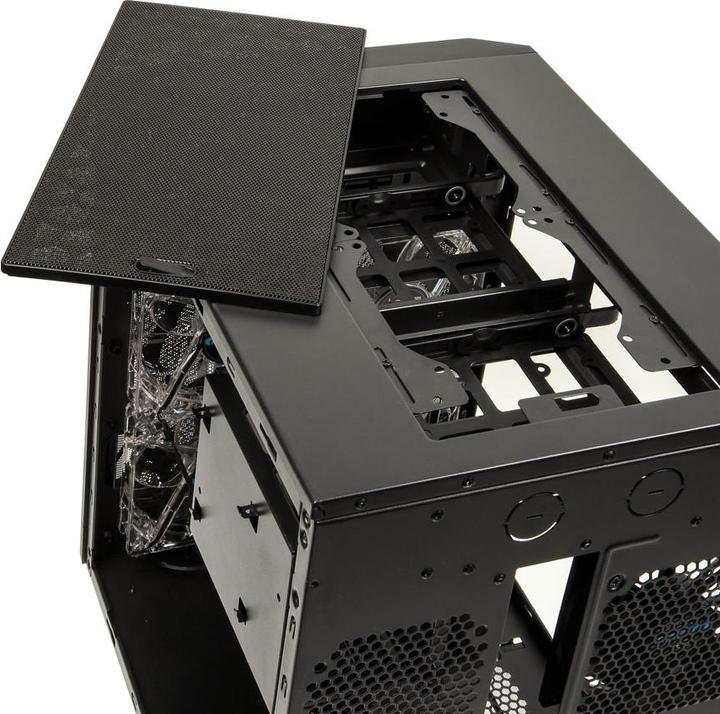

The lid can accommodate either two additional 140 or 120 mm heat exchangers or a 240 mm heat exchanger. However, if the latter option is chosen, the external 5.25-inch slot and two of the four 3.5/2.5-inch drive bays located directly below it cannot be used. Inside the Anidees AI-7, the ATX cube offers two areas separated by the motherboard tray, which is not centered but shifted to the right.

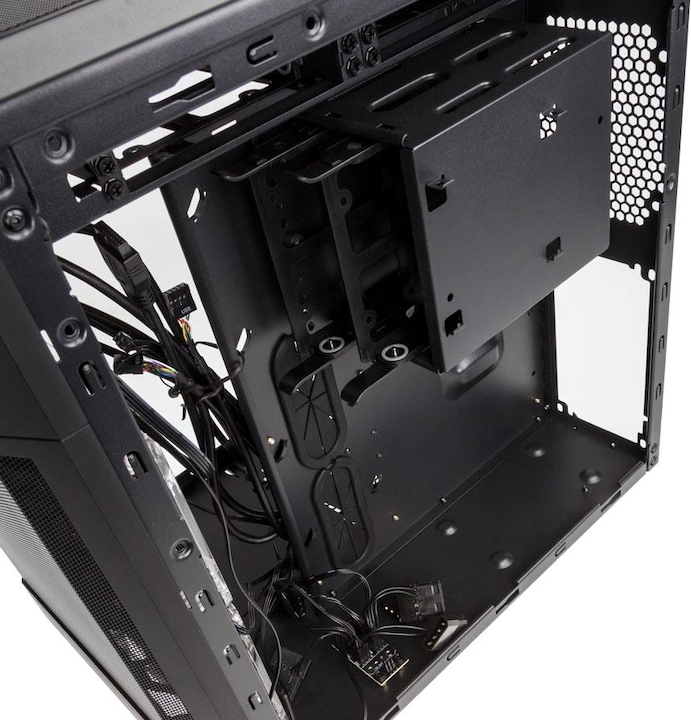

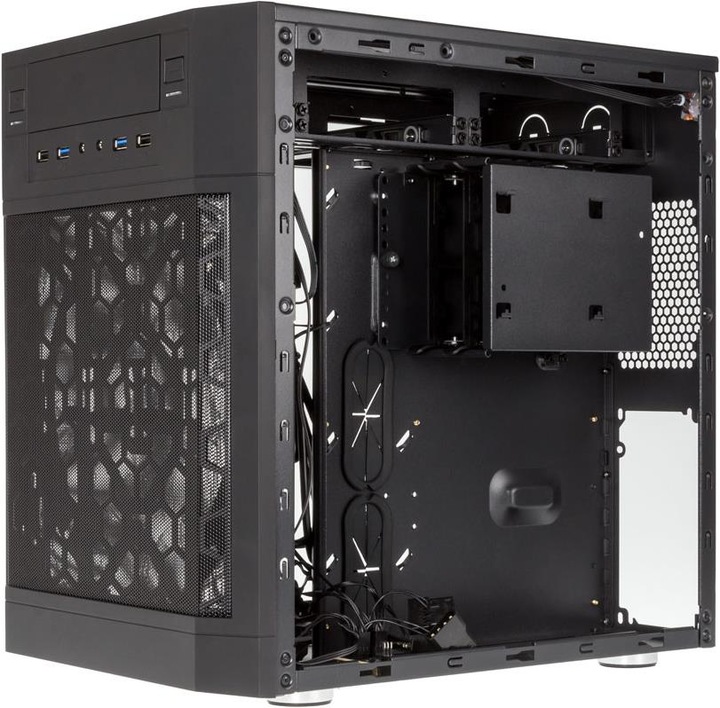

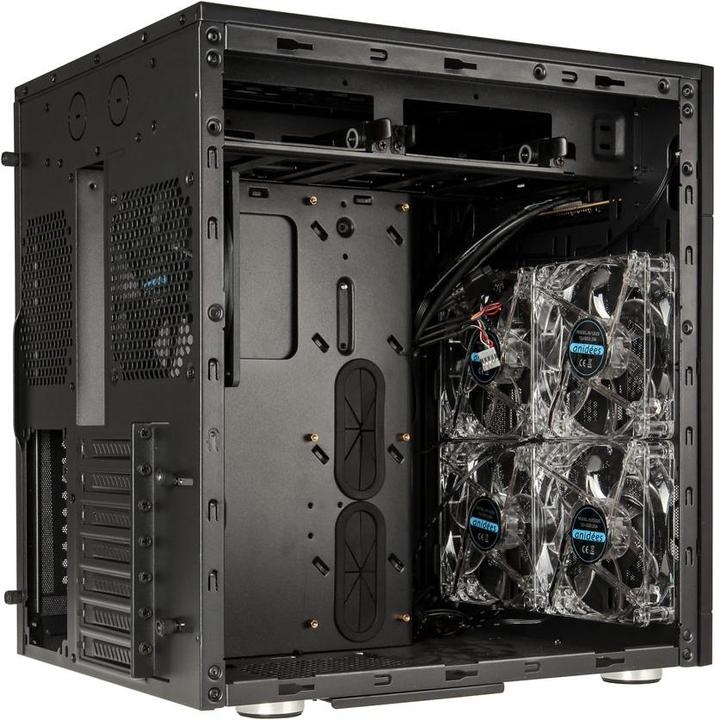

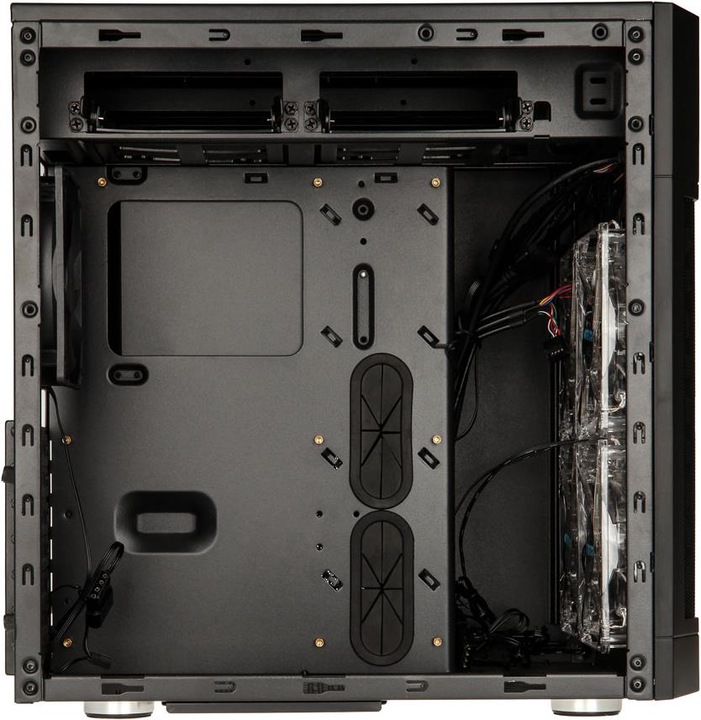

Looking through the window on the left, you'll find a more spacious chamber where the motherboard, processor cooler (up to 16.5 cm), graphics card (up to 34.8 cm), and corresponding additional plug-in cards can be installed. The up to 20 cm long ATX power supply unit and two additional 3.5 or up to three 2.5-inch drives are thermally separated to the right of the tray. There is also a generous 9.5 cm of space for cable management, with cables able to be routed through rubberized openings.
