Anel NET-PWRCTRL PRO - 8 outlets controlled over Internet / Ethernet, 2.3KW

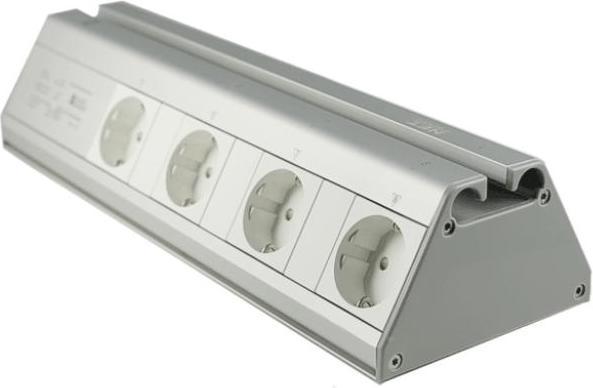

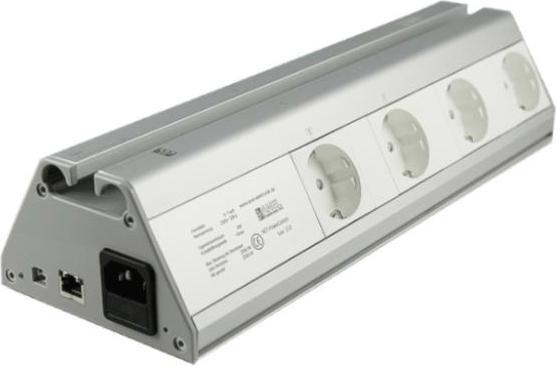

ANEL-Electronics NET-PwrCtrl PRO

8 independently controlled sockets via the Internet/Ethernet using a web browser. A web server in the power strip communicates with the network.

Control from the Internet (worldwide). Automatic detection in the network (DHCP, Zeroconf). Automatic time setting from an NTP server. Access via hostname or IP (hostname = device name). Free choice of HTTP port (80), allowing multiple devices to be accessible from the Internet. 8x 4 timers + 8x random timers. A network device can be pinged, and if it does not respond, it can be disconnected from the power supply for a configurable time. State changes are reported via email. Save and restore configuration. Automatic activation of sockets after a restart (power failure) or restoration of the state prior to the failure. Sockets can be individually locked. No software (other than a web browser) is needed to control or configure the strip. Usable from any operating system (with a web browser). Additional Windows program for Ethernet control. Multiple power strips can be controlled via a PC. User system for up to 8 users with permission assignment for individual functions. Log of the last 40 events. UDP interface for integration with custom software. Firmware upgrade via Ethernet possible at any time (Ethernet bootloader). No standby, no power consumption: devices are switched off from the network. Sturdy aluminum housing, child safety in the sockets, cable channel.

Control

Via the network (Internet) from the browser: NET-PowerControl. Software and network: NET-PwrCtrl program screenshots. Via USB using software: USB-PwrCtrl program screenshots. DLL interface specifications.

Power supply: 230 V~ 50 Hz. Cable length: 1.5 m. Power consumption: 3.9 W. Total power of all outputs: 2300 W. Dimensions: L 350 x W 120 x H 76.
