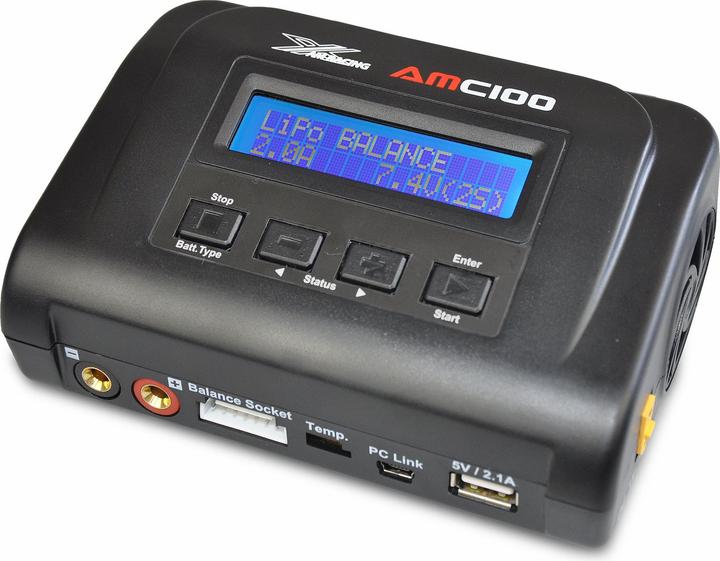

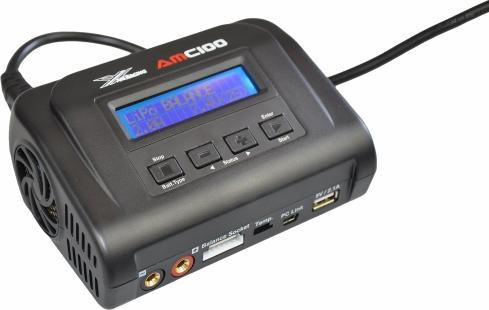

Amxracing AMC100 Multifunction Charger

High-quality, professional 100W charging/discharging device with 220V and 11-18V (XT60) connection. The charger is suitable for the following battery types: Li-Po, Li-Fe, Li-Ion/Li-HV batteries with 1-6 cells, NiCd/NiMH batteries with 1-15 cells, and lead-acid batteries 2-20V (1-10 cells). Additionally, the charger features a connection for a temperature sensor (optional sensor required), a mini USB-PC link, and a 5V / 2.1A USB output. The entire operation of the charger is simple and intuitive. It also provides a very high balancing current for cells that have a drift of nearly 500mA per cell!

Features:
100W / 10A charging power
12V / 220V capable (11-18V DC via optional XT60 connection cable)
USB output
Compact design
Memory for up to 10 battery profiles
Connection for temperature sensor (optional sensor required)
Integrated battery tester
Internal resistance measurement in the device

Technical Specifications:
Length: 135mm
Width: 95mm
Height: 61mm
Input voltage AC: 100-240V
Input voltage DC: 11.0-18.0V
Charging power: max. 100W
Discharging power: max. 10W
Charging current: 0.1-10.0A
Discharging current: 0.1-5.0A
Balancing current: max. 500mA/cell
Lithium batteries: Li-Po, Li-Ion, Li-Fe, Li-HV 1-6 cells
Nickel batteries: NiCd/NiMH 1-15 cells
Lead batteries: 2-20V (1-10 cells)
Battery data storage: 10
Weight: 440g
Memory profiles: 10

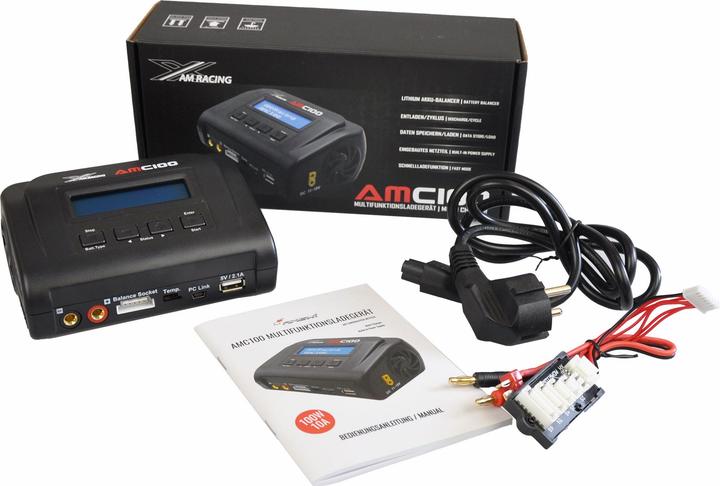

Included in delivery:
AMC100 charger
Power cable
Charging cable with DENS T-plug
Balance board
Detailed manual DE/EN.

Key specifications

Battery type
Li-ion
Charging current (max)
10 A
Charger Equipment
Automatic charge limit setting
discharge current
0.10 A
Charging channels/shafts
1
Max. charging power
100 W
Item number
31957194

General information

Manufacturer
Amewi
Category
RC chargers
Release date
17.10.2022

Charger properties

Charging current (max)
10 A
Battery type
Li-ion
Charger Equipment
Automatic charge limit setting
discharge current
0.10 A
Discharge capacity max.
10 W
Charging channels/shafts
1
Max. charging power
100 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Balance board, Charger AMC100, Charging cable with DENS T-plug, Detailed instructions DE/EN, Power cord

Product dimensions

Length
13.50 cm
Width
9.50 cm
Height
6.10 cm
Weight
440 g
