Name: Ryzen Threadripper PRO 3955WX
Brand: AMD
SKU: 14697597
Rating: 5 (1 reviews)

adventCalendarEnabled

hasTrustLevelLowAndIsNotEProcurement

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

adventCalendarPreviews

alternateLinksByPath

currentAuctionEvent

AMD Ryzen Threadripper PRO processors offer up to 64 cores for multi-threaded simulation and rendering. They also feature a high frequency for workloads with fewer threads. With this combination, AMD Threadripper PRO processors can handle even the most demanding design projects.

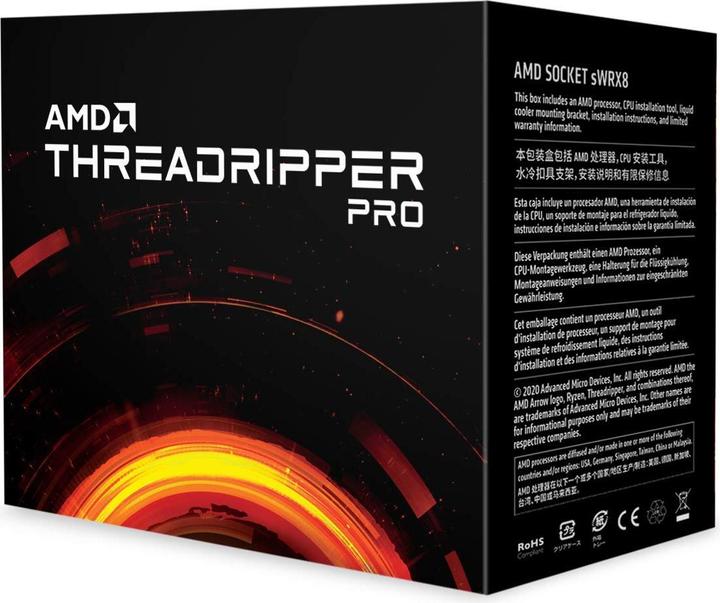

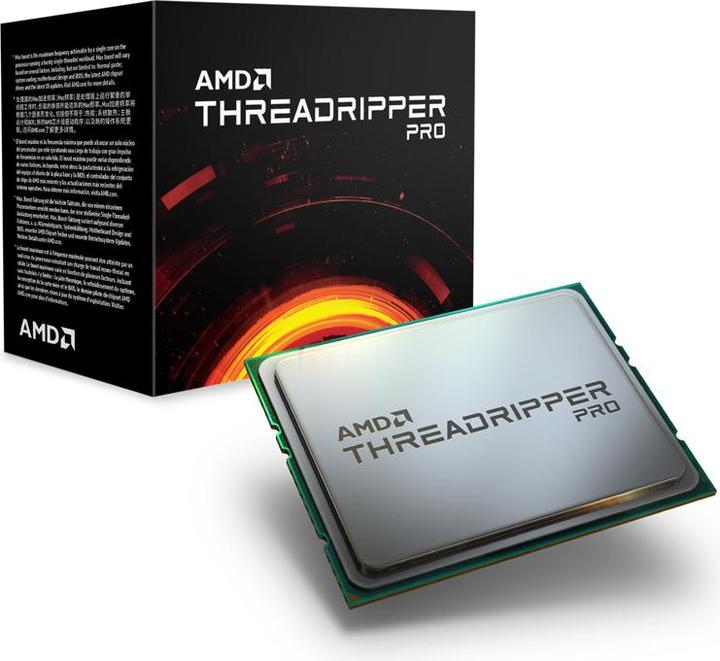

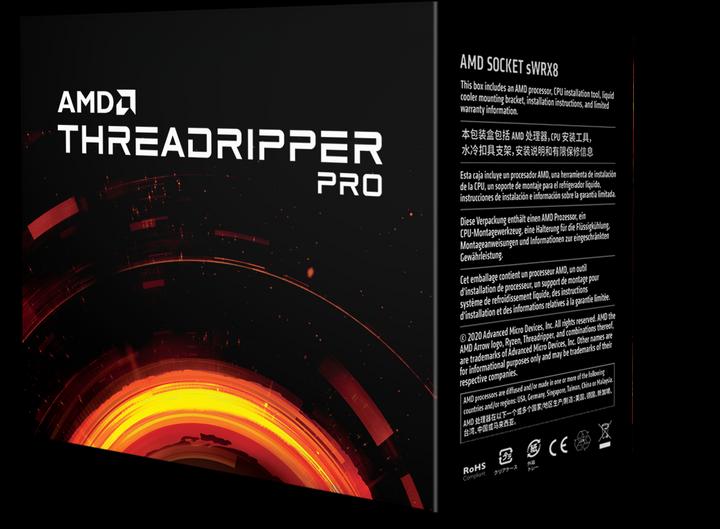

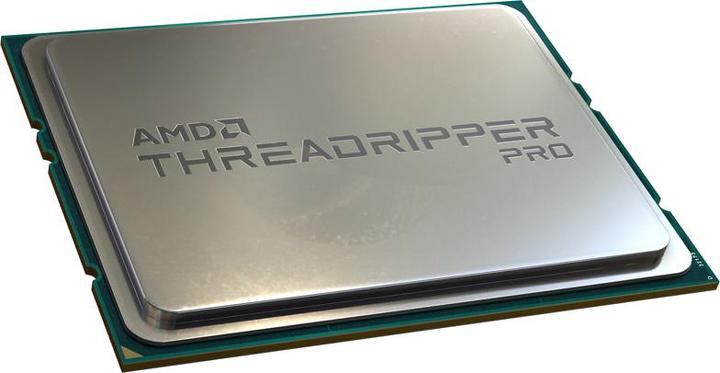

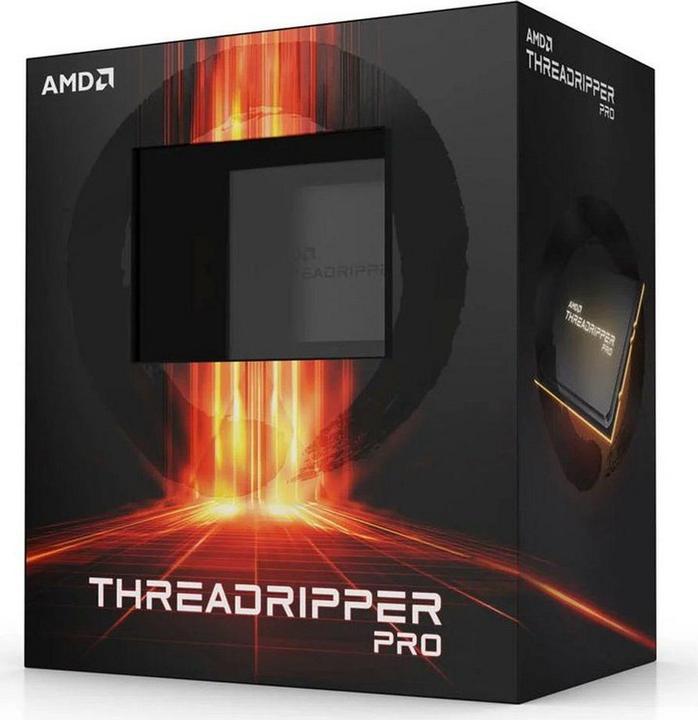

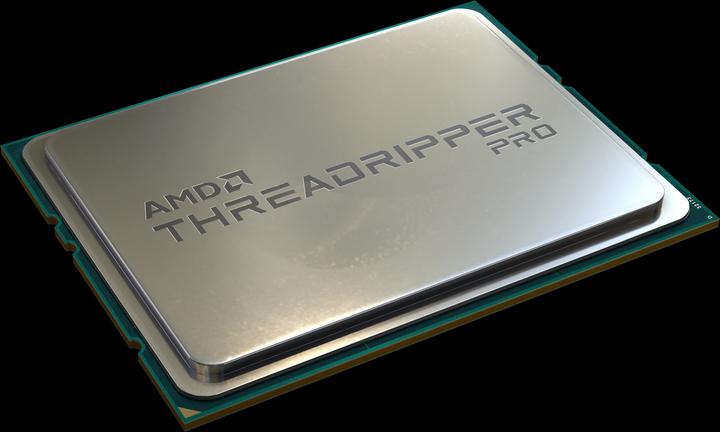

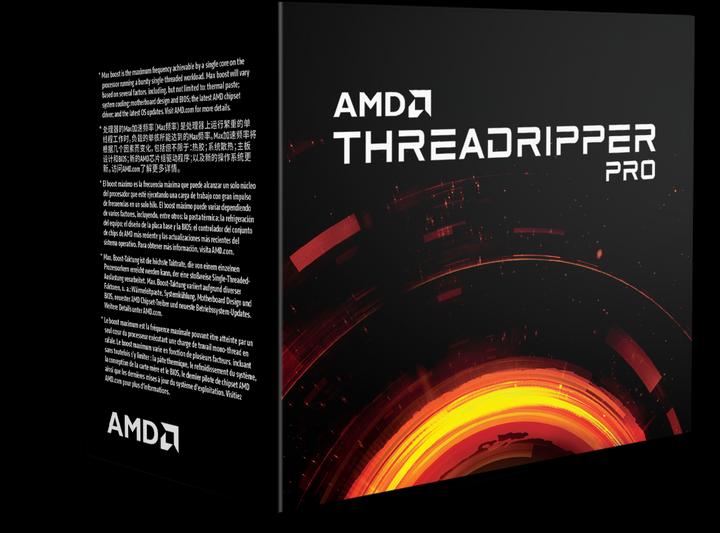

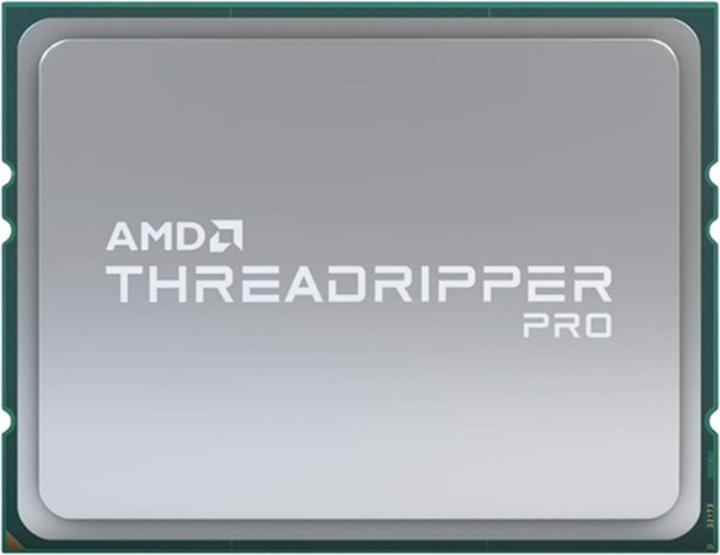

Actual product image AMD Ryzen Threadripper PRO 3955WX (sWRX8, 3.90 GHz, 16 -Core)

Key specifications

Processor family

Number of processor cores

A multi-core processor (or chip-level multiprocessor, CMP) combines two or more independent cores (normally a CPU) into a single package composed of a single integrated circuit (IC), called a die, or more dies packaged together. A dual-core processor contains two cores, and a quad-core processor contains four cores.

Number of threads

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

L3 Cache

Another issue is the fundamental tradeoff between cache latency and hit rate. Larger caches have better hit rates but longer latency. To address this tradeoff, many computers use multiple levels of cache, with small fast caches backed up by larger slower caches.

Multi-level caches generally operate by checking the smallest Level 1 (L1) cache first; if it hits, the processor proceeds at high speed. If the smaller cache misses, the next larger cache (L2) is checked, and so on, before external memory is checked.

As the latency difference between main memory and the fastest cache has become larger, some processors have begun to utilize as many as three levels of on-chip cache.

Item number	14697597
Manufacturer	AMD
Category	Processors
Manufacturer no.	100-100000167WOF
Release date	2.3.2021

Processor family	Ryzen Threadripper
Socket	sWRX8
AMD Core	Ryzen
Clock frequency	3.90 GHz
Max. turbo clock rate	4.30 GHz
Number of processor cores	16 -Core
Number of threads	32
Lithography	7 nm
Max. TDP	280 W
L1 Cache	1024 kB
L2 Cache	8000 kB
L3 Cache	64 MB
PCI express version (max.)	4
Processor design	64-bit

Memory channels	Octa-Channel
Memory type	DDR4-RAM

Length	13 cm
Width	12 cm
Height	8 cm
Weight	358 g
