Alutruss DECOLOCK DQ3-S500 3-point crossbar sw

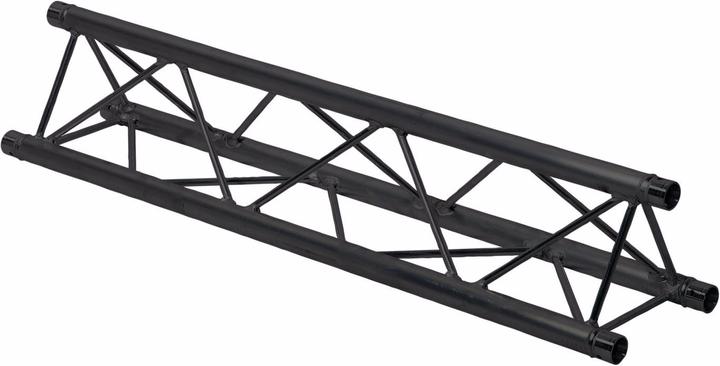

DECOLOCK DQ3 3-Point Truss System

The DECOLOCK DQ3 system is a 3-point truss system made of aluminum, connected by three conical connectors, pins, and clips. The advantage of conical connectors is that they provide a force- and form-fitting connection with the tube, ensuring maximum load capacity. The Quick-Lock system allows for quick, efficient, and visually appealing assembly for frequent setup and takedown.

The three tubes are made from 35 mm aluminum with a wall thickness of 2 mm, offering sufficient load capacity while maintaining a low weight. The braces have a diameter of 10 mm with a wall thickness of 2 mm, giving the system a decorative appearance. DECOLOCK enables compact installations with low weight, suitable for use in shop windows, business decorations, exhibitions, interior design, trade fair stands, shop construction, as well as in nightclub and theater settings.

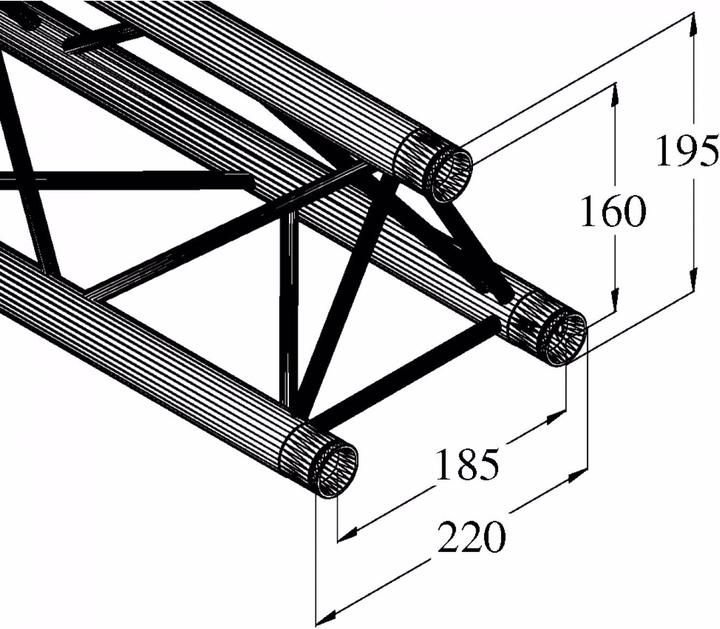

DECOLOCK is primarily designed for decorative installations but is also suitable for both temporary and permanent structures due to its aesthetic appearance. Key benefits of this system include its compact design with external dimensions of 220 mm or 195 mm, low weight, optimal strength, and easy, quick assembly.

The documentation for this truss system closely follows the standard SQ P1 - Trusses published by VPLT. The load table, which serves as a calculation basis, can be downloaded before purchase.

Please note: This truss system must never be combined with other systems!

Universal 3-Point Truss System in Lightweight Design

• High-quality aluminum tubes with a diameter of 35 mm
• Easy assembly with Quick-Lock connectors
• Very low weight
• Suitable for trade fair and shop construction
• Includes 1 x connector set
• Tube: 35 mm.
