Alphacool ES front I/O panel with USB 3.0 and cable set for server enclosures

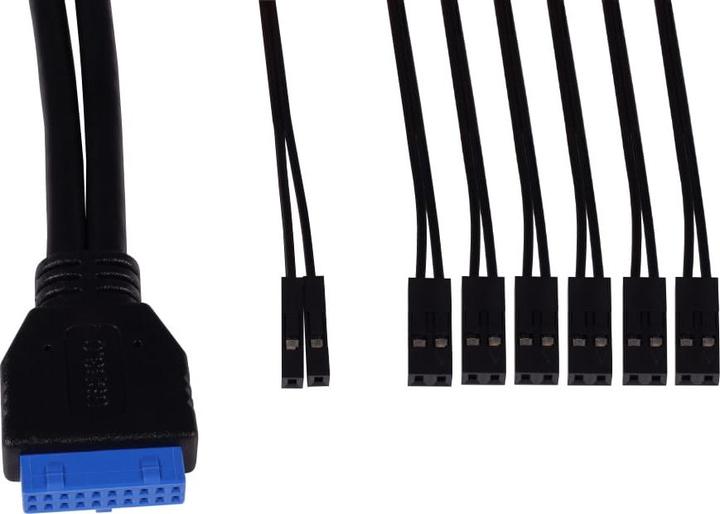

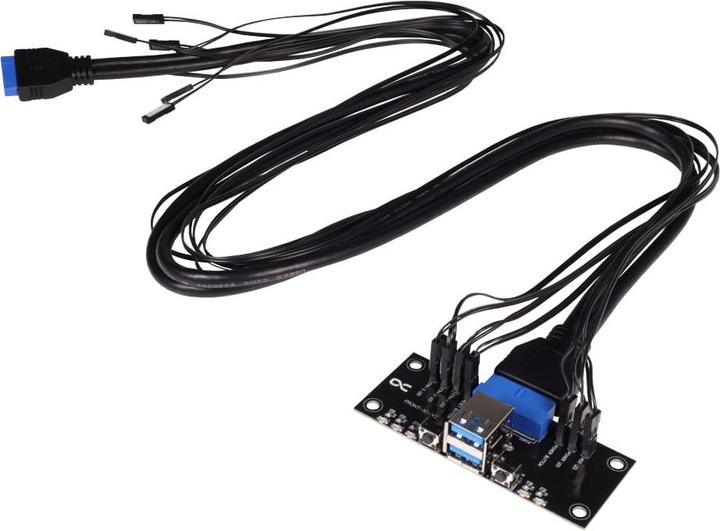

The Alphacool I/O ES Panel with cable set and USB 3.0 is designed for Alphacool server cases. The cable set consists of a total of 8 cables, each 80 cm long, including seven 2-pin cables for three network LEDs, a power LED, an HDD LED, as well as power and reset switches. A connection cable with a 19-pin header for fast USB 3.0 is also included.

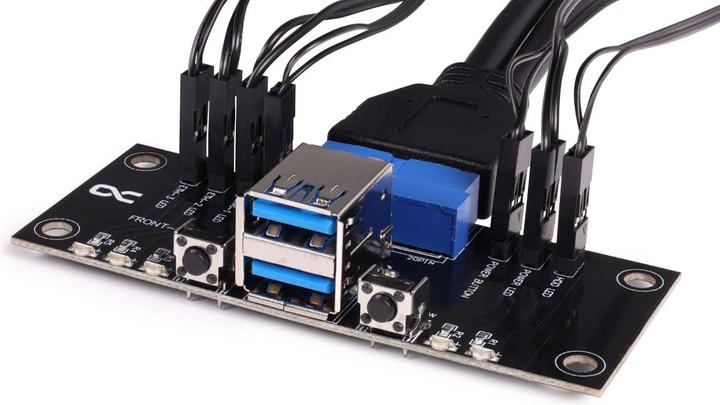

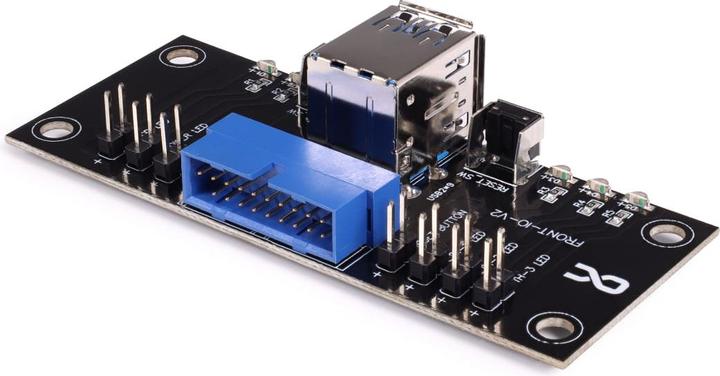

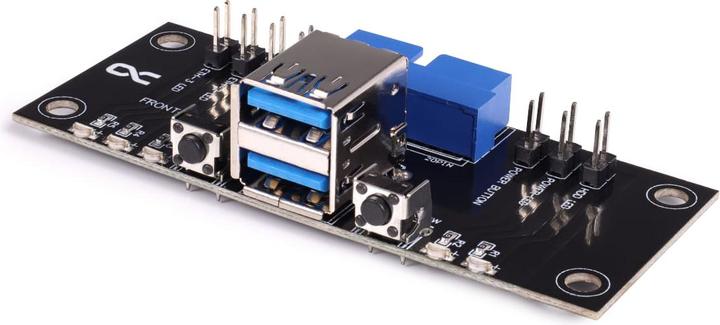

The Alphacool Front I/O ES Panel is a practical solution for use in server cases ranging from 1U to 4U. It is equipped with power and reset switches and features two USB 3.0 ports to provide additional connectivity options. To effectively monitor server functions, various status LEDs are integrated on the board. There are three connections for network LEDs, one each for the HDD and power LEDs, and one connection each for the power and reset switches. All LEDs and switches are connected via 2-pin connectors on the board.

The board can be secured with 4 screws. The mounting holes have an inner diameter of 3.5 mm and are arranged in a rectangle with distances of 74 mm x 24 mm (measured from the center).

Technical specifications:

• Dimensions of the board (L x W x H): 82 x 34 x 20 mm
• Distances of mounting holes: 74 x 24 mm
• Inner diameter of mounting holes: 3.5 mm
• Cable length: 80 cm
• USB standard: 3.0
• Weight (without cable): 15 g
• Weight (with cable): 115 g
• Color: black.
