Product details

Alphacool's Core 140mm is a quiet and efficient fan with a wide speed range of up to 2500 RPM. The fan, which can be controlled via PWM signal, is not only suitable for use on CPU coolers or radiators. Thanks to its excellent performance metrics (airflow and static pressure), it can also be used as a case fan. The dual-bearing fan axis ensures smooth operation, providing a long lifespan and quiet performance. If you're looking for a powerful fan without aRGB lighting, the Alphacool Core 140mm is the perfect choice!

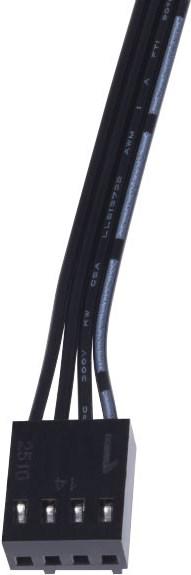

Connections: The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long, allowing the fan to be connected directly to the motherboard or a dedicated controller without the need for additional adapter cables or extensions.

Speed Range: Through the 4-pin PWM connector, the fan can be regulated from 0 to 2500 RPM. At maximum speed, it provides an airflow of 115.56 CFM combined with a high static pressure of 3.96 mm/H2O. This makes the fan ideal for mounting on water cooling radiators or for case ventilation.

Technical Specifications:
Dimensions (L x W x H): 140 x 140 x 25 mm
Material: Plastic (PBT UL94V-0)
Bearing Type: Two Ball Bearing
Rated Voltage: DC 12V
Operating Voltage: DC 7-14V
Starting Voltage: 7V
Rated Current: 0.4 (Max: 0.5) A
Rated Power: 4.8 (Max: 6.00) W
Rated Speed: 0 - 2500 RPM ±10%
Max. Airflow: 115.56 CFM
Max. Static Pressure: 3.96 mm/H2O
Noise Level: 43.3 (Max: 45.0) dBA
Lifespan: 70,000 hours at 40 degrees Celsius
Connection: 4-Pin PWM fan control via PWM
Operating Temperature: -10 to +70 degrees Celsius
Other Features: Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22
Warranty: 3 years.

Key specifications

Fan dimension
140 mm
Items per sales unit
1 x
power connector
4-pin PWM
Airflow
196.34 m³/h
Max. noise level
49.90 dB
LED colour
without LED
Item number
36611368

General information

Manufacturer
Alphacool
Category
PC fans
Manufacturer no.
24846
Release date
21.6.2023

Colour

Colour
Black
Exact colour description
Black

Fan properties

Fan dimension
140 mm
PC fan type
PWM fan
Fan type
Standard
Max. Speed
2500 RPM
Max. noise level
49.90 dB
Airflow
196.34 m³/h
Static pressure
3.96 mmH20
LED colour
without LED
Fan bearing type
Double ball bearing

Connections

power connector
4-pin PWM

Power supply

Power consumption (active)
4.80 W
input voltage
12 V
Electric current
0.40 A

Scope of delivery

Items per sales unit
1 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
25 mm
Width
140 mm
Height
140 mm
Weight
200 g

Package dimensions

Length
15 cm
Width
15 cm
Height
3 cm
Weight
188 g
