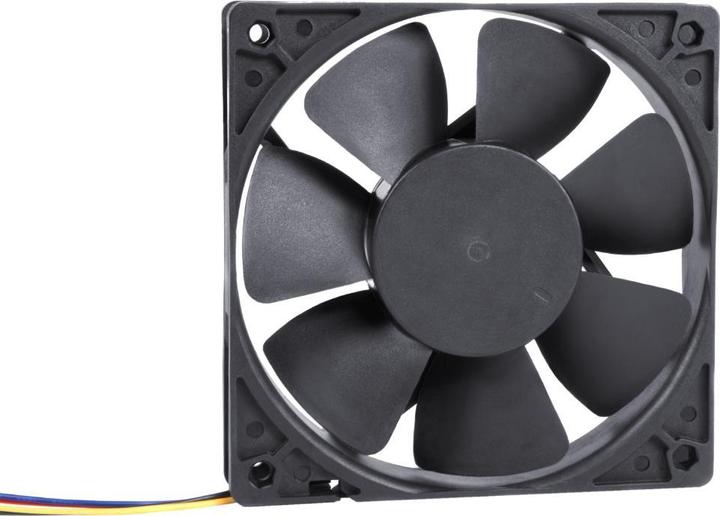

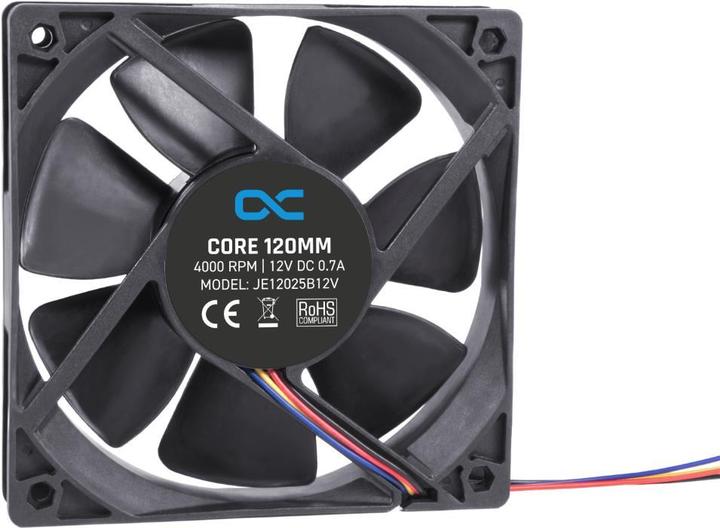

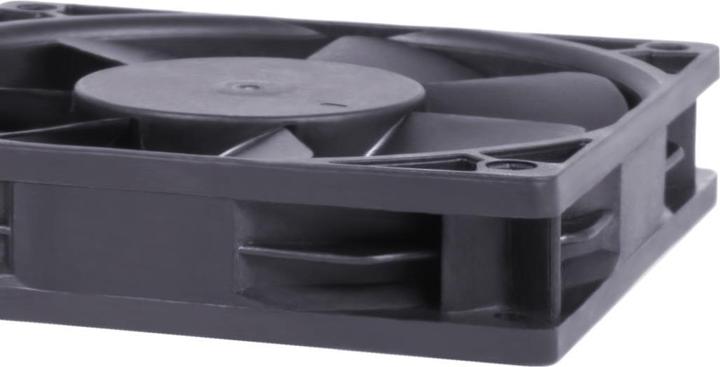

Alphacool Core

Alphacool's Core 120mm is a quiet and efficient fan with a wide control range of up to 4000 RPM. The fan, which is controlled via a PWM signal, is not only suitable for use on CPU coolers or radiators. Thanks to its excellent performance metrics (airflow and static pressure), it can also be used as a case fan. The double-ball bearing fan axis ensures smooth operation, long lifespan, and quiet performance. If you're looking for a powerful fan without aRGB lighting, the Alphacool Core 120mm is the perfect choice!

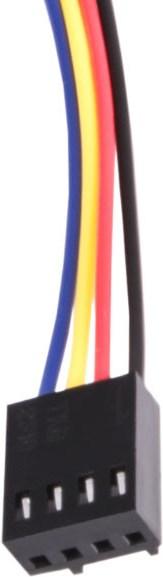

Connections: The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long, allowing the fan to be connected directly to the motherboard or a dedicated controller without the need for additional adapter cables or extensions.

Control Range: Through the 4-pin PWM connector, the fan can be regulated from 0 to 4000 RPM. At maximum speed, it provides an airflow of 119.8 CFM combined with a high static pressure of 12.67 mm/H2O. This makes the fan ideal for mounting on radiators of a water cooling system or for ventilating a case.

Technical Specifications:
Dimensions (L x W x H): 120 x 120 x 25 mm
Material: Plastic (PBT UL94V-0)
Bearing Type: Two Ball Bearing
Rated Voltage: DC 12V
Operating Voltage: DC 7-14V
Starting Voltage: 7V
Rated Current: 0.53 (Max: 0.67) A
Rated Power: 6.36 (Max: 8.04) W
Rated Speed: 0 - 4000 RPM ±10%
Max. Airflow: 119.8 CFM
Max. Static Pressure: 12.67 mm/H2O
Noise Level: 49.5 (Max: 51.5) dBA
Lifespan: 70000 h at 40 degrees Celsius
Connection: 4-Pin PWM fan control via PWM
Operating Temperature: -10 to +70 degrees Celsius
Other Features: Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22
Warranty: 3 years.
