Product details

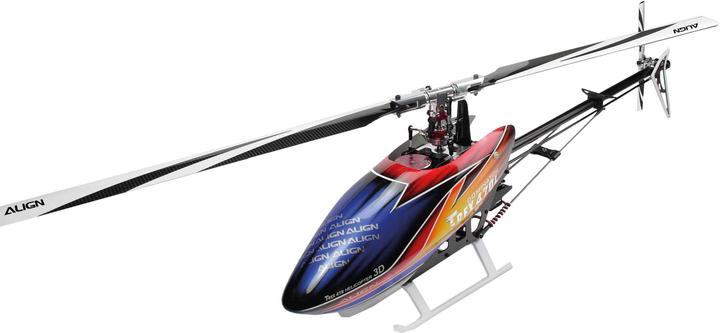

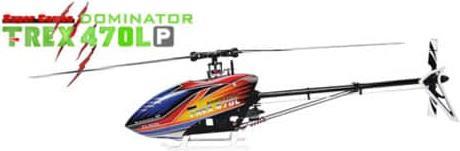

3D Helicopter. 470MX brushless motor with 1800 kV for high efficiency, excellent torque, and low power consumption. RCE-BL50X 50A brushless controller with BEC output of 5 to 8.4 V, supports continuous current of 3 A and peak current of 6 A. Microbeast Plus flybarless system. With rigid drive (torque tube). DS450M HV cyclic and DS455 HV servos support up to 8.4 V. "P" version: rotor head, tail, and parts of the chassis made of plastic. Brushless motor. A brushless motor is an electric motor without brushes, which offers higher efficiency, lower wear, and reduced weight compared to brushed motors. Pitch-controlled helicopters. Pitch-controlled helicopters typically operate at the same rotor speed. To ascend or descend, the angle of attack of the rotor blades is adjusted. The advantage of this method is that the helicopter responds without delays. This allows for demanding aerobatic and 3D maneuvers but requires certain skills. Therefore, pitch-controlled models are mainly suitable for professional pilots. Kit. Kits are model components that need to be assembled and may require additional parts. This allows for various configuration options but also requires some prior knowledge in model building. Difficulty level: Expert. You have experience in model building and possess specific knowledge and tools. You are capable of building your model from individual components, correctly setting it up, and operating it safely.
Level | Advanced, Expert |
Helicopter size | 470 |
Execution | Kit |
Aircraft Equipment | Flybarless system |
Item number | 10085361 |
Manufacturer | Align |
Category | RC helicopter |
Manufacturer no. | RH47E02X |
Release date | 14.12.2018 |
Level | Advanced, Expert |
Flight range | Outdoor |
Helicopter size | 470 |
Execution | Kit |
Control functions | Pitch |
Aircraft Equipment | Flybarless system |
Rotor diameter | 850 mm |
Engine type | Electric motor |
RC Electric motor type | Brushless electric motor |
Battery type | LiPo |
Capacity | 0 mAh |
Power capacity | 0 Wh |
CO₂-Emission | |
Climate contribution |

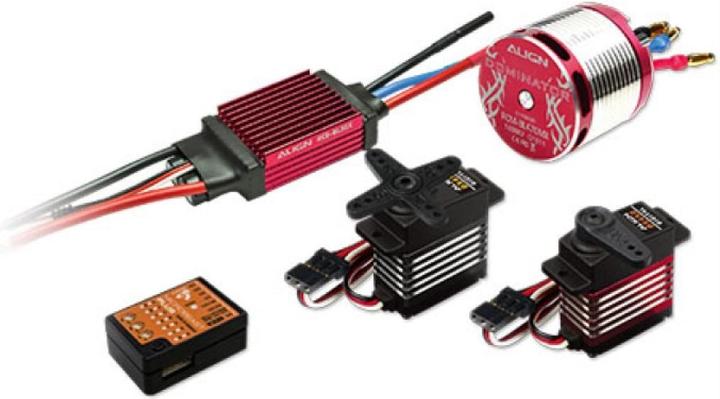

Scope of delivery | 380 mm main rotor blades, 3x DS450M digital servo, 470MX brushless motor, 69 mm tail rotor blades, Construction manual, Digital servo DS455M, RCE-BL50X 50A brushless controller, T-Rex 470LP Dominator Super Combo (MB+) |
Additionally required (not included) | Battery charger, Tools |
Length | 75 cm |
Width | 10.80 cm |
Height | 21 cm |
Weight | 730 g |
Length | 48.40 cm |
Width | 19.40 cm |
Height | 11.80 cm |
Weight | 1.81 kg |
