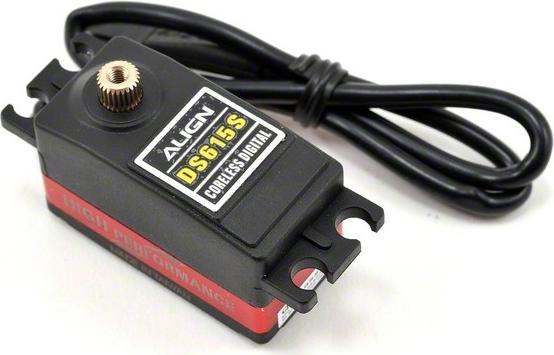

Align DS615S Digital Servo

Special and unique low profile design, suitable for helicopters, RC cars, and airplanes. Using a high efficiency coreless motor, it offers superior performance with increased output torque and faster reaction time, resulting in higher holding power on the swashplate and providing a precise control feel. Its high performance is ideal for RC cars and airplanes. The silicone-insulated magnet wire provides a high-end texture and durable protection for the servo. The coreless motor design ensures fast speed, high efficiency, and low power consumption. Hardened high strength super alloy gears increase the lifetime of the product. The aluminum alloy mid case construction allows for instantaneous heat dissipation, maintaining the servo’s high efficiency. It supports both digital and analog control signals. This powerful and precise servo is suitable for T-REX 550/600 swashplate use, as well as remote control cars and airplanes.

Specification:

• Stall torque: 8.5 kg.cm (4.8V)
• Stall torque: 10 kg.cm (6.0V)
• Motion speed: 0.09 sec/60° (4.8V)
• Motion speed: 0.07 sec/60° (6.0V)
• Rating voltage: DC 4.8-6V
• Temperature range: -20°C to +60°C
• Dimension: 40.1 x 20.1 x 25.5 mm
• Weight: 49 g
• 1520 μs standard band

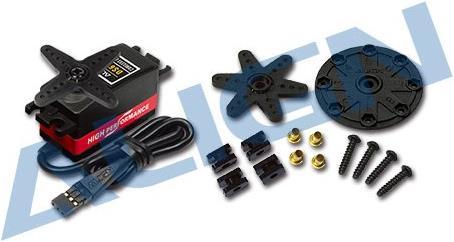

Accessories:

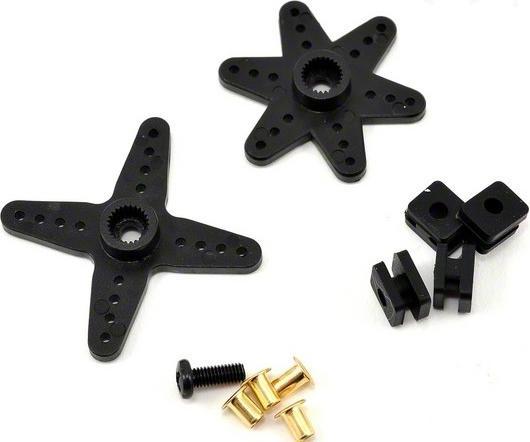

• Servo rudder piece x 2
• Set screw x 1
• Rubber damper x 4
• Brass grommet x 4
• Socket button head tapping screw x 4 (T2.6x12mm)

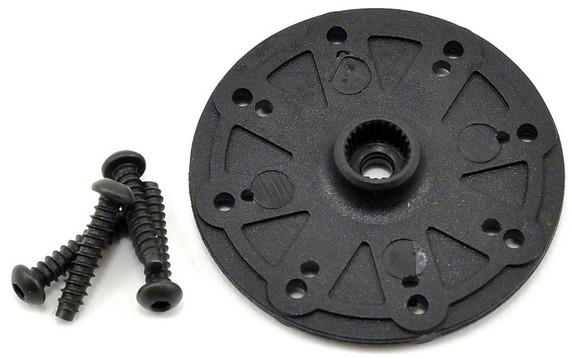

• F Servo horn x 1.
