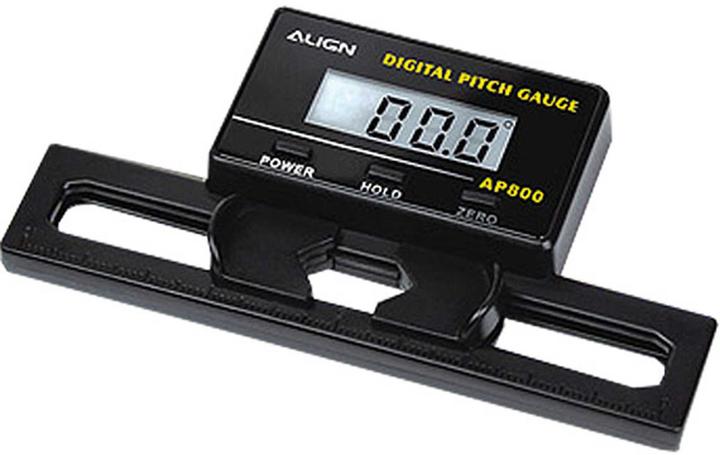

Align digital pitch gauge

Introduction: Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. It auto-detects horizontal level, with results displayed through a high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Features:

• Auto-detecting horizontal level.
• Uses backlighting LCD monitor.
• Zero and lock function.
• Detectable pitch range: -90° to 90°.
• Automatic screen rotation.
• Suitable for 200 to 800 mm main blades.
• Built-in energy saving function. Power shuts down after 3 minutes without any movement.

Specification:

• Body dimension: 108 x 53.9 x 16 mm.
• Suitable blade width: 20 mm to 74 mm.
• Detectable pitch range: ±90°.
• Resolution: 0.1°.
• Battery: 2 x CR 2032 Lithium.
• Weight: 38 g (including battery).
