Alfa Network AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card

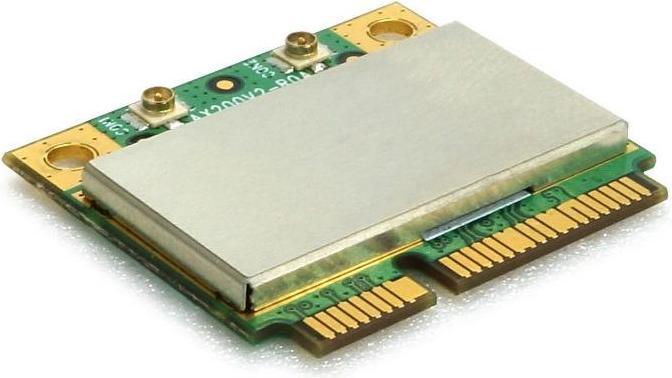

AWPCIE-AX200U - High-Efficiency Intel AX200 Mini-PCIe WiFi6 and BT5 Card

The AWPCIE-AX200U is a half-size Mini-PCIe WiFi6 card based on the high-efficiency Intel AX200.

The AWPCIE-AX200U supports the latest WiFi6 (IEEE 802.11ax) with special features such as OFDMA, 1024QAM, and MU-MIMO. The module also includes a Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac), and operates in the 2.4 and 5 GHz bands.

Thanks to the Mini-PCIe form factor (half size) and IPEX/U.FL antenna connectors, owners of older products can utilize the latest wireless technologies with a data rate of up to 2.4 Gbit/s.

The wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) facilitates seamless module integration.

• Intel Product Code: AX200D2WL (Intel AX200 Cyclone Peak 2 Series)

• IEEE 802.11 Standards: a/b/g/n/ac/ax

• Features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT

• Frequency: 2.4 GHz, 5 GHz

• Data Rate: 2.4 Gbit/s

• Bluetooth: 5.0

• Antenna Connectors: 2x IPEX/U.FL

• Interface: 1x PCIe (WiFi), USB 2.0 (Bluetooth)

• Operating Systems: Microsoft Windows 10, Linux, Chrome OS

• Form Factor: Mini-PCIe half size

• Dimensions: 30 x 26.8 x 2.75 mm.
