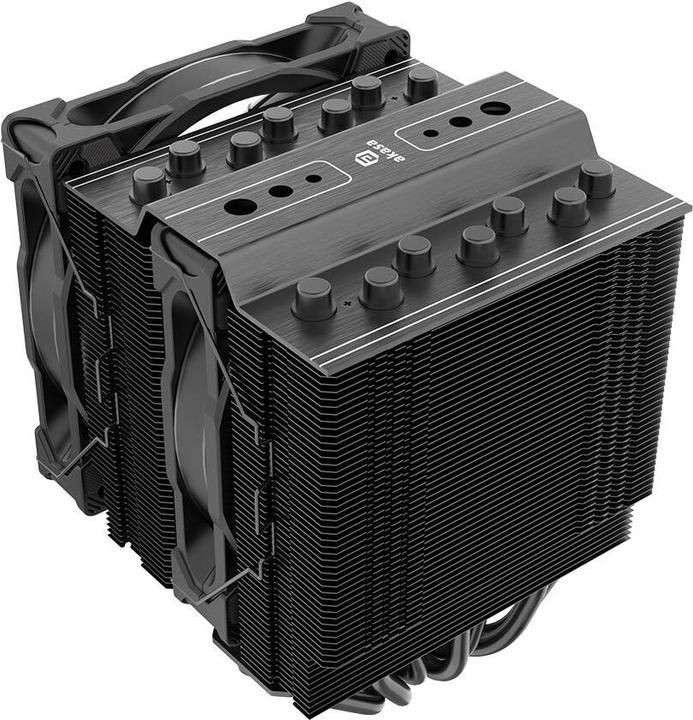

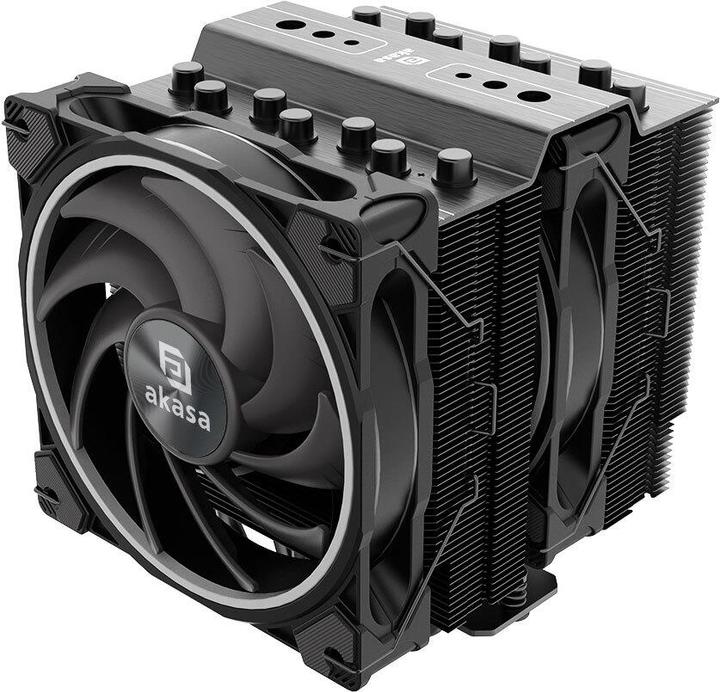

Akasa Soho H7 Dual Tower CPU Cooler, ARGB - 120 mm, black
158 mmOnly 3 items in stock at supplier
Product details
Main features:
Performance:
Recommended placement:
Processor type:
Air cooling:
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, AM4 socket, AM5 socket
Rotation speed (min.): 500 RPM
Rotation speed (max.): 2000 RPM
Noise level (low speed): 14.2 dB
Noise level (high speed): 31.8 dB
Maximum airflow: 52.91 cfm
Maximum air pressure: 1.75 mmH2O
Fan 2 diameter: 12 cm
Fan 2 speed (min.): 500 RPM
Fan 2 speed (max.): 2000 RPM
Fan 2 noise level (low speed): 14.2 dB
Fan 2 noise level (high speed): 31.8 dB
Fan 2 maximum airflow: 52.91 cfm
Fan 2 maximum air pressure: 1.75 mmH2O
Bearing type: Ceramic bearing
Quantity per package: 1 piece(s)
Mean time to failure (MTTF) of the fan: 40000 h
Design:
Product color: Black
Material: Aluminum, Copper, Plastic
Heatsink material: Aluminum
Number of fan blades: 9
Number of heat pipes: 7
Lighting LED: Yes
Lighting colors: Multi
LED connector type: 3-pin
Fan connector: 4-pin
Energy:
Nominal voltage: 12 V
Nominal current: 0.13 A
Thermal Design Power (TDP): 250 W
LED voltage: 0.5 V
Weight and dimensions:
Heatsink width: 13.7 cm
Heatsink depth: 12 cm
Heatsink height: 15.8 cm
Weight: 1.19 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Fan thickness: 2.5 cm
Dimensions of fan 2 (W x D x H): 120 x 120 x 25 mm
Technical details:
Warranty period: 2 year(s)
Scope of delivery:
Mounting kit: Yes
Screws included: Yes
Installation instructions: Yes
CPU bracket(s): Yes.
Socket | LGA 1700 |
Height (with fan) | 158 mm |
Diameter | 120 mm |
power connector | 3-pin |
Number of fans | 2 x |
Item number | 37632956 |
Manufacturer | Akasa |
Category | CPU coolers |
Manufacturer no. | AK-CC4026HP01 |
Release date | 18.8.2023 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Dual Tower |
Fan type | Top-Down Cooler |
Socket | LGA 1700 |
Supported fan sizes | 120mm |
Number of heatpipes | 7 |
Diameter heat pipe | 6 mm |
Materials radiator core | Aluminium |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Length | 158 mm |
Width | 136.80 mm |
Height | 25 mm |
Weight | 1190 g |
Number of fans | 2 x |
Max. Speed | 2 RPM |
Airflow | 89.89 m³/h |
Static pressure | 0.18 Pa |
Max. noise level | 31.80 dB |
LED colour | RGB |
power connector | 3-pin |
Power consumption | 250 W |
Voltage | 12 V |
Scope of delivery | Installation kit |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 136.80 mm |
Length (with fan) | 158 mm |
Height (with fan) | 158 mm |
Weight | 1190 g |
Length | 23 cm |
Width | 16 cm |
Height | 16 cm |
Weight | 1 kg |
