Akasa AK-CCE-7106HP Low Profile CPU Cooler Intel

Compact cases are becoming fashionable again thanks to HTPC and Mini-ITX, along with small CPU coolers. Contrary to the general bigger-is-better trend, the main requirement here is not to achieve maximum cooling performance. Instead, a small size, particularly a minimal height, is sought after. This also leads to a renaissance of the classic flower design, where the fins are arranged in a fan shape around the centrally placed fan.

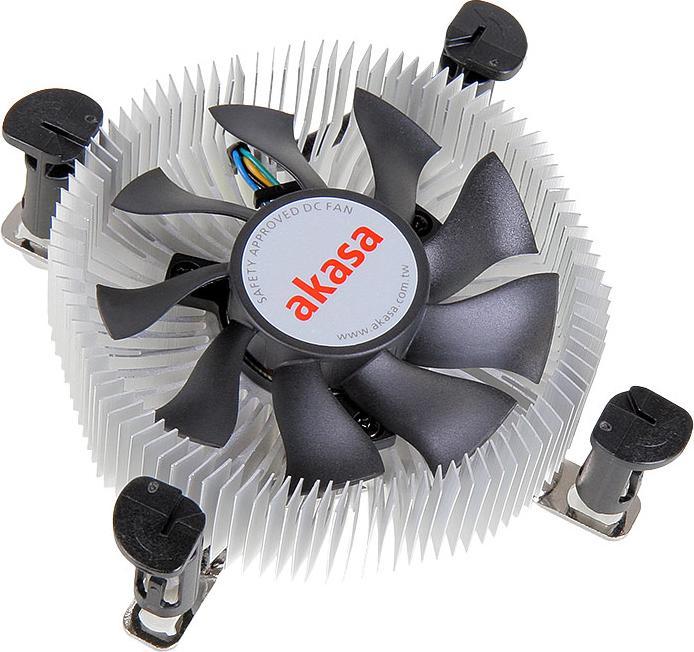

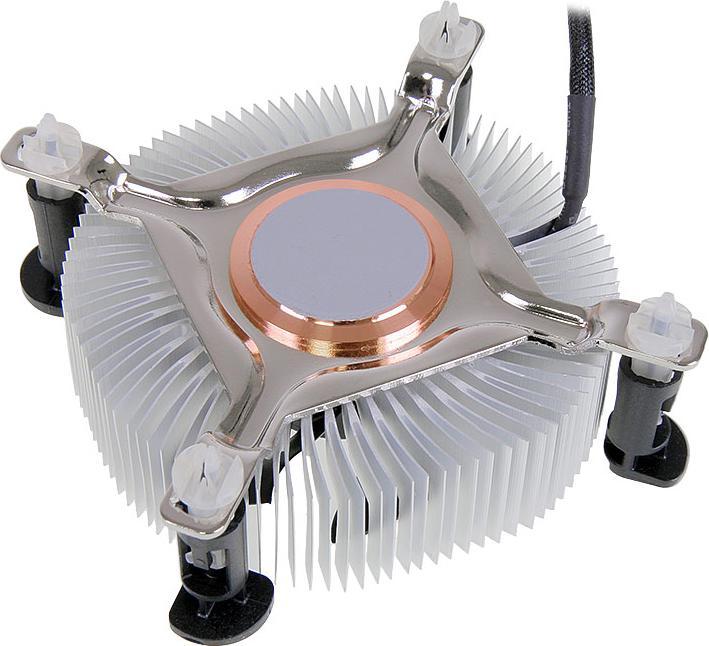

The Akasa 7106HP cooler is designed based on this principle. With a height of less than three centimeters, it is perfect for compact HTPC cases and mini-PCs. The cooler features a copper core that provides direct contact with the CPU and ensures good heat transfer. The heat is then passed on to the aluminum fins and finally dissipated through the airflow.

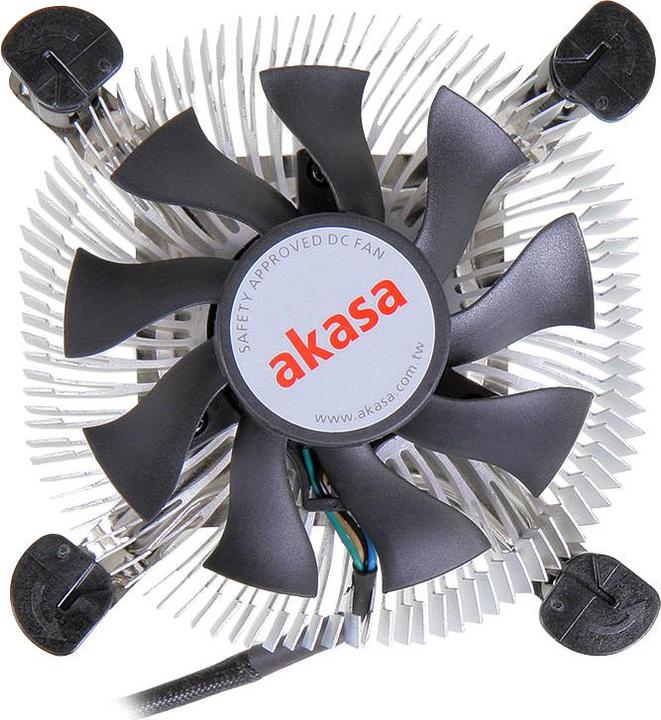

At the center of the heatsink, there is a 74 mm fan mounted. This fan has a modern blade geometry with S-shaped curved blades, achieving a good airflow-to-noise ratio. Thanks to the 4-pin PWM connector, the fan speed can be adjusted between 600 and 3,000 RPM. This results in a minimum noise level of 18.9 dB(A) and a maximum airflow of 57.7 m³/h.

The cooler is approved for CPUs with a TDP of up to 73 watts. Installation is done using push pins on Intel sockets 775, 1150, 1151, 1155, and 1156.

Technical details:

• Dimensions: 87.5 x 29.5 x 85.2 mm (WxHxD)
• Material: Aluminum (fins), Copper (base, core)
• Weight: 205 g
• Fan: 74 x 15 mm (18.9 - 31.9 dB(A), 600 - 3,000 RPM, max. 57.7 m³/h)
• Cooling performance: 73 watts
• Lifespan: approx. 50,000 hours
• Voltage: 12 V

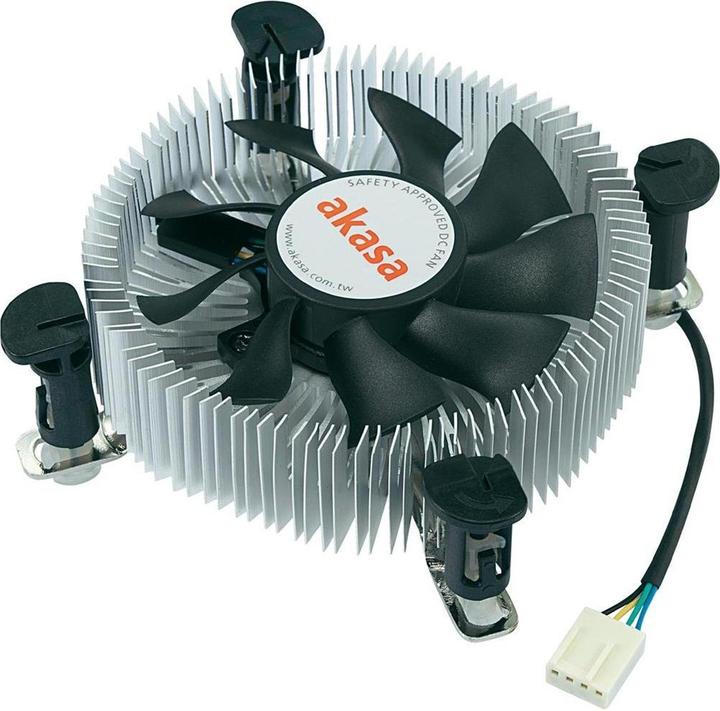

• Connection: 4-pin PWM
• Compatibility: Sockets 775, 1150, 1151, 1155, 1156.
