Akasa AK-CC7401BP01 computer cooling system Processor Air cooler Black 1 pc(s)

30.50 mm
was CHF91.–
Ratings
Delivered between Tue, 22.7. and Wed, 30.7.
Only 1 piece in stock at supplier
free shipping

Product details

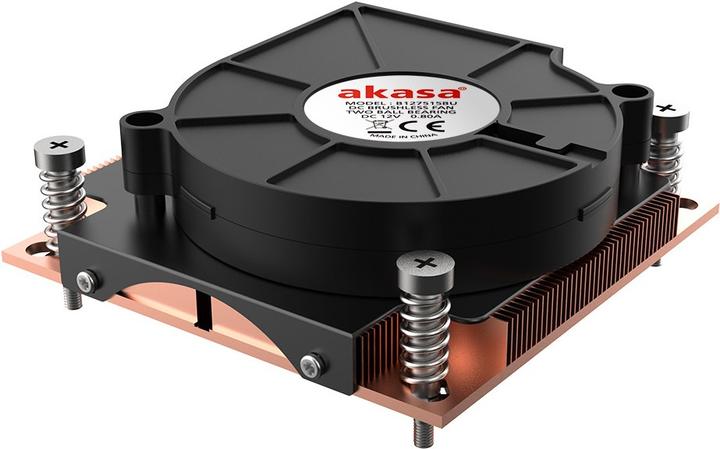

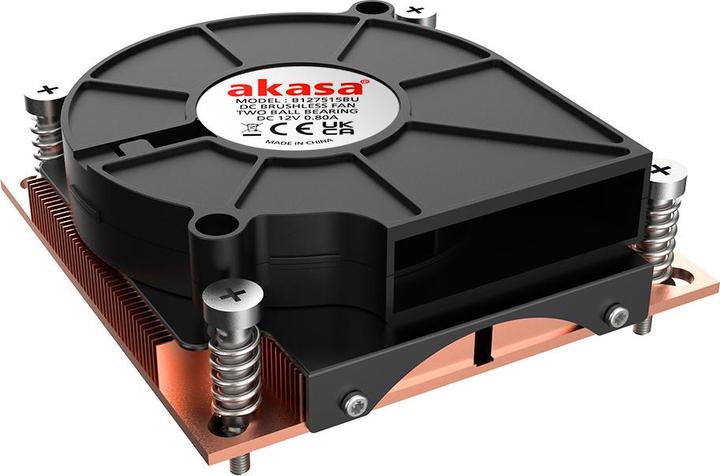

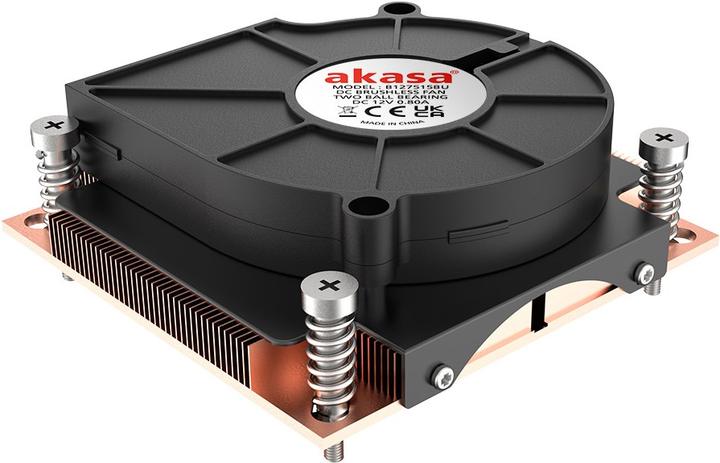

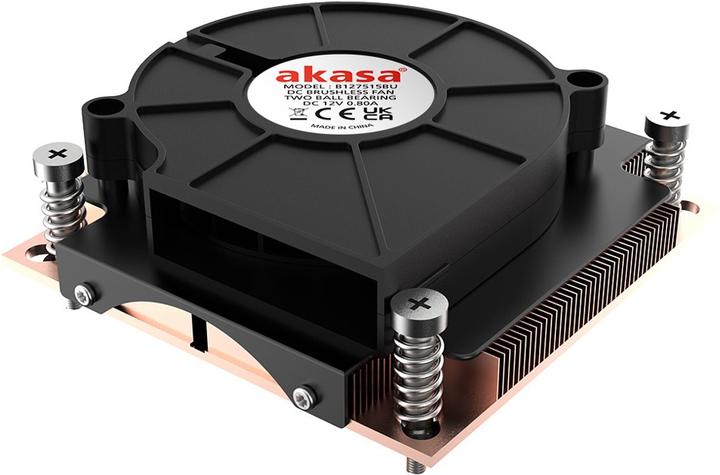

The AK-CC7401BP01 1U Low Profile CPU Cooler is designed for processors with the LGA 1700 socket. Thanks to its bearing, the fan is durable and quiet. The bearing is resistant to contaminants and high temperatures.

The entire heatsink is made of copper, which is in direct contact with the heat spreader of your CPU and also connects to the cooling fins that are fanned out along the sides. This design provides a larger surface area and dissipates the absorbed heat even more effectively.

Easy Installation

With the pre-mounted metal screws, installing the cooler is very simple. It is easily placed over the mounting holes and then screwed to the included metal plate. The top-down design means you don't have to worry about large heatsinks or fans that could get in the way. It is perfect for installation in a 1U server.

Technical Details

  • Dimensions: 88 x 30.5 x 87 mm (W x H x D)
  • Color: Black, Silver, Copper
  • Material: Plastic, Aluminum, Copper
  • Connectors: 1x 4-Pin PWM
  • Noise Level: max. 45.99 dB(A)
  • Fan Speed: min. 1,200, max. 5,500 RPM
  • Airflow: 20.09 m³/h
  • Static Pressure: 20.66 mmH2O
  • Fan Diameter: 75 mm
  • Fan Voltage: 12 V DC
  • Fan Current: max. 0.40 A
  • Compatibility: Intel Socket LGA 1700 1200 / 115X / 775
  • Lifespan: 80,000 hours
  • Package Contents: 1x Akasa AK-CC7401BP01 1U Low Profile CPU Cooler - LGA 1700 Socket, 1x Mounting Plate.

Key specifications

Socket
LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 775
Height (with fan)
30.50 mm
Diameter
75 mm
Number of fans
1 x
Max. TDP
95 W
Airflow
1205.40 m³/h
power connector
4-pin PWM
Item number
22999779

General information

Manufacturer
Akasa
Category
CPU coolers
Manufacturer no.
AK-CC7401BP01
Release date
3.11.2022

Colour

Colour
Black
Exact colour description
Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 775

Heat sink properties

Number of heatpipes
5
Materials radiator core
Copper
Material cooling fins
Aluminium, Copper

Fan dimensions

Diameter
75 mm

Fan properties

Number of fans
1 x
Max. Speed
5500 RPM
Max. TDP
95 W
Airflow
1205.40 m³/h
Max. noise level
45.99 dB
LED colour
without LED
Fan bearing type
Double ball bearing

Connections

power connector
4-pin PWM

Power supply

Power consumption
95 W
Voltage
12 V

Scope of delivery

Scope of delivery
Installation kit

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
88 mm
Length (with fan)
87 mm
Height (with fan)
30.50 mm
Weight
447 g

Package dimensions

Length
11 cm
Width
10 cm
Height
10 cm
Weight
560 g

30-day right of return
24 Months Warranty (Bring-in)
