Akasa AK-CC6608BP01 Low Profile CPU Cooler - Socket LGA 1700, 63.2 mm Height

63.20 mm
was CHF43.–
Ratings
Delivered between Wed, 11.6. and Wed, 25.6.
7 items in stock at supplier

Product details

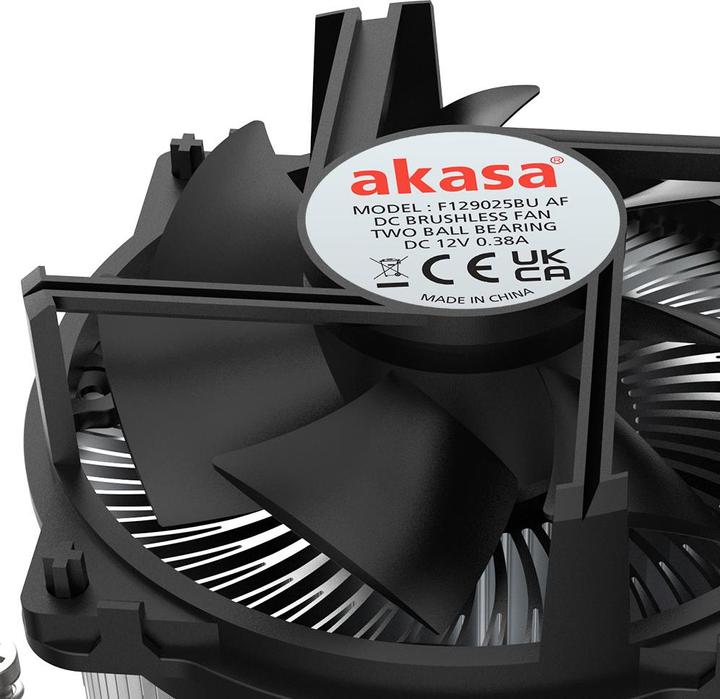

The Akasa AK-CC6608BP01 Low Profile CPU cooler is designed for processors with the LGA 1700 socket. Its dual ball bearing fan ensures durability and operates quietly. The bearing is resistant to contaminants and high temperatures. Additionally, the PWM control allows the fan to run at a pleasant noise level.

The copper core is in direct contact with your CPU's heat spreader and also connects to the circularly arranged cooling fins. This design provides a larger surface area and enhances heat dissipation.

Easy Installation

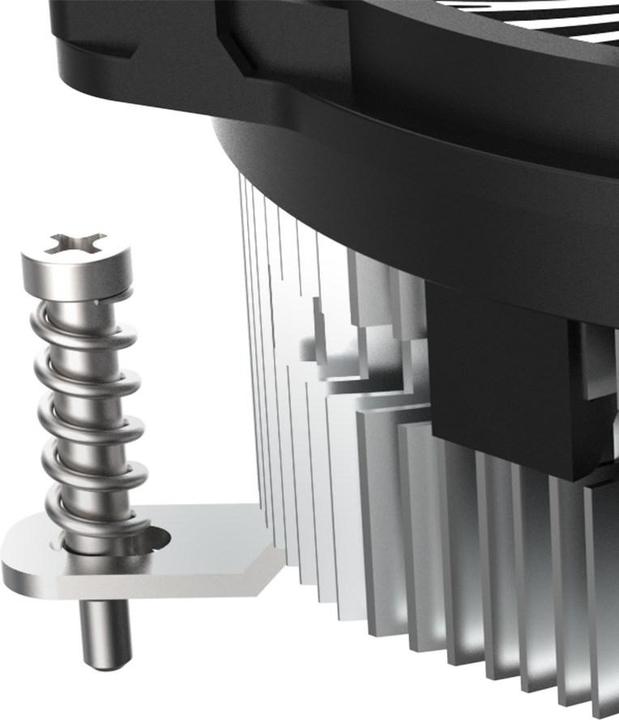

Thanks to the pre-mounted metal screws, installing the cooler is very straightforward. It simply fits over the mounting holes and is then secured with the included metal plate. The top-down design means you don’t have to worry about large heatsinks or fans that could get in the way.

Technical Details

  • Dimensions: 94.8 x 63.2 x 94.8 mm (W x H x D)
  • Color: Black, Silver
  • Material: Plastic, Aluminum, Copper
  • TDP Support: 125 W
  • Connectors: 1x 4-Pin PWM
  • Noise Level: max. 36 dB(A)
  • Fan Speed: min. 500, max. 3,400 RPM
  • Airflow: 69.5 m³/h
  • Static Pressure: 3.81 mmH2O
  • Fan Diameter: 95 mm
  • Fan Voltage: 12 V DC
  • Fan Current: max. 0.26 A
  • Compatibility: Intel LGA 1700 socket
  • Lifespan: 80,000 hours
  • Package Contents: 1x Akasa AK-CC6608BP01 Low Profile CPU Cooler - LGA 1700 socket, 63.2 mm height, 1x mounting plate.

Key specifications

Socket
LGA 1700
Height (with fan)
63.20 mm
Diameter
90 mm
power connector
4-pin PWM
Number of fans
7 x
Item number
23320560

General information

Manufacturer
Akasa
Category
CPU coolers
Manufacturer no.
AK-CC6608BP01
Release date
2.12.2022

Colour

Colour
Silver
Exact colour description
Aluminium, Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
LGA 1700

Heat sink properties

Materials radiator core
Aluminium
Material cooling fins
Aluminium

Fan dimensions

Diameter
90 mm
Length
94.80 mm
Width
94.80 mm
Height
63.20 mm
Weight
412 g

Fan properties

Number of fans
7 x
Max. Speed
3.40 RPM
Airflow
69.50 m³/h
Static pressure
0.39 Pa
Max. noise level
36 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Power consumption
125 W
Voltage
12 V

Scope of delivery

Scope of delivery
1 piece(s)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
94.80 mm
Length (with fan)
94.80 mm
Height (with fan)
63.20 mm
Weight
412 g

Package dimensions

Length
10 cm
Width
10 cm
Height
9 cm
Weight
500 g
