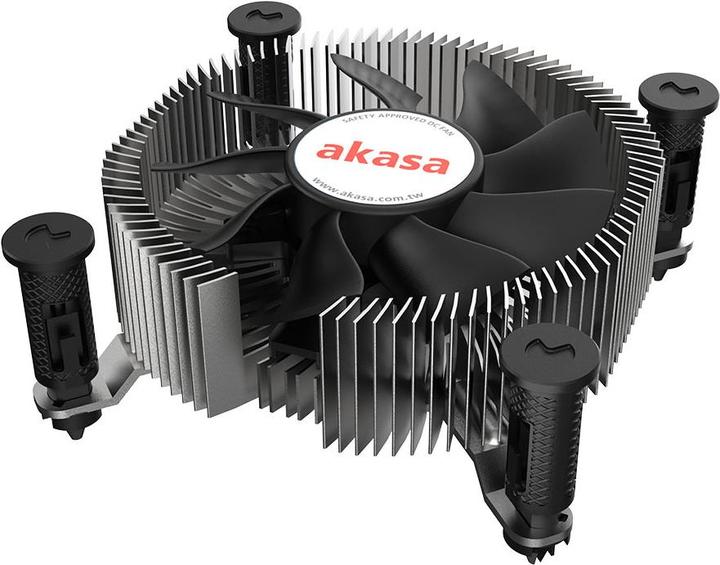

Akasa AK-CC6602HP01 Low Profile CPU Cooler - Socket LGA 1700, 30 mm height

29.92 mm
was CHF40.90
Ratings
BrandMore from Akasa
Delivered between Tue, 14.4. and Fri, 17.4.
10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

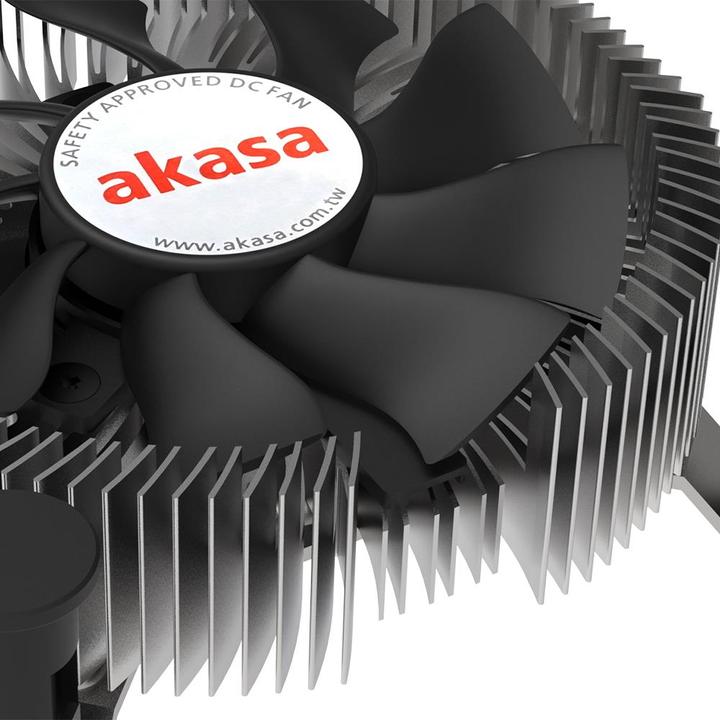

The Akasa AK-CC6602HP01 Low Profile CPU Cooler is designed for processors with the LGA 1700 socket. Its bearing ensures that the fan is durable and quiet. The ball bearing is resistant to contaminants and high temperatures. Additionally, with PWM control, the fan operates at a pleasant noise level.

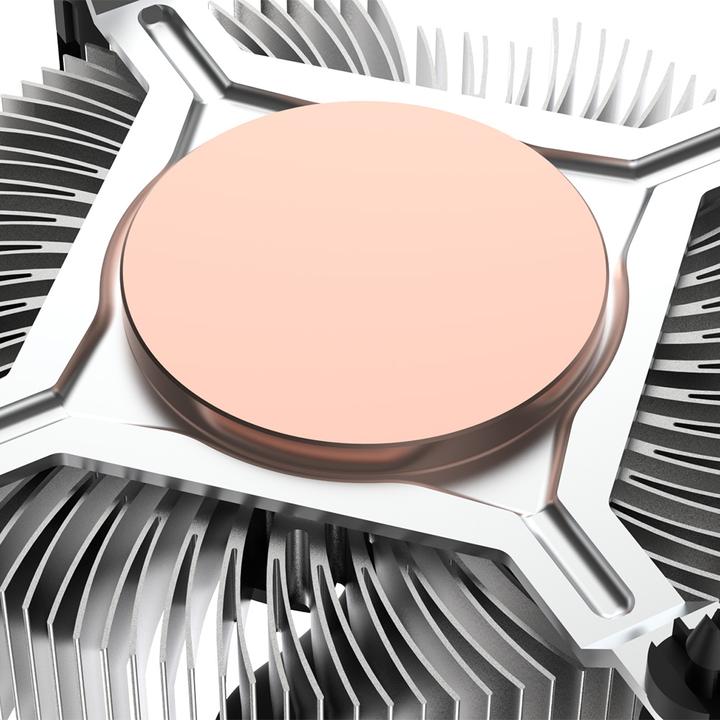

The copper core is in direct contact with the heat spreader of your CPU and also connects to the cooling fins, which are arranged in a circular pattern. This design provides a larger surface area and improves heat dissipation. With a low height of only 30 mm, you can install the cooler in almost any case.

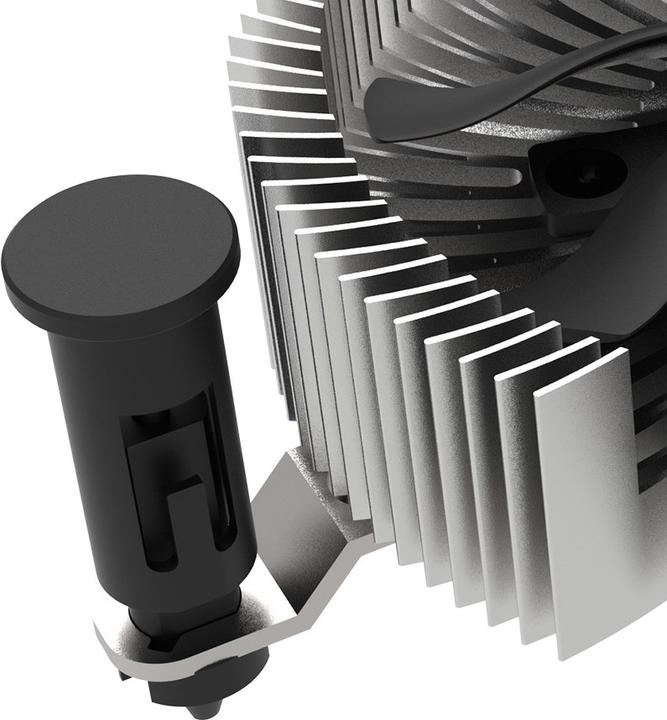

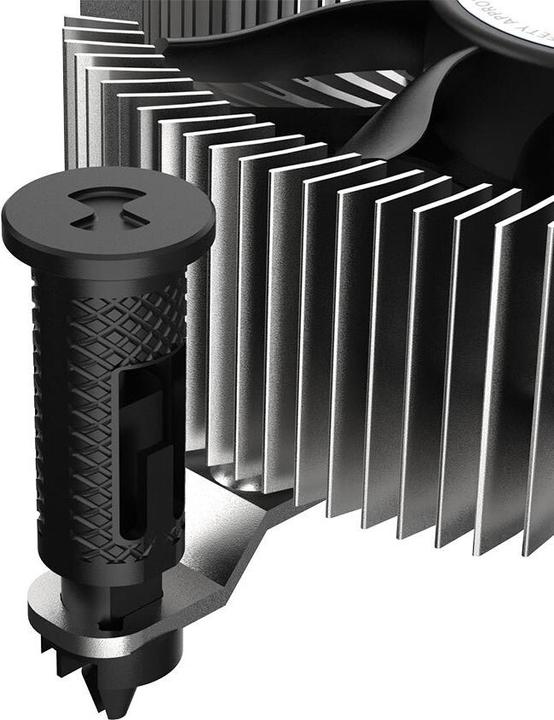

Thanks to the push pins, no tools are required for the cooler's installation. It is simply placed over the mounting holes, and then you need to press it down with a bit of force to secure the pins. The top-down design eliminates concerns about large heatsinks or fans that could obstruct installation.

Technical details:

  • Dimensions: 87.2 x 29.92 x 85.2 mm (W x H x D)
  • Color: Black, Silver
  • Material: Plastic, Aluminum, Copper
  • Connections: 1x 4-Pin PWM
  • Noise level: max. 28.71 dB(A)
  • Fan speed: min. 600, max. 3,000 RPM
  • Fan diameter: 74 mm
  • Fan voltage: 12 V DC
  • Fan current: max. 0.19 A
  • Compatibility: Intel LGA 1700 socket
  • Package contents: 1x Akasa AK-CC6602HP01 Low Profile CPU Cooler - LGA 1700 socket, 30 mm height.

Key specifications

Socket
LGA 1700
Number of fans
1x
Airflow
56.92 m³/h
power connector
4-pin PWM
Height (with fan)
29.92 mm

General information

Item number
23320559
Manufacturer
Akasa
Category
CPU coolers
Manufacturer no.
AK-CC6602HP01
Release date
2.12.2022
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Aluminium, Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
LGA 1700

Heat sink properties

Materials radiator core
Copper
Material cooling fins
Aluminium

Fan properties

Number of fans
1x
Max. Speed
6000 RPM
Airflow
56.92 m³/h
Static pressure
36.87 Pa
Max. noise level
28.71 dB
LED colour
without LED
Fan bearing type
Double ball bearing

Connections

power connector
4-pin PWM

Power supply

Power consumption
73 W
Voltage
12 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
30.38 kg
Climate contribution
CHF 0.72

Product dimensions

Width (with fan)
87.20 mm
Length (with fan)
85.20 mm
Height (with fan)
29.92 mm
Weight
254.50 g

Package dimensions

Length
9.80 cm
Width
9.40 cm
Height
6.80 cm
Weight
288 g
