Akasa AK-CC6601EP01 Low Profile CPU Cooler - Socket LGA 1700

26.92 mm
Ratings
BrandMore from Akasa
Delivered between Tue, 30.12. and Sat, 10.1.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

The features of the Akasa AK-CC6601EP01 Low Profile CPU Cooler at a glance:

  • Low-profile cooler for Intel CPUs with LGA1700 socket
  • Very flat cooler, ideal for SFF systems
  • PWM control in the speed range of 600 to 3,000 RPM
  • For CPUs with a TDP of up to 35 W

Very flat CPU cooler for your SFF system

The Akasa AK-CC6601EP01 is a very flat CPU cooler designed for Intel's Alder Lake processors (LGA1700). With a height of just 26.9 mm, it fits even in the smallest Micro-ATX and Mini-ITX setups or HTPC systems. The cooler, featuring an aluminum heatsink, also looks stylish, making it a great choice for cases where the interior is visible.

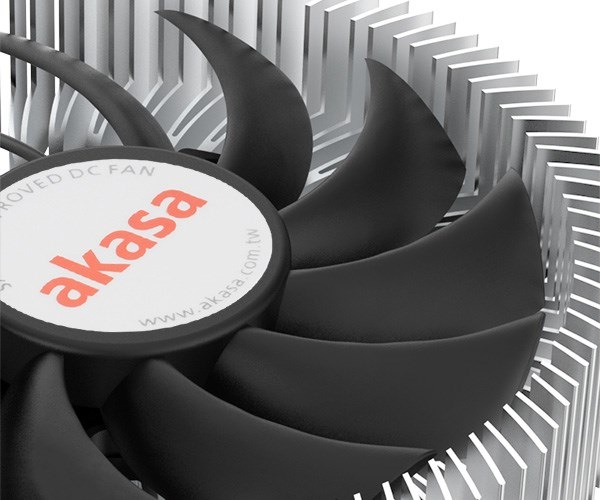

At the heart of the Akasa AK-CC6601EP01 is a fan with a diameter of 75 mm. This fan is controlled via a PWM signal in a range between 600 and 3,000 RPM.

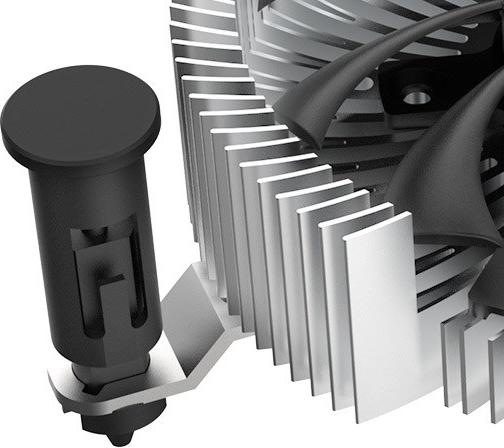

The CPU cooler is compatible with Intel's LGA1700 socket and connects to the motherboard via a 4-pin PWM connector. By using standard connectors, it offers high compatibility with other products. Mounting hardware and thermal paste are included in the package. Installation is straightforward and tool-free via push pins.

Technical details:

  • Dimensions: 87.2 x 26.92 x 85.2 mm (W x H x D)
  • Material: Aluminum (heatsink, fins), plastic
  • Fan: 75 x 10 mm (W x H)

Noise level: max. 30.75 dB(A)
Static pressure: max. 1.81 mmH2O
Airflow: max. 39.84 m³/h
Speed: 600 - 3,000 RPM
Voltage: 12 V
Current: 0.19 A
Lifespan: 40,000 h

  • Connection: 4-pin PWM
  • Compatibility:

Intel socket: 1700.

Key specifications

Socket
LGA 1700
power connector
4-pin PWM
Diameter
75 mm
Airflow
39.84 m³/h
Max. TDP
35 W
Number of fans
1 x
Height (with fan)
26.92 mm
Item number
20378846

General information

Manufacturer
Akasa
Category
CPU coolers
Manufacturer no.
AK-CC6601EP01
Release date
1.4.2022

Colour

Colour
Black
Exact colour description
Aluminium, Black

Cooler properties

CPU cooler design
Top Blower
Fan type
Top-Down Cooler
Socket
LGA 1700
Cooler mounting
Screw

Heat sink properties

Number of heatpipes
0
Materials radiator core
Aluminium
Material cooling fins
Aluminium

Fan dimensions

Diameter
75 mm

Fan properties

Number of fans
1 x
Max. Speed
600 RPM
Max. TDP
35 W
Airflow
39.84 m³/h
Static pressure
17.75 Pa
Max. noise level
30.75 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Power consumption
35 W
Voltage
12 V

Scope of delivery

Scope of delivery
Heat sink/radiator

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
87.20 mm
Length (with fan)
85.20 mm
Height (with fan)
26.92 mm
Weight
165.50 g

Package dimensions

Length
10 cm
Width
10 cm
Height
5 cm
Weight
200 g
