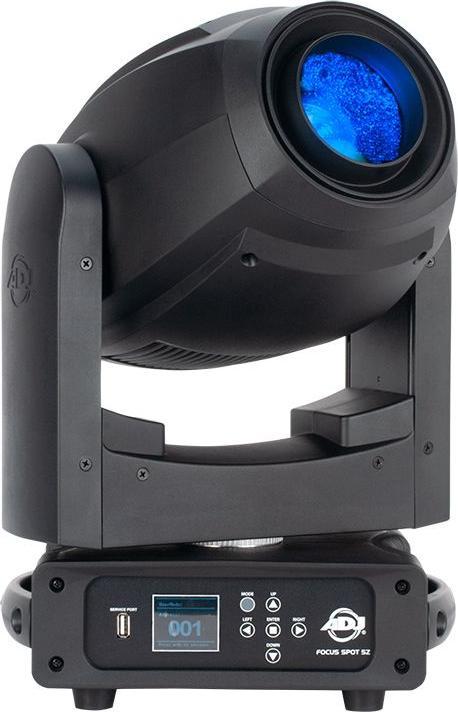

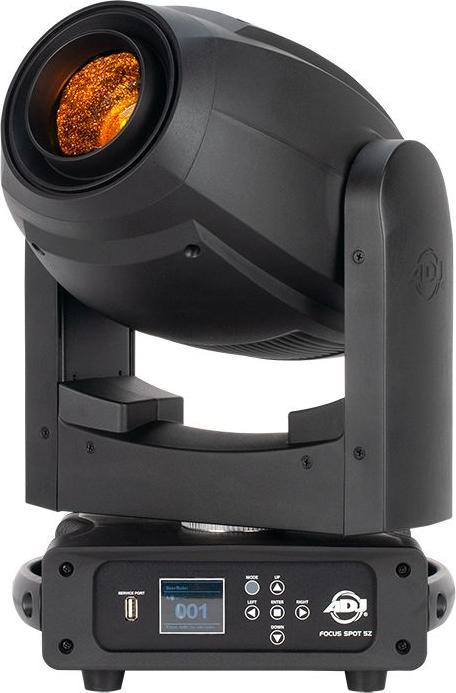

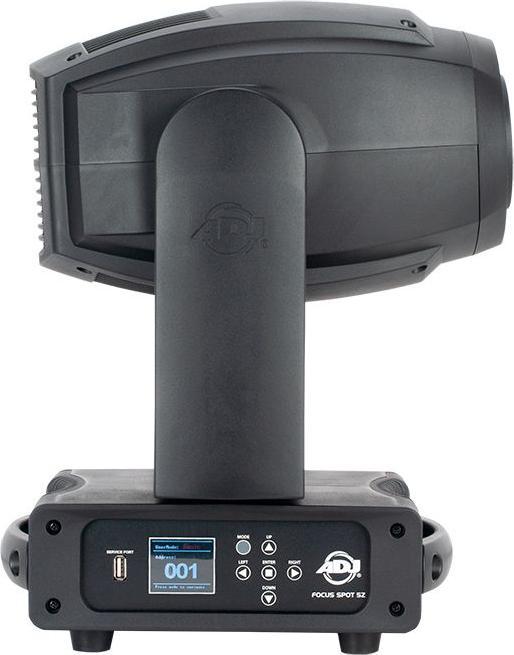

Product details

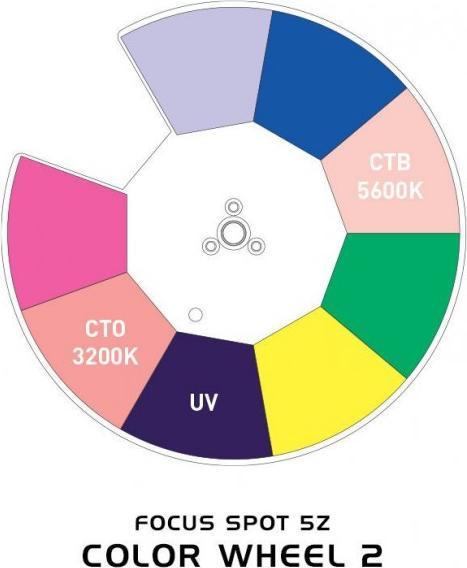

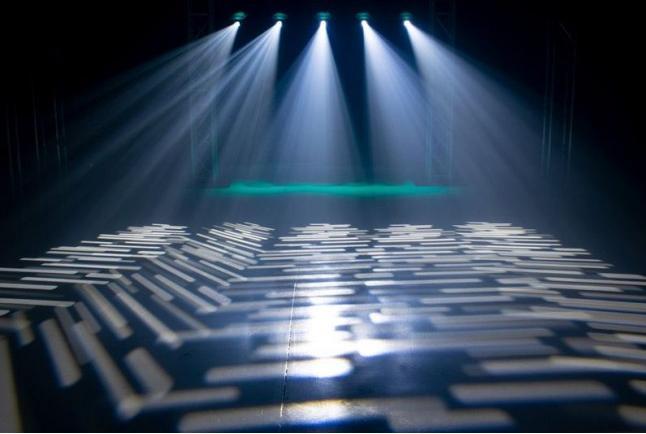

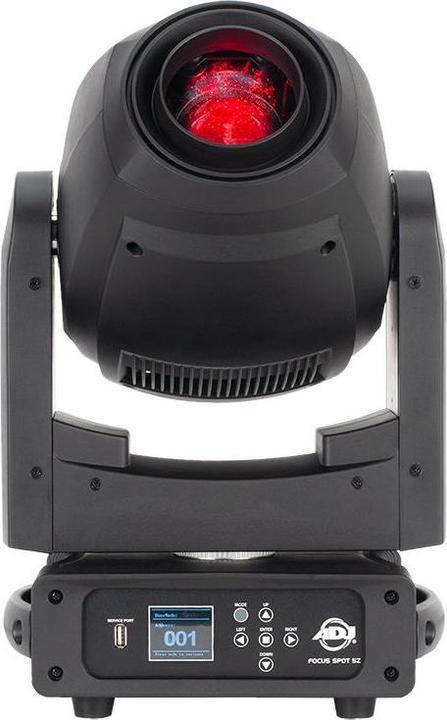

The Focus Spot 5Z is powered by a premium cold white 200W LED engine and features motorized focus, zoom (11 - 22 degrees), and two different frost filters. It is designed for temporary live events and permanent installations in nightclubs, stages, or churches. It is equipped with a gobo wheel with 6 rotating and interchangeable gobos, two color wheels with 7 intense colors plus white each, and 2 rotating and indexable prism wheels (one linear 5-facet and one circular 6-facet wheel).

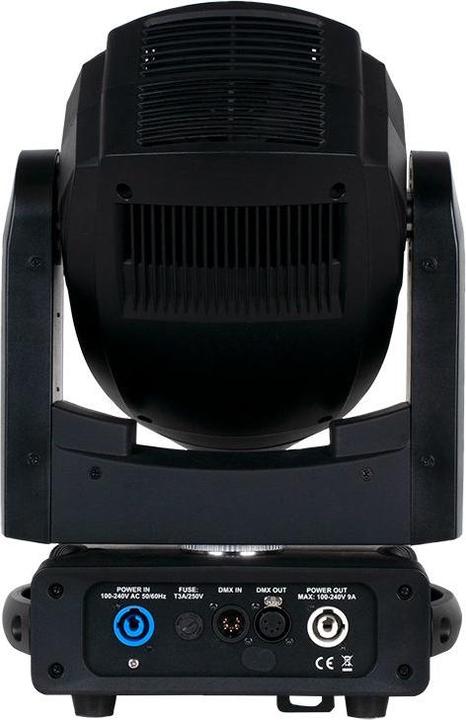

The Focus Spot 5Z includes locking power in and out connections for daisy chain setups, as well as 5-pin DMX in and out ports. There is an integrated USB firmware update port and advanced control options such as 16-bit pan and tilt, multiple DMX control modes, and 6 different dimming options.
The Focus Spot 5Z offers tremendous light output while being lightweight and compact in size.
Item number | 40781690 |
Manufacturer | ADJ |
Category | Moving heads |
Manufacturer no. | FOCUS SPOT 5Z |
Release date | 7.12.2023 |
Bulb type | LED |
light efficiency | 200 W |
Number of LEDs | 1 x |
LED type | COB LED |
Lamp service life | 50000 h |
Total number of gobo wheels | 6 |
Focus Method | Motor |
DMX Channels Max | 3 |
DMX functions | Dimmers |
Connections | DMX 3-pole In+Out |
Power consumption | 280 W |
CO₂-Emission | |
Climate contribution |
Height | 457.40 mm |
Width | 278.61 mm |
Depth | 181.50 mm |
Weight | 10 kg |
