Adapter Universe Obd Ii

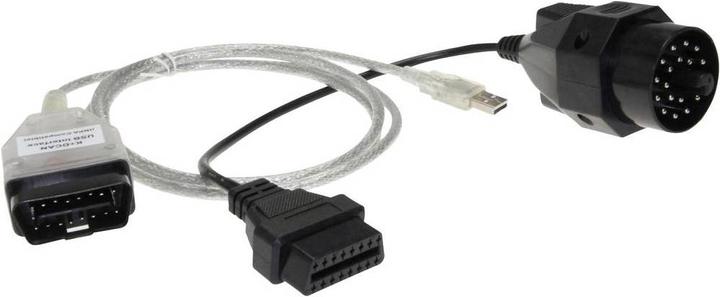

This practical set includes a USB diagnostic interface compatible with Ediabas / INPA, as well as a 20-pin OBD 2 to OBD 1 adapter cable. Thanks to the technology built into this set, you can establish a stable USB connection to BMW vehicles. This is now possible without the known synchronization or timing issues caused by most conventional USB converters. Depending on the software used, you can read the error memory or adjust the immobilizer, change the cruise control, and perform live data analyses, for example. With this convenient set, the following settings are now possible: activation of the TV function, automatic closing of the sunroof in the rain, half-opening of the driver's window with a double tap on your remote, activation of visual and acoustic confirmation (turn signal and horn sound) when locking and unlocking, and many other practical settings.

Pin assignment:

• OBD1 connector pin 14 (+12V voltage/battery) - OBD2 socket pin 16
• OBD1 connector pin 15 (ISO 9141-2 L Line) - OBD2 socket pin 15
• OBD1 connector pin 17 (ISO 9141-2 K Line) - OBD2 socket pin 7
• OBD1 connector pin 20 (ISO 9141-2 K Line) - OBD2 socket pin 7
• OBD1 connector pin 19 (vehicle ground) - OBD2 socket pin 4
• OBD1 connector pin 19 (signal ground) - OBD2 socket pin 5

Supported control units: Engine, automatic transmission, ABS, airbag, instrument cluster, air conditioning, central locking, central comfort system, immobilizer, radio, sound system, clutch, level control system, steering wheel, power steering, engine electronics 2, engine electronics 3, and many more.
