Adafruit RGB 7-Segment Digit 2.5cm
Only 1 piece in stock at supplier
Product details

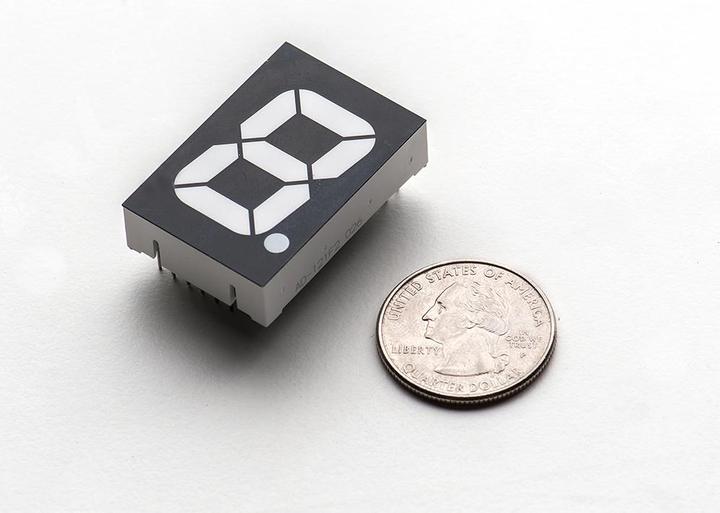

The photo is not a Photoshop job, but a 7-segment display with an RGB LED in each individual segment. Now you can implement a large 7-segment display in your project with a full-color display.

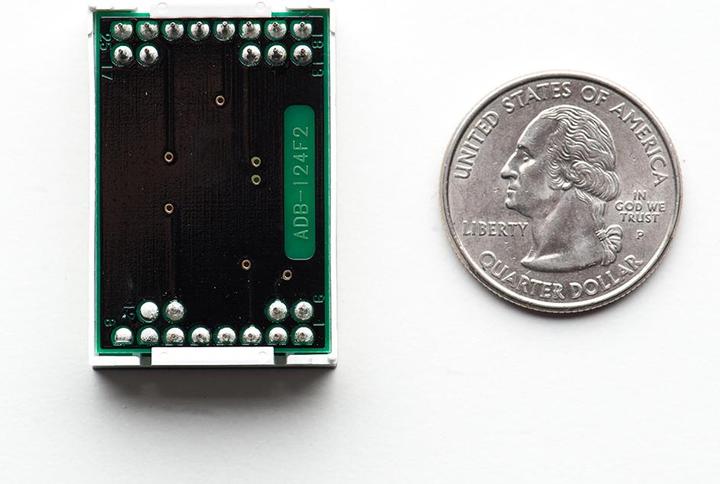

Each segment contains 3 red/green/blue LEDs, totaling 21 LEDs. The anodes are all connected together, and there are 21 cathodes for control. Unfortunately, this means you will need 21 pins to fully control the display, and we do not have a simple solution for that. We recommend chaining 3 75HC595 (or similar) together so that you can control 24 pins with a 3-pin SPI interface. This allows you to control the LED of each segment separately. The decimal point is not connected and does not light up on this display, only the seven segments.
Dimensions: 35.59 mm x 24.10 mm x 0.9 mm x 8.18 mm / 0.3"
For more details including dimensions, pinouts, brightness, etc., please refer to the datasheet.
Diode type | Light emitting diode (LED) |
Items per sales unit | 1x |
Item number | 5998505 |
Manufacturer | Adafruit |
Category | Diode |
Manufacturer no. | ada-1399 |
Release date | 20.6.2013 |
Diode type | Light emitting diode (LED) |
LED colour | Blue, Green, Red |
Number of LEDs | 21x |
Items per sales unit | 1x |
CO₂ emissions | 0.03 kg |
Climate contribution | CHF 0.11 |
Length | 9 cm |
Width | 6 cm |
Height | 2 cm |
Weight | 10 g |
