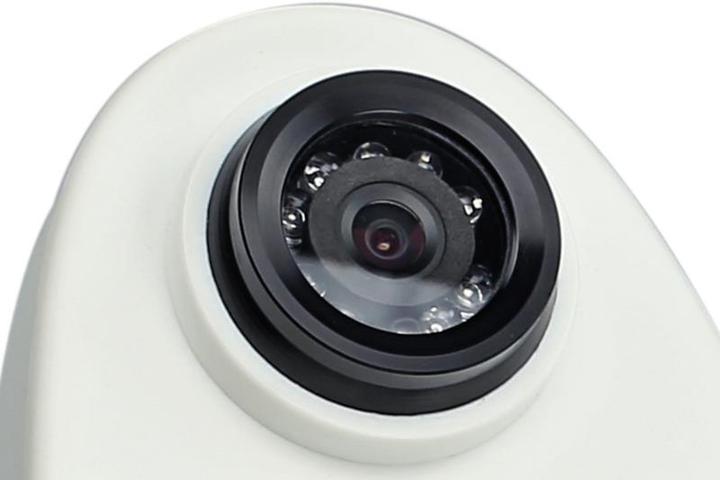

ACV Rear view camera van white body

Rear view camera universal

• Design: Transporter
• Mounting type: Roof mounting
• With orientation lines and night vision function

Product features:

• Body: Plastic with ball head
• Color: White
• Extras: Orientation lines via jumper and night vision function
• Sensor type: 1/3 inch CCD
• Image system: NTSC color
• Effective pixels: 628 x 512
• Lens: 1.9mm / F 2.0
• Lux: 0 Lux with active night vision function
• Resolution: 600 TV lines
• Angle of view: 170°
• Horizontal angle of view: 53°
• Vertical angle of view: 41° + 5°
• Dust and water protected: IP68
• Connection: 4 pin mini plug 5.2 mm
• Supply voltage: 12 Volt DC + 10%
• Current consumption: 200 mA with active night vision function
• Operating temperature range: -30°C to 75°C
• Storage temperature: -40°C to 85°C
• Dimensions: L / W / H - 231 / 198 / 111 mm

Connection cable on the camera:

• 1 meter cable with 4-pin mini-plug 5.2 mm

Cable set:

• 6.5 meter extension including 3 meter power cable for connection to the reversing light and through-wiring to the connection cable on the terminal
• 4-pin mini-jack 10 mm and plug 5.2 mm
• 0.2 meter power connection cable including fuse and video connection cable (RCA)

Installation accessories:

• Camera connection to interfaces normally open relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
• Camera connection to reversing light reversing camera voltage stabilizer reversing signal: 771000-6100

Optional accessories:

• 771000-6305 extension 5 meters
• 771000-6310 extension 10 meters
• 771000-6315 extension 15 meters.
