ACV Rear view camera 3rd brake light universal - mounting

Ratings
Delivered between Fri, 27.6. and Tue, 1.7.
Only 2 items in stock at supplier
free shipping

Product details

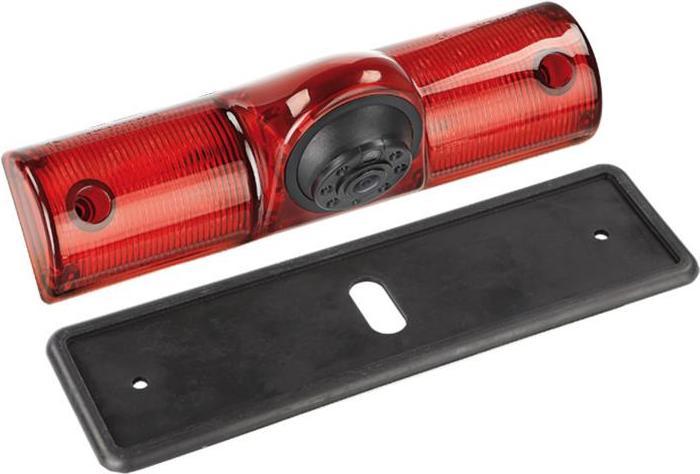

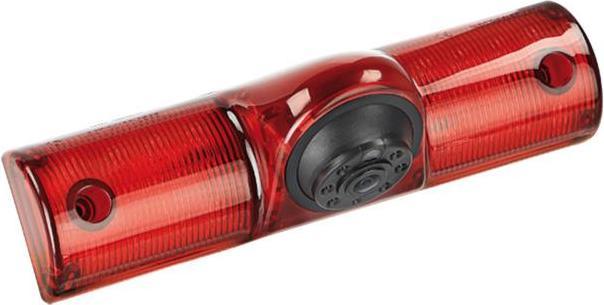

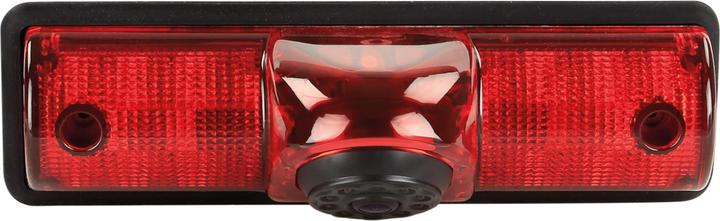

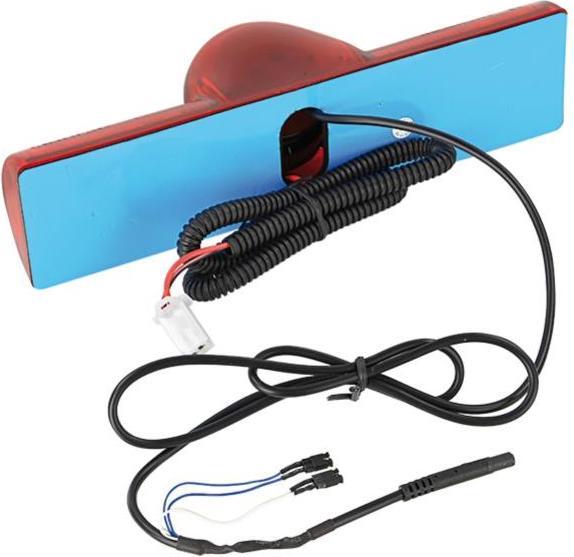

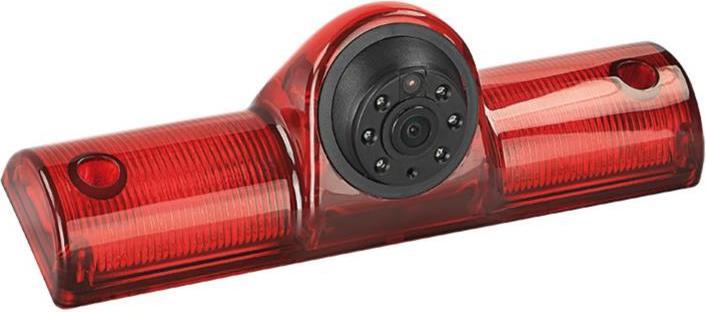

Rear view camera universal - - Design: 3rd brake light - Mounting type: surface mounted - - With orientation lines and night vision function - 20° adjustable viewing angle - - Product features Camera: - - Body: plastic - Color: black / red - Extras: Orientation lines via jumper and night vision function, viewing angle adjustable by 20° - Sensor type: 1/3 inch CMOS - Image system: NTSC color - Effective pixels: 976 x 592 - Lens: 1.9mm / F 2.0 - Min.Lux: 0 with active night vision function - Resolution: 600 TV lines - Angle of view: 160° + 5° - Angle of view: horizontal 115° vertical 75° + 5° - Dust and water protected: IP67 - Connector: 4 pin mini-plug 5.2 mm - Supply voltage: 12Volt + 10 % - Power consumption: 150mA with night vision function on - Operating temperature range: -30°C - 75°C - Storage temperature: -40°C - 80°C - Dimensions: Camera: 198mm x 48mm / Seal: 212mm x 62mm - - Connection cable on camera: - - 1 meter cable with 4-pin mini-plug 5.2 mm - - Cable set: - - 1 meter cable with 4-pin mini-plug incl. 1 jumper - 6.5 meter extension incl. 3 meter power cable for connection to reversing light - and through-wiring to connection cable on terminal - 4-pin mini-jack 10 mm and plug 5.2 mm - - 0.2 meter power connection cable incl. fuse and video connection cable (RCA) - - Installation accessories: - - Camera connection to interfaces normally open relay electronic 2V-12V/1,5A max: 40-AD-REMOTE - Camera connection to reversing light reversing camera voltage stabilizer reversing signal: 771000-6100 - - Optional accessories: - - 771000-6305 extension 5 meter - 771000-6310 extension 10 meter - 771000-6315 extension 15 mete.

Key specifications

Viewing angle (H)
160°
Viewing angle (V)
5°
Type
Rear View
Item number
20926702

General information

Manufacturer
ACV
Category
Rearview cameras
Manufacturer no.
771000-6058
Release date
18.5.2022

Camera properties

Type
Rear View
Camera resolution
600 Mpx
Viewing angle (H)
160°
Viewing angle (V)
5°

Accessory properties

Accessory type
Various

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
212 mm
Width
198 mm
Height
48 mm

Package dimensions

Length
28.60 cm
Width
21 cm
Height
13 cm
Weight
790 g
