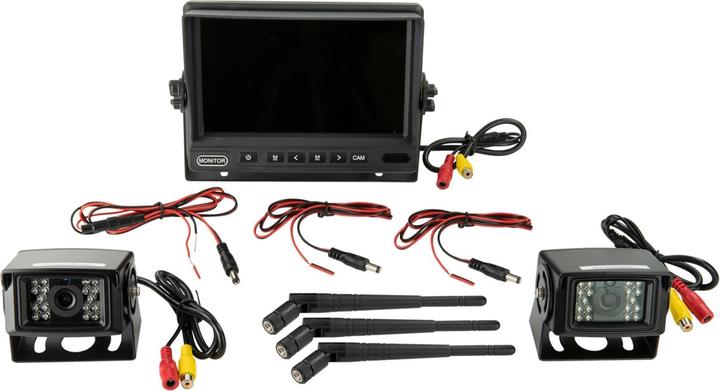

ACV Monitor Kit 7 2x Camera Video Transmitter

Rear view monitor kit - Design: transporter/motorhome. Mounting type: surface/roof mounting.

Features:

• 2 x camera analogue HD 1080 pixels with night vision function and digital video transmitter.
• Monitor: 7-inch digital video transmitter with sun protection, guide lines, and mirror function.

Before installation, check the viewing angle and camera alignment at the installation site with a test monitor.

Specifications:

• Monitor supply voltage: +12V / +24V.
• Camera operating voltage: +12V / +24V.

Connection details:

• Monitor:
• Red: +12V / +24V switched load stable fused.
• Black: ground/GND body direct.
• Camera:
• Red: +12V / +24V switched load stable fused.
• Black: ground/GND body direct.

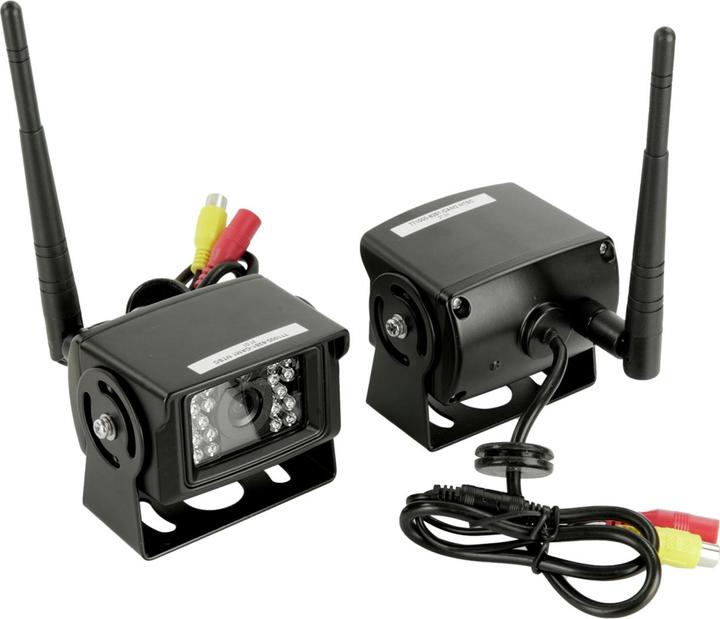

Camera features:

• Construction: metal.
• Colour: black.
• Extras: digital video transmitter, night vision function.
• Sensor type: 1/3 AHD.
• Image system: NTSC colour.
• Effective pixels: 1280 x 720.
• Minimum Lux: 0 Lux with active night vision function.
• Resolution: AHD analogue HD.
• Angle of view: 120° (horizontal 90°, vertical 55° +5°).
• Dust and water protected: IP68.
• Connection: +12V / +24V plug.
• Supply voltage: +12V / +24V DC.
• Current consumption: 200mA with night vision function switched on.
• Operating temperature range: -20°C to 75°C.
• Storage temperature: -40°C to 85°C.

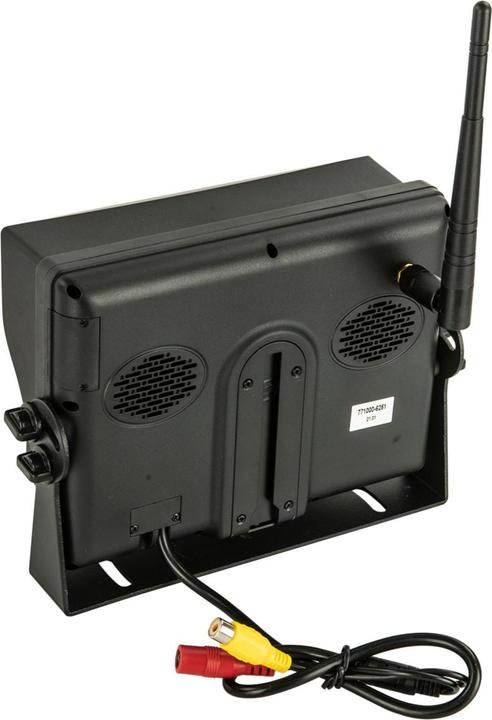

Monitor features:

• Construction: plastic with metal holder.
• Colour: black.
• Extras: sunshade, guide lines, mirror function.
• Input: 1 video Cinch(f).
• Resolution: 16:9 / 1024 x 600 pixel RGB.
• TV system: PAL / NTSC.
• Connection: +12V / +24V plug.
• Connection cable on the monitor: +12V / +24V plug, Cinch(f) yellow: video.
• Connection cable on the camera: +12V / +24V DC plug.
