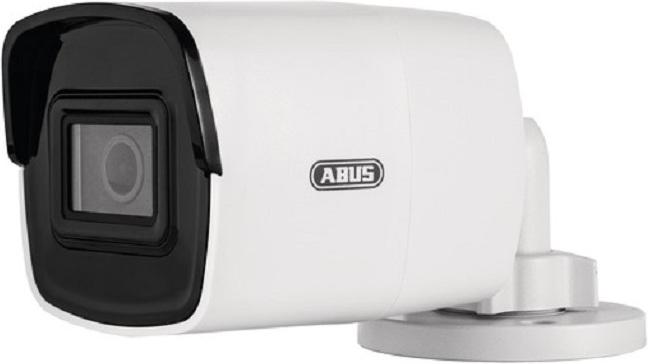

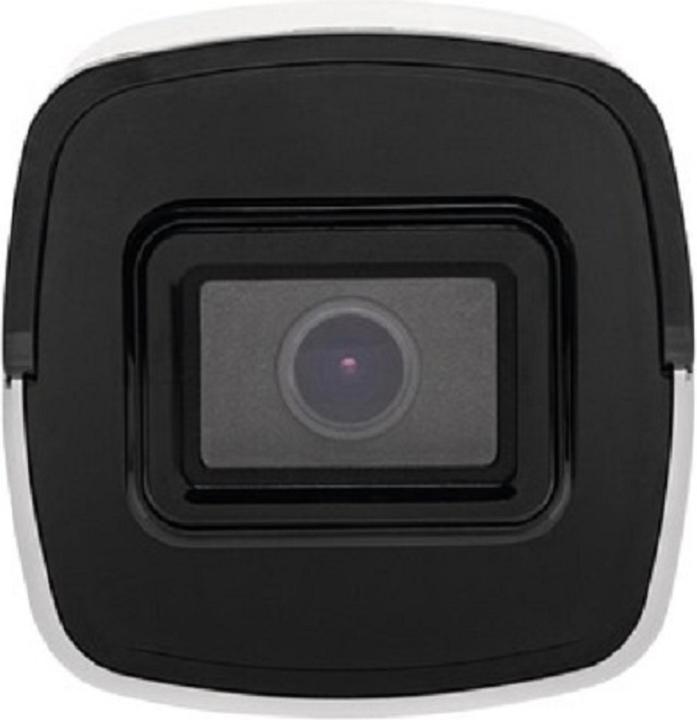

Abus mini tube camera
1920 x 1080 PixelsProduct details
The robust and weatherproof housing with an IP67 protection rating makes the Mini Tube Camera highly suitable for both indoor and outdoor use. Thanks to WDR with 120 dB, it can handle fluctuating and challenging conditions with significant backlighting, such as in entryways or outdoors. The integrated microSD card slot allows for direct recording in the camera and playback via browser or app. With H.265 Plus for efficient video data compression, the camera records six times longer compared to H.264. Motion detection also helps reduce storage needs in advance. Additionally, the camera features built-in infrared LEDs for visibility in darkness/night up to 30 meters, depending on the installation location. Installation is hassle-free with no messy cables. You can either power the camera via the network cable (PoE) or operate it via Wi-Fi, requiring only the power cable to connect to an outlet. The ABUS Link Station app for smartphones and tablets ensures mobile access to the camera through a secure end-to-end encrypted connection, without the need for router settings. The Lite version of the app allows for up to 60 minutes of data streaming (live view/playback) per month completely free of charge. The paid Pro version of the app permits unlimited access to all data.
Network camera type | Outdoor surveillance camera, Surveillance camera indoor |
Network interface | RJ45 port, Wi-Fi |
Power supply | Electrical connection, PoE |
Lens type | Prime lens |
Type of memory | Memory card |
Advanced functions | Motion sensor, Siren |
Item number | 12030272 |
Manufacturer | Abus |
Category | Network camera |
Manufacturer no. | TVIP62561 |
Release date | 27.9.2019 |
Colour | White |
Exact colour description | White |
Material group | Metal, Plastic |
Material | Metal, Plastic |
Network camera type | Outdoor surveillance camera, Surveillance camera indoor |
Camera design | Bullet camera |
Max. picture resolution | 1920 x 1080 Pixels |
Viewing angle (H) | 115° |
Viewing angle (V) | 115° |
Lens type | Prime lens |
Focal length | 2.8 mm |
Aperture | f/2 |
Image sensor type | CMOS |
Refresh rate | 30 FPS |
Shutter speed | 1/3 - 1/100.000s |
Advanced functions | Motion sensor, Siren |
Remote access | App |
Video file formats | H.264, H.265, MJPEG |
Audio formats | H.264 |
Protection type (IP code) | IP67 |
Connection A | RJ45 |
Memory card type | microSD |
Type of memory | Memory card |
Network interface | RJ45 port, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
Smart Home | Compatible |
Power supply | Electrical connection, PoE |
PoE Standard | 802.3af (PoE) |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Drill template, Mounting kit |
Height | 69.70 mm |
Length | 171.40 mm |
Width | 69.70 mm |
Weight | 620 g |
Length | 25.60 cm |
Width | 16.70 cm |
Height | 13.40 cm |
Weight | 1.04 kg |
