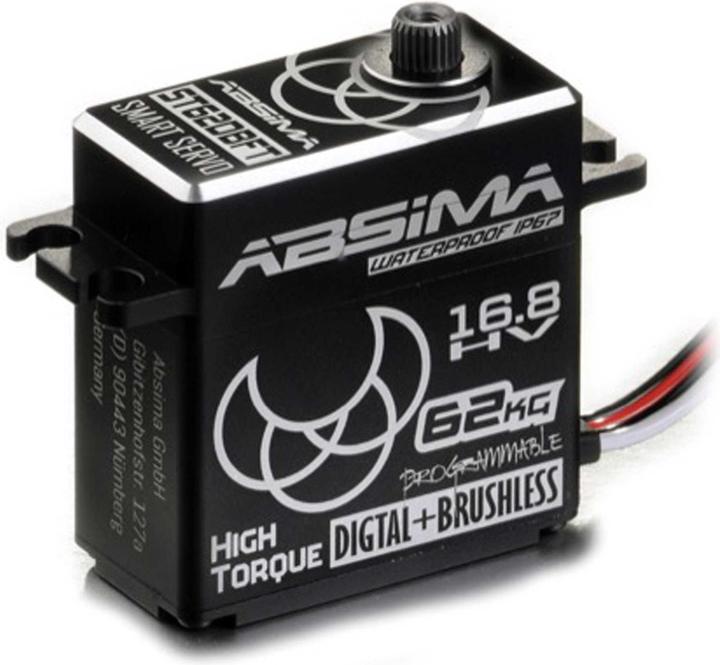

Absima Servo HV 3S/4S Digital Alu ST62DBFT Crawler-Spec. Waterproof

Servos are part of the RC system and thus the foundation of a remote-controlled model. They are connected to the steering linkage and convert stick or rotary movements from the transmitter into steering movements for the vehicle. In combustion vehicles, they also function as throttle servos, operating both the throttle valve of the carburetor and the brake. An undersized servo has a longer response time and a shorter lifespan under load. Therefore, never skimp on the servo! A good servo doesn't have to be expensive, but it makes the model more reliable and lasts for years. This version has an enormous torque, reaching up to 34 kg when directly connected to a 3S or 4S LiPo battery, with a speed of 0.080 seconds! Additionally, the servo is dust and waterproof (IP67), allowing it to be used in all weather conditions.

Technical Data Highlights:
Servo Category: High Torque & High Speed
Operating Voltage: 7.4 - 16.8V HV
Torque / Speed @ 12V: 48.0 kg / 0.120 sec/60°
Torque / Speed @ 14.4V: 54.0 kg / 0.100 sec/60°
Torque / Speed @ 16V: 60.0 kg / 0.095 sec/60°
Torque / Speed @ 16.8V: 62.0 kg / 0.090 sec/60°
Technology: Digital
Motor Type: Brushless
Gear Material: Reinforced Steel
Housing Material: AL6061 T6
Waterproof Rating: IP67 waterproof
Bearings: Metal ball bearings (2)
Servo Arms: 1 Aluminum, 2 Plastic
Size: 40 x 20 x 41.5 mm (Standard)
Weight: 88.2 g
Programmable: Yes, with USB interface adapter (sold separately).
