ABB VAA/S6.230.2.1Valve.-act 6f,230V,R VAA/S6.230.2.1
Heating actuatorMore than 10 pieces in stock at third-party supplier
Product details

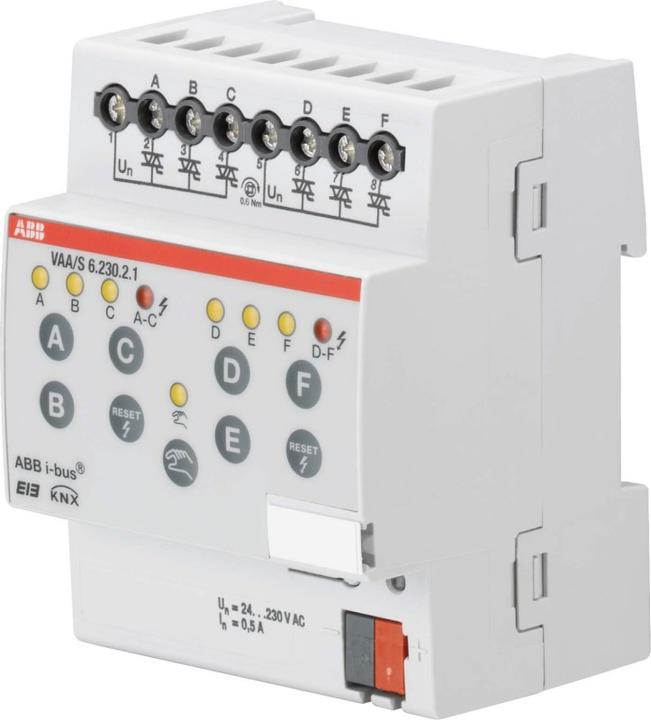

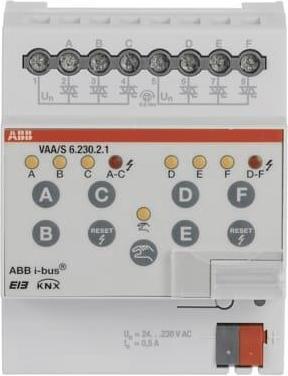

ABB Stotz S&J Valve Actuator VAA/S6.230.2.1
Manufacturer: ABB Stotz S&J
Designation: 6-channel valve actuator, 230 V
Type: VAA/S6.230.2.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Bus Module Removable: no
Continuous Control Size: no
Switching Control Size: yes
Valve Protection Function: no
Manual Lock: yes
Max. Switching Current (resistive load): 0.3 A
Number of Outputs: 6
Max. Output Current: 0.16 A
Switching Voltage: 24..230 V
Protection Class (IP): IP20
Min. Depth of Device Box: 64.5 mm
ABB Stotz S&J Valve Actuator VAA/S6.230.2.1: additional details
For controlling thermo-electric actuators in heating/cooling systems at 24...230 V AC. The outputs are short-circuit and overload protected and can be manually operated during commissioning.
EAN: 4016779829861.
Actuator type | Heating actuator |
Items per sales unit | 1 x |
Mounting type | Top-hat rail |
Item number | 17814841 |
Manufacturer | ABB |
Category | Actuator |
Manufacturer no. | 2CDG110116R0011 |
Release date | 3.5.2021 |
Colour | Grey |
Exact colour description | Grey |
Actuator type | Heating actuator |
Max. Switching capacity | 0.30 W |
rated current | 0.16 A |
Operating voltage | 230 V |
Number of switching outputs | 6 x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 100 mm |
Width | 4 mm |
Height | 70 mm |
Weight | 140 g |
