ABB VAA/S6.230.2.1Valve.-act 6f,230V,R VAA/S6.230.2.1

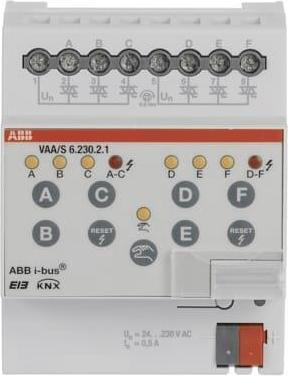

ABB Stotz S&J Valve Actuator VAA/S6.230.2.1

Manufacturer: ABB Stotz S&J
Designation: 6-channel valve actuator, 230 V
Type: VAA/S6.230.2.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Bus Module Removable: no
Continuous Control Size: no
Switching Control Size: yes
Valve Protection Function: no
Manual Lock: yes
Max. Switching Current (resistive load): 0.3 A
Number of Outputs: 6
Max. Output Current: 0.16 A
Switching Voltage: 24..230 V
Protection Class (IP): IP20
Min. Depth of Device Box: 64.5 mm

ABB Stotz S&J Valve Actuator VAA/S6.230.2.1: additional details
For controlling thermo-electric actuators in heating/cooling systems at 24...230 V AC. The outputs are short-circuit and overload protected and can be manually operated during commissioning.
EAN: 4016779829861.
