ABB USB interface USB/S 1.2 2CDG110243R0011

ABB Stotz S&J USB Interface USB/S1.2

Manufacturer: ABB Stotz S&J
Designation: USB Interface
Type: USB/S1.2
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Design: USB
Mounting Type: REG
Width in Division Units: 2
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: matte
Color: other
RAL Number (similar): 7035
Transparent: no
Max. Transmission Rate: 9600 Bd
With Bus Coupling: no
With Labeling Field: yes
With LED Display: yes
Protection Class (IP): IP20
Min. Depth of Device Box: 63.5 mm

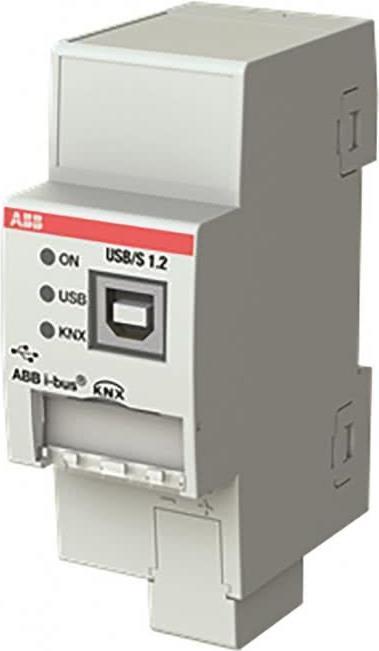

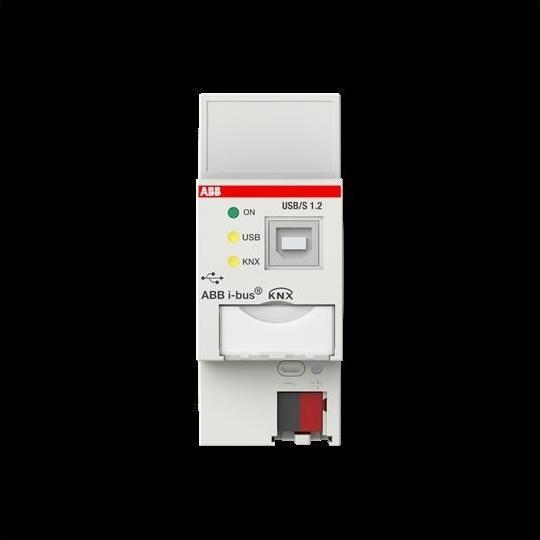

The ABB i-bus® KNX USB Interface USB/S1.2 is a KNX rail-mounted device (REG) in Pro M design for installation in a distribution board on a 35 mm mounting rail. The USB interface enables communication between the ETS and a KNX system (programming, bus monitoring, group monitoring). Visualizations or other clients can also access KNX via USB. The device is connected to the computer via a Type B USB cable and is ready for operation as soon as the USB is connected. The necessary driver is automatically installed under Windows upon first connection. The operating status and telegram traffic are displayed via 3 LEDs. The KNX part and the USB part are galvanically isolated from each other.
