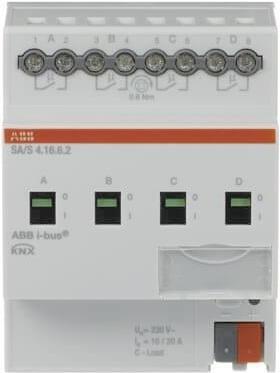

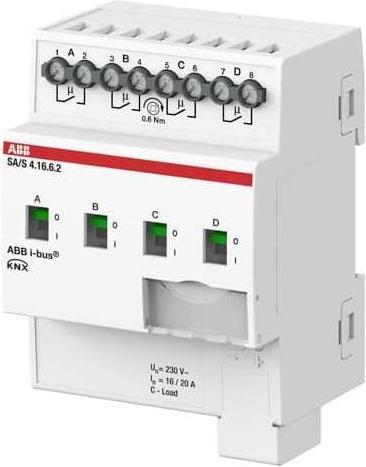

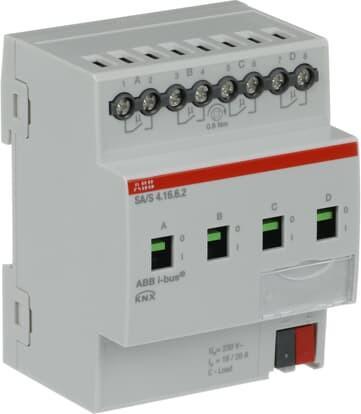

ABB Switching actuator

ABB Stotz S&J Switching Actuator 4-fold SA/S4.16.6.2

Manufacturer: ABB Stotz S&J
Designation: 4-fold switching actuator 16A, C-load
Type: SA/S4.16.6.2
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 3680 W
Max. Switching Power LED: 400 W
Output Power: 3680 W
Suitable for C-load: yes
Max. Number of Switching Outputs: 4
Max. Switching Current: 20 A
Rated Current: 20 A
Rated Operating Voltage: 230 V
Various Phases Connectable: yes
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Possibility: no
Protection Class (IP): IP20

The switching actuator controls independent electrical loads via 4 potential-free contacts through ABB i-bus® KNX. The device features integrated energy functions, including independent load current measurement at each output and an easy-to-use calculation of power and energy consumption for each output or groups of outputs. An integrated load shedding object allows for simple integration into a load control system. The device has manual operation and display of the switching status of the outputs. The device 16/20 A, 16 A-AC3 (C-load) is particularly suitable for loads with high inrush currents, such as LED or fluorescent lamps (AX) according to EN60669.
