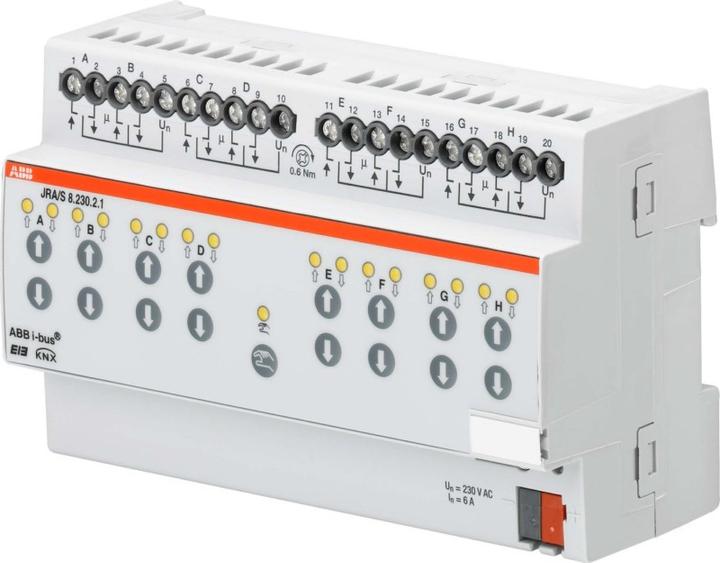

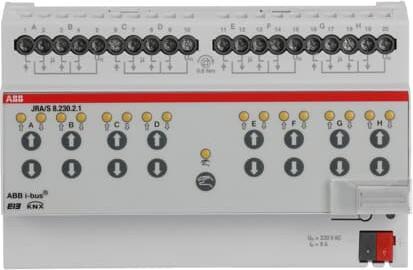

ABB STOTZ-KONTAKT 2CDG110122R0011 Smart home actuator shutter/blind DIN rail mounted 8 channels
Shutter actuatorDelivered between Wed, 25.6. and Thu, 3.7.
Only 1 item in stock at supplier
Only 1 item in stock at supplier
Product details
For the control of independent 230 V AC drives via ABB i-bus KNX. The devices are designed for positioning blinds, roller shutters, awnings, and other shading products, as well as for controlling doors, windows, and ventilation flaps. Additional auxiliary voltage is not needed. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs during commissioning. The current status of the output is displayed via LEDs.
Actuator type | Shutter actuator |
mounting style | Top-hat rail |
Items per sales unit | 1 x |
Item number | 14166669 |
Manufacturer | ABB |
Category | Actuator |
Manufacturer no. | 2CDG110122R0011 |
Release date | 10.11.2020 |
External links |
Colour | Grey |
Exact colour description | Grey |
Actuator type | Shutter actuator |
Max. Switching capacity | 2400 W |
rated current | 6 A |
Operating voltage | 230 V |
Number of switching outputs | 8 x |
mounting style | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.06 m |
Width | 0.14 m |
Height | 0.09 m |
Weight | 410 g |
Length | 15 cm |
Width | 9.50 cm |
Height | 7 cm |
Weight | 415 g |
Specifications may include unverified machine translations.
