Product details

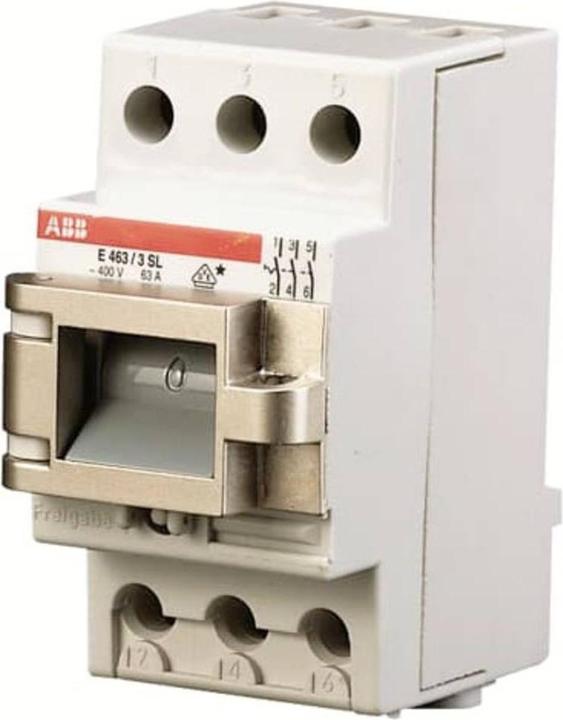

ABB Stotz S&J Main Switch E463/3SL
Manufacturer: ABB Stotz S&J
Name: Main Switch 63A 3p
Lamp Type: E463/3SL
Switching Function: Circuit breaker
Number of Contacts as Normally Open: 3
Number of Poles: 3
Rated Current: 63 A
Rated Voltage: 400 V
Min. Rated Voltage: 24 V
Short-Circuit Strength (Icw): 10 kA
Voltage Type: AC
With Signal Lamp: No
Color of Dome: Gray
Width in Pitch Units: 2.5
Mounting Depth: 70 mm
Degree of Protection (IP): IP20
Overprint/Marking: Other
Forced Disconnection (according to DIN VDE 0113): Yes
The ABB Stotz S&J Main Switch E463/3SL serves as the main switch between the last overcurrent protection device before the measuring device and the circuit distributor. The main switch is lockable and can be used for various other applications. It features double-break switching contacts and short-circuit strength up to 10 kA with a back-up fuse In < 63 A, gG. EAN: 7612270932535.
