ABB Ground fault circuit interrupter

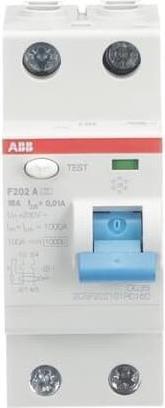

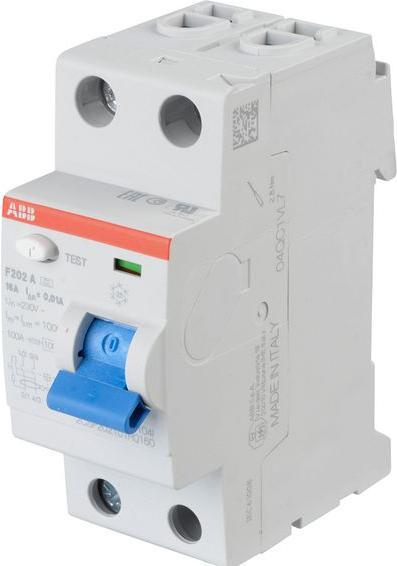

ABB Stotz S&J RCD F202A-16/0.01

Manufacturer: ABB Stotz S&J
Designation: RCD pro M Compact
Type: F202A-16/0.01
Number of poles: 2
Rated voltage: 230 V
Rated current: 16 A
Rated residual current: 0.01 A
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Mounting type: DIN rail
Residual current type: A
Selective type: No
Short-time delayed type: No
Short-circuit strength (Icw): 1 kA
Surge current strength: 0.25 kA
Voltage type: AC
With interlocking device: Yes
Frequency: 50/60 Hz
Additional devices possible: Yes
Protection class (IP): IP2X
Width in pitch units: 2
Mounting depth: 69 mm
Ambient temperature during operation: -25 to 55 °C
Degree of pollution: 2
Connectable conductor cross-section stranded: 0 to 25 mm²
Connectable conductor cross-section solid: 25 mm²
Explosion-proof: No

ABB Stotz S&J RCCBs F202A-16/0.01: further details
Residual current circuit breakers (RCCBs) provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series RCCBs provide protection for sinusoidal AC currents and pulsating currents with a smooth DC fault current component of up to 6 mA to earth. They offer fault protection (protection in case of indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A to 100 A UL 1053. Areas of application include domestic, commercial, and industrial. The extensive range of accessories offers everything needed for installation tasks. Numerous approvals make the F200 suitable for worldwide use.
