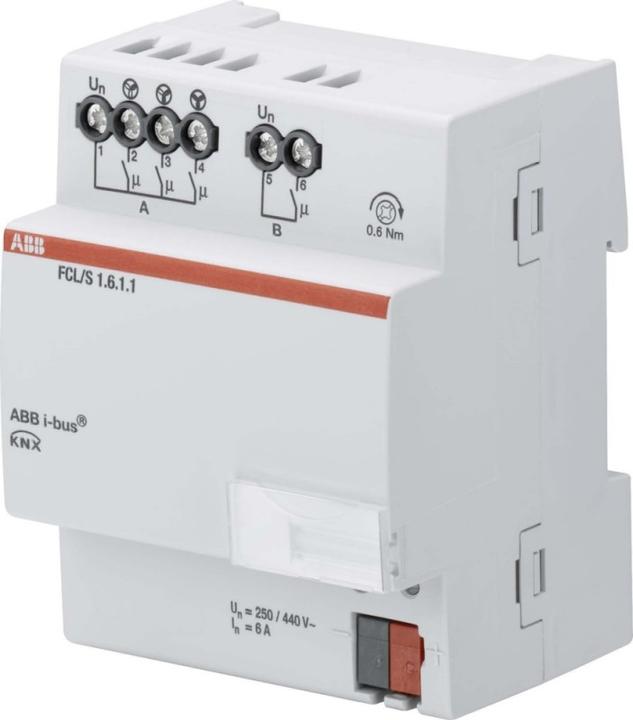

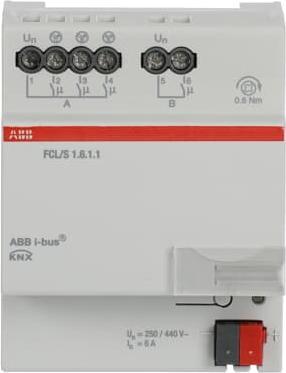

ABB FCL/S1.6.1.1 Fan actuator 1f 6A REG

ABB Stotz S&J Fan Actuator FCL/S1.6.1.1

Manufacturer: ABB Stotz S&J
Designation: Single-channel fan actuator, 6A
Type: FCL/S1.6.1.1
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: no
Bus Module Removable: no
Continuous Control Size: no
Switching Control Size: yes
Valve Protection Function: yes
Manual Control: no
Max. Switching Current (Ohmic Load): 6 A
Number of Outputs: 1
Max. Output Current: 6 A
Switching Voltage: 230 V
Protection Class (IP): IP20
Min. Depth of Device Box: 64.5 mm

ABB Stotz S&J Fan Actuator FCL/S1.6.1.1: additional details
Designed to control a fan or ventilator with up to 3 stages via relays in step or changeover mode. Additionally, the device features a potential-free switching output for controlling accessories such as dampers or valves. The fan stage can be selected directly, increased, and decreased, as well as controlled via the control sizes of an external regulation. There is also the option to override the fan stage through forced control. Furthermore, error monitoring and fan run-on can be parameterized using the ETS application.
