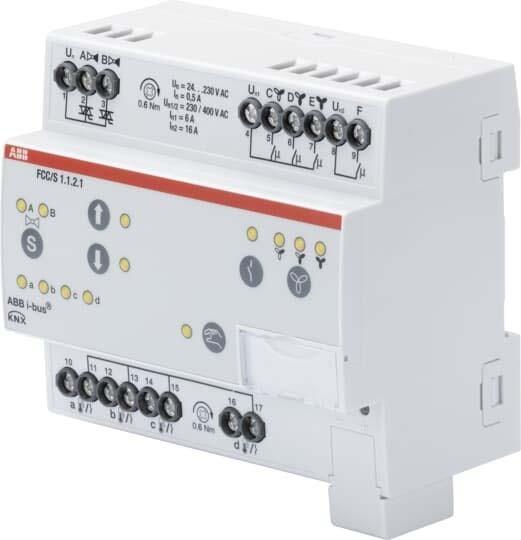

ABB Fan Coil Actuator

ABB Stotz S&J Fan Coil Controller FCC/S1.1.2.1

Manufacturer: ABB Stotz S&J
Designation: Fan Coil Controller 2xPWM manual 3-stage control
Type: FCC/S1.1.2.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 6
With Bus Coupling: no
Bus Module Removable: no
Continuous Control Variable: yes
Switching Control Variable: yes
Valve Protection Function: yes
Manual Override: yes
Number of Digital Inputs: 4
Max. Switching Current (resistive load): 16 A
Number of Outputs: 5
Max. Output Current: 0.5 A
Switching Voltage: 24..230 V
Protection Class (IP): IP20

The ABB Stotz S&J Fan Coil Controller FCC/S1.1.2.1 is designed for controlling fan coil units or fan convectors. It can control two thermoelectric valve actuators or a motor-driven valve actuator for heating or cooling via two electronic outputs. For fan control, the device has three relay outputs. One relay output can switch an additional load of up to 16 A, such as an electric auxiliary heater. The room status can be captured and monitored through 4 inputs (usable for window contacts, dew point sensors, level sensors, or temperature sensors). Additionally, it is possible to connect an analog room control device (SAR/A or SAF/A) to the device's inputs. To regulate the room temperature, the device features an integrated room temperature controller, which can be used directly to control the device's outputs. The FCC/S 1.1.2.1 has an easy-to-use local interface. For advanced diagnostic functions and improved commissioning, the ABB i-bus tool can be utilized.
