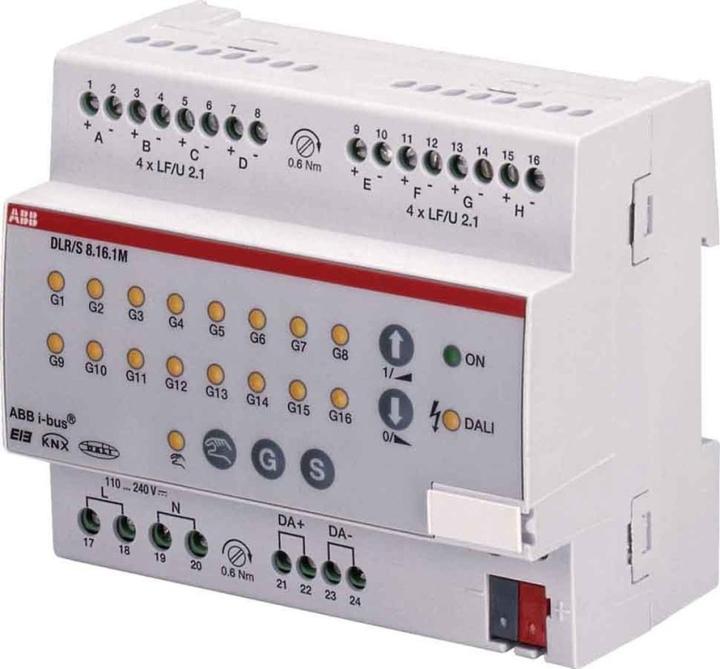

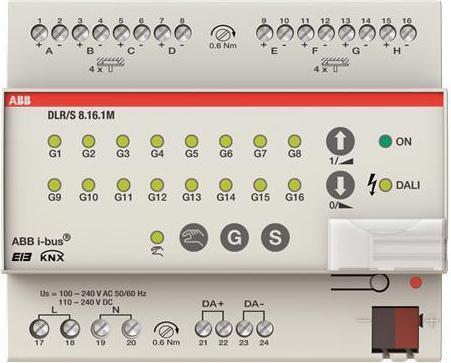

ABB Stotz S&J DALI Light Controller DLR/S8.16.1M

Manufacturer: ABB Stotz S&J
Designation: DALI Light Controller 8-fold REG
Type: DLR/S8.16.1M
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Interface lighting system/DALI
Mounting type: REG
Width in subdivision units: 6
Number of channels: 1
Max. number of devices per channel: 64
Disassembly protection: No
With LED display: Yes
Updateable: Yes
Operating voltage: 100-240 V
Voltage type: AC/DC
Power consumption: 1.6 W
Protocol: Other
Provider-dependent: No
Visualization: No
Web server: No
Radio interface: No
IR interface: No
Protection class (IP): IP20

The ABB Stotz S&J DALI Light Controller DLR/S8.16.1M is a device for switching and dimming 16 independent lighting groups. A maximum of 64 DALI devices can be connected to one DALI control output. In connection with 8 connectable light sensors LF/U 2.1, the device can be used as a light controller for constant light control. In this function, the device can be a key component in energy-efficient building automation. Additionally, a staircase lighting and a master/slave function are available in the device. Extensive fault messages, such as ECG and lamp faults, are transmitted on the KNX.
