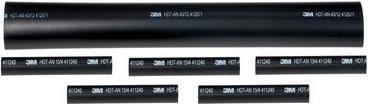

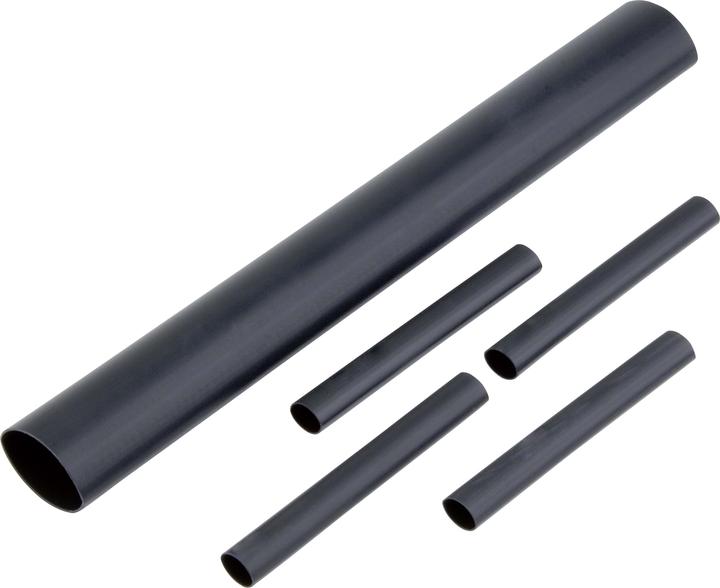

3M Germany Heat Shrink Joint Kit 91-AH 23 N

Manufacturer: 3M Germany
Description: Heat Shrink Joint Kit 4x25-95 mm² L700
Type: 91-AH 23 N
Rated Voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat Shrink
For connecting paper-insulated to plastic-insulated cables: no
Number of conductors: 4
Conductor nominal cross-section: 25..95 mm²
Mining approval: no
With concentric shielding: no
Suitable for: others
Halogen-free: yes

Further details:
The 3M 91-AH is a heat shrink joint kit designed for crimp connectors, intended for low voltage applications. It is suitable for 4- or 5-core, unshielded and non-armored insulated low voltage plastic cables with up to 0.6/1 kV (according to HD 603 and IEC 60502-1). It features a shrink ratio of up to 4.5:1, a minimum shrink temperature of 135 °C, and an operating temperature range of -55 °C to 130 °C. The 91-AH 20-5N is RoHS compliant, halogen-free, and provides excellent waterproof moisture sealing as well as protection against mechanical impacts. It offers outstanding electrical insulation and good resistance to UV radiation, alkaline earth metals, and chemicals. Applications include electrical insulation and mechanical protection of crimp connectors. The 91-AH is suitable for use indoors and outdoors in underground and underwater installations. The 91-AH is available in black and in sizes designed for a cable cross-section range of 5 x 1.5 to 5 x 6 mm². Standard packaging as a kit. Approvals: Type tested according to DIN EN 50393, Table 3.
