Best Axis products in the Transceivers category
On this page you'll find a ranking of the best Axis products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Axis T8612 SFP Module LC.SX
5801-811
- Range up to 550 m
- Multi-mode fiber
- Link loss function
- For industrial use – extended temperature range
- Complies with SFP MSA
The AXIS T8612 SFP module LC.SX is an SFP (Small Form-Factor Pluggable) transceiver designed to provide an optical fiber network connection for network devices such as switches and routers. The module is suitable for industrial use due to its wide temperature range (between -40 and 65 °C) and features a link loss function that enables network redundancy. It complies with the SFP Multi-Source Agreement (MSA) and can be easily installed at any time on compatible ports without interrupting the online operation of the host devices. VCSEL laser diodes with a short wavelength (850 nm) allow data transmission over distances of up to 550 m using optical fibers (multimode, 50/125 µm). The module has been tested and verified with Axis products.
Link loss function for network redundancy
The signal loss function (LOS – Loss of Signal) allows the system to detect a connection loss between specific hardware (such as AXIS network cameras) and the host. For optimal network redundancy, the AXIS T8612 sends a signal to the hardware in the event of a broken or unsuitable connection for network traffic. This enables the hardware to redirect network traffic to a backup connection, such as via RJ-45.
Fiber optic cables are typically used for long-distance connections in urban surveillance systems, airports, and other large installations where there is a risk of lightning strikes or where long distances need to be covered.

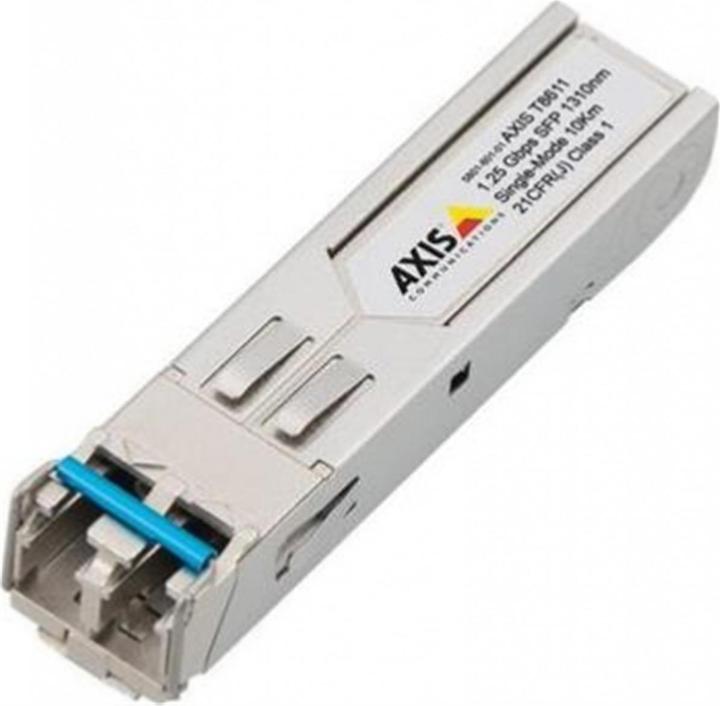

2. Axis T8611 SFP Module LC.LX
5801-801
- Range up to 10 km
- Single-mode fiber
- Link-loss function
- Designed for industrial use – extended temperature range
- Complies with SFP MSA
The AXIS T8611 SFP module LC.LX is an SFP (Small Form-Factor Pluggable) transceiver that provides an optical fiber network connection for network devices such as switches and routers. The module is suitable for industrial use due to its wide temperature range (between -40 and 65 °C) and features a link-loss function that enables network redundancy. It complies with the SFP Multisource Agreement (MSA) and can be easily installed at any time on compatible ports without interrupting the online operation of the host devices. Long-wavelength FP laser diodes (1,310 nm) allow for data transmission over distances of up to 10 km using optical fibers (single-mode, 9/125 µm). The module has been tested and verified with Axis products.
Link-loss function for network redundancy: The link-loss function (LOS – Loss of Signal) allows the system to detect a loss of connection between specific hardware (such as Axis network cameras) and the host. For optimal network redundancy, the AXIS T8611 sends a signal to the hardware in the event of a broken or unsuitable connection for network traffic. This enables the network traffic to be redirected from the hardware to a backup connection, such as an RJ45 port.
Fiber optic cables are typically used for long-distance connections in urban surveillance systems, at airports, and other large installations where there is a risk of lightning strikes or where long distances need to be covered.

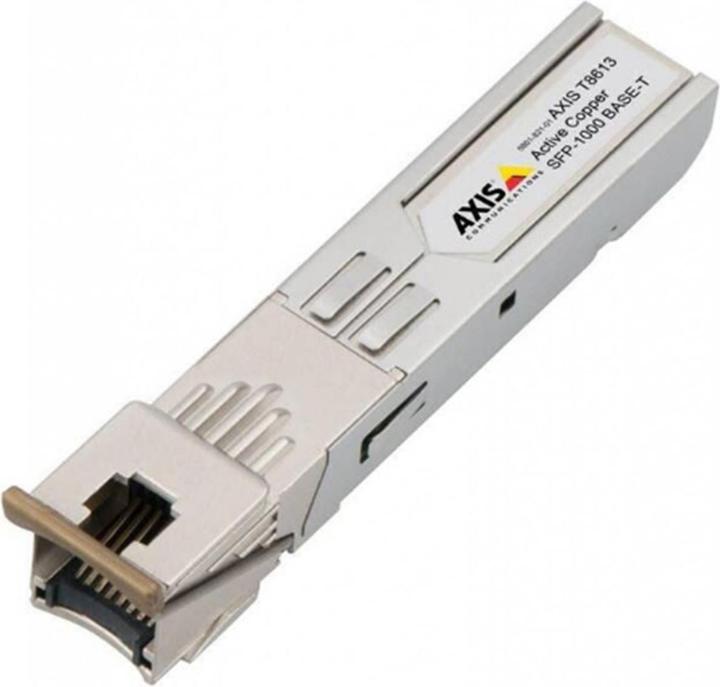

3. Axis SFP Module T8613 1000BASE-T
AXIS T8613 SFP Module 1000BASE-T is an SFP (Small Form-Factor Pluggable) transceiver designed to provide a network connection for network devices. The module is suitable for industrial use due to its wide temperature range and includes link loss, enabling network redundancy. It can be easily installed at any time on compatible ports without needing to interrupt the online operation of the host devices. The module supports up to 1.25 Gbps over a 4-pair UTP Category 5 cable with a connection length of up to 100 meters. The AXIS T8613 has been tested and verified with Axis products. Please note that compatible network devices and SFP modules are required at both ends of the network cable.
