Best Wilesco products in the Scale modelling category

On this page you'll find a ranking of the best Wilesco products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Wilesco D18 Steam engine

Steam Engine D18

This model variant presents a completely new color scheme: the water-blue base plate has been combined with a black boiler casing and a silver-colored
aggregate plate. The flywheel is painted black.

The technology of this machine reflects a combination of the D20 and D16 types, enhanced with several technical refinements.

Additional technical details for the Steam Engine D18:
- Water drain valve
- Spring safety valve
- Steam whistle with chain pull
- Steam shut-off handwheel valve
- Steam jet oiler
- Elegantly designed, galvanized die-cast frame
- Base dimensions: 30 x 35 cm
- Height: 32 cm
- Net weight: 2.5 kg
- Heating: Dry fuel
- Boiler volume: 530 ccm

The highly polished and nickel-plated brass boiler has a capacity of 530 ccm and is equipped with a new small manometer (26 mm diameter) and a nickel-plated manometer base. The condensate is directed into a container hidden behind the boiler house, allowing the chimney to smoke realistically.

The aggregate plate has been expanded with a dynamo that supplies power to the lantern located at the rear, between the boiler and the aggregate. The lantern is inspired by industrial lamps from the turn of the century and illuminates the flywheel during operation.


2. Wilesco D9 Kit: Steam engine

This kit is the perfect entry point for steam enthusiasts who are passionate about steam technology. The assembled machine has the same technical specifications as the D 10 steam engine and has enough power to drive several models from the Wilesco program. The kit can also be easily assembled by an inexperienced steam enthusiast using the illustrated assembly instructions. Base dimensions: 260 x 200 mm, height: 240 mm, weight: 1.3 kg.

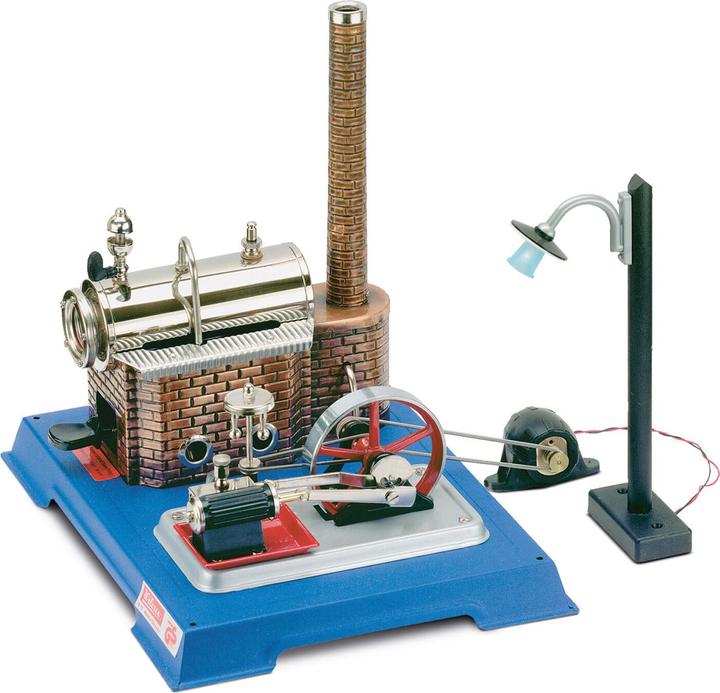

3. Wilesco Steam engine with steam chimney

Together with the popular entry-level model D10, you receive the dynamo with a lantern. The LED of the lantern glows softly during the operation of the steam engine. Additional lanterns can be added. As a set, this Electric-light Edition is an affordable complete set with a high play effect and educational value. The steam engine can also be expanded with a transmission (e.g., M55) and other Wilesco drive models.

4. Wilesco D5 Kit: steam engine

The Wilesco steam engine D6 features a highly polished and nickel-plated brass boiler, as well as an oscillating cylinder. The water level indicator is designed as a sight glass, allowing for constant monitoring of the water level during operation. The boiler capacity is 135 cm³ with a boiler size of 100 x 45 mm. The flywheel of this machine, with a diameter of 70 mm, ensures smooth operation. The attached dome steam whistle can be operated at any time during use via a special lever. Its lovely sound is reminiscent of Emma, the locomotive from "Jim Button and Luke the Engine Driver." When assembling the lever for the steam whistle of your D6, please ensure that the lever, made of black, heat-resistant plastic, points outward so that you can operate the lever during use without touching the boiler.

5. Wilesco D165 Steam engine, economy set

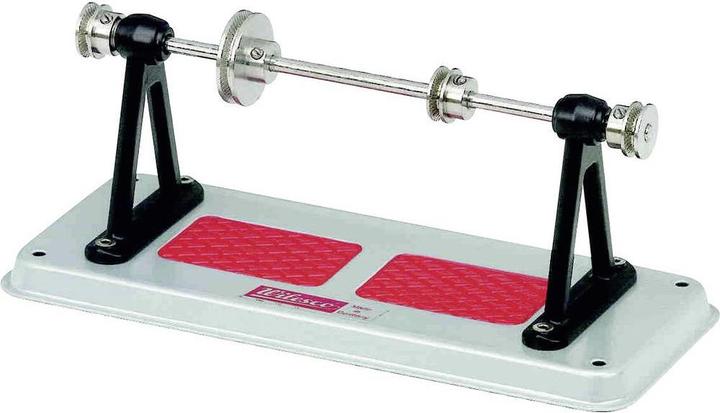

6. Wilesco Small transmission M55

The Little Transmission M55 from Wilesco is a high-quality vehicle kit specifically designed for model building. Made from robust steel and zinc die-cast, this kit provides a solid foundation for creative construction projects. With four adjustable drive discs on the axle, the transmission allows for flexible adaptation to various requirements. This model is ideal for beginners and offers an exciting way to learn the fundamentals of model building. The careful craftsmanship and use of durable materials guarantee high quality and longevity of the product. The Little Transmission M55 is not just a toy, but also an educational tool that promotes motor skills and technical understanding. It is important that the product is used under adult supervision to ensure user safety.

- Massive bearing blocks made of zinc die-cast for stability and durability
- Four adjustable drive discs for adaptation to various applications
- Made in Germany with high-quality materials
- Promotes motor skills and technical understanding.


7. Wilesco Steam engine D4

Wilesco presents the D4 steam engine, another model powered by candles. The highly polished brass boiler generates the steam pressure to drive the small and delicate flywheel. The black, fireproof base, featuring beautiful details, is mounted on an elegant wooden plate. With its laser-cut contours, this model is a gem from every angle. The operation with special beeswax candles creates a cozy atmosphere that captivates everyone. Cleaning the model is also simple, as the unit can be easily detached from the wooden plate.

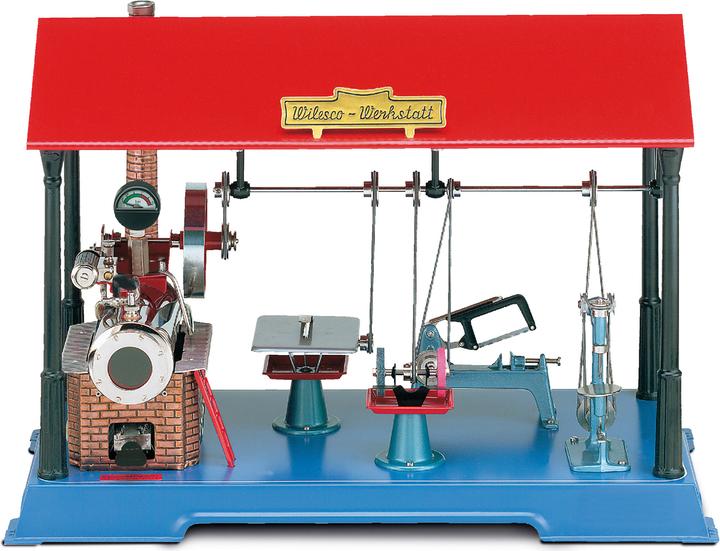

8. Wilesco D141 Steam engine factory

A remarkable model that represents the original form of all operating models from the early days of steam technology in the 19th century. A variety of mechanics is presented in a compact manner within a small space: the steam engine D 14 (with manometer and steam shut-off valve), four corresponding machines - circular saw M 53, grinding bench M 52, band saw M 60, and drill M 51, a transmission mounted on the hall ceiling, and a protective roof resting on four columns designed in the style of that era.

Base dimensions: 230 x 440 mm
Height: 320 mm
Weight: 3.8 kg.


9. Wilesco D14 Steam engine

Space-saving steam engine D14

This stationary model is a space-saving steam engine. The D14 is the only one in Wilesco's range of model steam engines to have the
power unit built on top of the boiler. The boiler measures 140 x 55 mm with a volume of 250 cm³, and the heavy flywheel has a diameter of 80 mm, ensuring a powerful operating time per boiler filling. This model, heated with Witabs dry fuel, also has a particularly long running time. During operation, the power machine runs smoothly and almost without vibrations. The dome steam whistle, operated by a small lever, produces sounds during operation. The condensate is discharged into a condensation water tray underneath the chimney, allowing real "smoke" (steam) to come out of the chimney, adding a very authentic touch to the experience.

Please ensure that the steam engine is not operated without sufficient water in the boiler; the water level must always be visible in the sight glass at least at the bottom edge.

Tips for operating your Wilesco D14 power engine:

Regular oiling is necessary even when there is no steam pressure in the boiler and the model has cooled down. To do this, unscrew the oil filler plug and pour in Wilesco steam engine oil, turning the flywheel several times to suck in the oil. It is recommended to oil the D14 every time you fill it with fuel to prevent the piston from seizing up. Experience shows that 2 to 3 drops of Wilesco steam engine oil are sufficient for approximately 10 minutes of operation. All bearings and joints should also be lightly oiled to ensure a long service life for your D14 and lasting steam fun.

More details about the steam engine model D14:

- Spring safety valve
- Dome steam whistle
- Steam jet oiler
- Base dimension: 140 x 200 mm
- Height: 27 cm
- Net weight: 1.060 kg
- Heating: dry fuel
- Boiler volume: 250 cm³.


10. Wilesco D11 Steam engine

Kit D11

The new D11 kit from Wilesco and Tronico combines the steam engine with the popular metal construction kits. Bring your Tronico creations to life!

The
D11 model consists of the steam engine kit D9 and a large extended base plate. On the base plate, metal kits from Tronico can be assembled, and we supply the D11 complete with a kit for an oil pump replica.

Tronico metal construction kit components for an oil pump

The D11 model is complemented by a set of over 300 parts from the popular Tronico metal construction kits. From this set, you can create a replica of an oil pump. Connected to the flywheel of the steam engine, the oil pump begins to move and tirelessly drills for oil.

Assembly and operation of the D11 kit

This unique combination is fueled with our dry fuel Witabs, and a pack of Witabs is already included in the delivery.

The included, richly illustrated description guides the user step by step to a complete steam model, which can be modified repeatedly. A pictorial instruction for assembling the oil pump is also included.

The base plate serves as a platform for creative crafting and building of additional models; in our product range, you will also find a crane extension for the D11 model.

Size: (Length x Width x Height) 230 mm x 400 mm x 100 mm

Weight: 3.08 kg.
