Best selling Power inverters from Wago
This page always stays fresh and updates automatically.

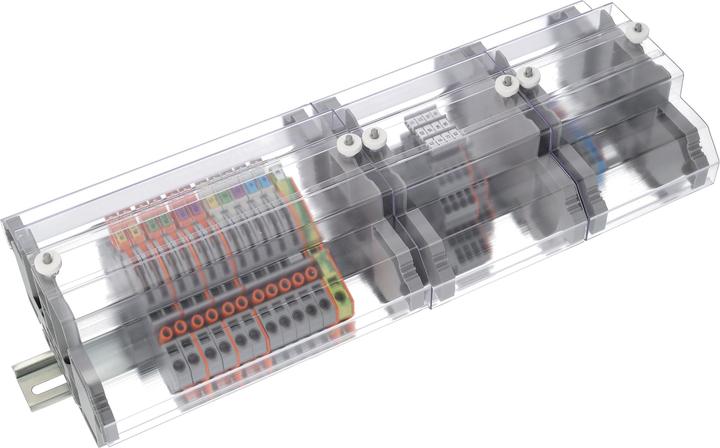

1. Wago Stromwandlerklemmenblock
The Wago current transformer terminal block, model 821-218, is an innovative solution for electrical installations that ensures a faultless connection. Equipped with advanced Push-in CAGE CLAMP® technology, this terminal block allows for easy and secure connections for all types of conductors. The ability to connect both solid and stranded conductors without additional tools enhances installation efficiency. With a compact design measuring 420 mm in width, 159 mm in height, and 105 mm in depth, the terminal block is ideal for mounting on DIN rails. Additionally, it offers an operating temperature range of -35 to 85 °C, making it suitable for various applications in electrical installations. The integrated test socket provides added safety and functionality, while the multicolored design allows for easy identification of connections.
- Push-in CAGE CLAMP® technology for easy installation
- Suitable for solid and stranded conductors without tools
- Integrated test socket for additional safety
- Operating temperature range of -35 to 85 °C for versatile applications.
2. Wago Cable conversion current transformer
WAGO GmbH & Co. KG Cable conversion current transformer 855-5001/250-001 Manufacturer: WAGO GmbH & Co. KG Designation: Cable conversion current transformer Type: 855-5001/250-001 Design: Cable conversion current transformer Primary rated current In: 250 A Secondary rated current: 1 A Secondary rated apparent power: 0.5 VA Overcurrent limiting factor: FS 5 Calibrated: no With contact hazard protection: yes Opening diameter: 42 mm Snap-on mounting: yes With copper rail: no Secondary connection: Plug-in connection Number of primary inputs: 1WAGO GmbH & Co. KG Cable conversion current transformer 855-5001/250-001: more detailsCable conversion current transformer Primary rated current 250 A Secondary rated current 1 A Rated power 0.5 VA Accuracy class 1 Cable length 5 m , EAN: 4055143163064

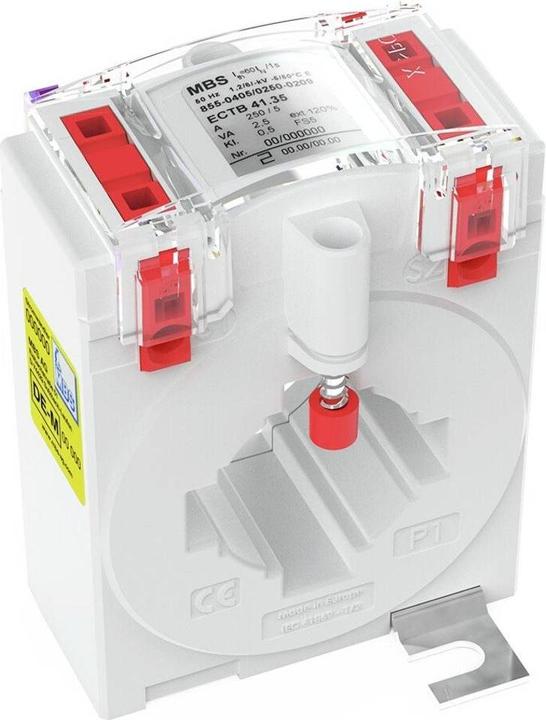

3. Wago Aufsteck-Stromwandler
The plug-in current transformer of the 855 series from Wago is a highly advanced device specifically designed for billing measurement in alternating current networks. This inductive single-phase current transformer operates on the transformer principle and provides precise current measurement. With an output current of 5 amperes, it is ideal for applications that require reliable and accurate current measurement. The Wago plug-in current transformer meets the requirements of Module D of the conformity assessment procedure, making it suitable for billing purposes. Its compact dimensions and thoughtful design allow for easy integration into existing systems, while the robust housing ensures durability. This current transformer is an excellent choice for professionals who value quality and precision.
- Inductive single-phase current transformer for precise measurements
- Suitable for alternating current networks and billing purposes
- Meets Module D of the conformity assessment procedure
- Compact design for easy integration.
4. Wago Rogowski coil diameter 70 mm Length of signal cable 1.5 m
Rogowski Coil
Primary rated current 1000 A
Output signal 22.5 mV per kA
Cable length 1.5 m
Opening for measuring conductor 70 mm
Short description:
Rogowski coils are used for measuring AC currents and are particularly suitable for retrofitting in existing systems. The split coil body allows for installation around the primary conductor, whether it is a busbar or round conductor. The Rogowski coils can be connected to WAGO products 857-552, 750-495/000-002, 2857-570/024-000. A sealable bayonet lock and mounting tabs for cable ties enable easy installation.

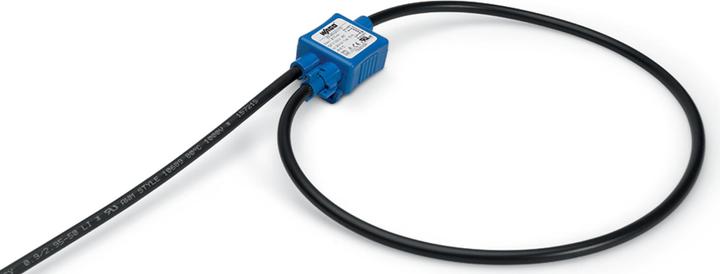

5. Wago Rogowski coil 855-9450/2000-1751D175 mm Length of signalling cable 4
Rogowski Coil
Primary rated current 1000 A
Output signal 22.5 mV per kA
Cable length 4.5 m
Opening for measuring conductor 175 mm
Short description:
Rogowski coils are used for measuring AC currents and are particularly suitable for retrofitting in existing systems. The split coil body allows for installation around the primary conductor, whether it be a busbar or round conductor. The Rogowski coils are compatible with WAGO products. A sealable bayonet lock and mounting tabs for cable ties facilitate easy installation.
6. Wago 855-2701/064-001 Current transformer
The plug-in current transformers of series 855 are inductive, operating on the transformer principle, single-conductor current transformers. Due to the measurement principle applied, current transformers of this type are suitable for exclusive use in alternating current networks.
7. Wago 855-3001/060-003 Current transformer
The compact split cable conversion current transformers are specifically designed for retrofitting in existing systems. Cable conversion current transformers are particularly useful in cases where the current path must not be interrupted. The accuracy of the cable conversion current transformer results in particularly precise current measurements. The cable conversion current transformers can handle the specified rated power at the end of the cable. All transformers are equipped with color-coded cables. Two included UV-resistant cable ties ensure secure and easy installation.
8. Wago Transducer
The WAGO DC-DC converter is a compact voltage converter specifically designed for converting direct current. With an input voltage of 24 V and an output voltage of 5 V, this device is ideal for applications that require a reliable power supply. The converter offers a maximum output power of up to 12 W and an output current of 0.5 A, making it an efficient solution for various electronic devices. Thanks to the integrated DC-OK contact, the output voltage can be monitored, providing additional safety and control. The compact design of the converter allows for easy integration into existing systems, while the extensive approval package opens up a wide range of applications.
- Compact 6 mm housing for easy integration
- Maximum output power of up to 12 W
- DC-OK contact for monitoring the output voltage
- Bridgeable to devices from series 857 and 2857
- Extensive approval package for versatile applications.
9. Wago 855-5005/600-000 Current transformer
The compact split-core current transformers are specifically designed for retrofitting in existing systems. These current transformers are particularly useful in situations where the current path must not be interrupted. The accuracy of the current transformer results in especially precise current measurements. The current transformers can handle the specified rated power at the end of the cable. All transformers are designed with color-coded cables. Two included UV-resistant cable ties ensure secure and easy installation.
10. Wago 855-305/060-101 Current transformer Primary current:60 A Secondary current:5 A Conductor bushing
The plug-in current transformers of series 855 are inductive, operating on the transformer principle, single-conductor current transformers. Due to the applied measurement principle, current transformers of this type are suitable for exclusive use in alternating current networks.
Power inverters
CHF34.95
Wago 855-305/060-101 Current transformer Primary current:60 A Secondary current:5 A Conductor bushing
