PoE injector
CHF15.90
Alfa Network APOE03G - Passive Gigabit PoE Injector
802.3af (PoE), 802.3at (PoE+)
Best selling PoE injectors from Alfa Network
This page always stays fresh and updates automatically.
1. Alfa Network APOE03G - Passive Gigabit PoE Injector
Single-port passive Gigabit redundant PoE midspan/injector
The APOE03G is a single-port Gigabit (10/100/1000 Base-T) redundant PoE midspan/injector that provides DC power for PoE equipped network appliance devices. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8).
The APOE03G features a terminal block for power redundancy. The power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT administrator who does not want to have their sleep or weekend interrupted by an untimely service call caused by a finicky power supply.
Input:
- Input voltage: 5 to 57 V DC, nominal = 48 V DC
General description:
- Operating temperature: -0°C to 40°C
- Storage temperature: -20°C to 60°C
- Operating humidity: 10 to 80% non-condensing
- RJ-45 connector pinout:
- DC power plug diameter: 2.1 / 5.5, length: 12 +/- 0.5 mm
- DC power plug polarity: Inside (+), outside (-)
Mechanical and dimensions:
- Plastic case material: ABS
- Plastic case finish: Texture
- Plastic case color: Black
- Plastic case dimensions: 67 x 67 x 24 mm
- Weight: 40 g.
2. Alfa Network APOE03
Alfa APOE03 - Redundant Industrial PoE Injector
The APOE03 Power over Ethernet (PoE) Passive Injector delivers both data and power to passive PoE devices over a single Ethernet cable. With PoE, you have the option to power an Ethernet device, such as a wireless access point or an IP camera, with both data and electricity through one line. The installation of the APOE03 is straightforward and requires no software. The APOE03 is compatible with all 5 V DC, 12 V DC, 24 V DC, 48 V DC, 57 V DC (max. 48 W) passive PoE devices.
Product Features:
- Supports Fast Ethernet Passive PoE devices (Pin 1/2/3/4: Data, Pin 4/5/7/8: Power)
- Supplies passive PoE devices with both data and power
- Supports a variety of input and output voltages (5 - 57 V at max. 48 W)
- Dual power supply - 3-pin screw terminal and power connector
- Wall mountable
- Power: PIN 4/5, 7/8
- Data: PIN 1/2, 3/6
- Data input: Connects PC/HUB/Switch
- Ethernet data rate: 10/100 TX Mbps
- Ethernet cable: Cat.5 / Cat.5e / Cat.6
- Ethernet cable connection: RJ45
- Supported input voltage: 5 - 57 V (max. 48 W)
- Supported output voltage: 5 - 57 V (max. 48 W)
- Built-in LED indicators: Power supply
- Operating temperature: -0°C to 40°C
- Storage temperature: -20°C to 60°C
- Operating humidity: 10% to 80% non-condensing
- Power supply: 110 - 220 V AC; 5 - 57 V DC input
- Dimensions: 67 x 67 x 24 mm (W x L x H)
- Weight: 40 g.
PoE injector
Quantity discount
CHF11.60 per piece for 2 units
Alfa Network APOE03
Passive 24V PoE-in, 48 W
3. Alfa Network Alfa PD-1000T PoE Splitter
4. Alfa Network PD-1000DM - PD1000-DM - 802.3at Gigabit Switchable Surge Protection PoE Module
The PD-1000DM from Alfa Network is an active PoE injector specifically designed to power Ethernet devices such as IP phones, Wi-Fi access points, and internet cameras. Supporting the IEEE 802.3at/af standards, this module allows for the transmission of power and data over a single Ethernet cable. It offers an adjustable output voltage of 5 V, 9 V, 12 V, and 18 V, enabling flexible adaptation to various devices. Additionally, the integrated surge protection technology with +/-15 kV isolation provides extra safety. The PD-1000DM supports Gigabit Ethernet, making it ideal for modern network applications. With a compact design and an operating temperature range of 0°C to 40°C, this PoE module is both powerful and reliable.
- Adjustable output voltage from 5 V to 18 V
- Supports IEEE 802.3at/af for PoE applications
- Integrated surge protection with +/-15 kV
- Compatible with Gigabit Ethernet for high data transfer rates.
PoE injector
CHF21.70
Alfa Network PD-1000DM - PD1000-DM - 802.3at Gigabit Switchable Surge Protection PoE Module
802.3af (PoE), 802.3at (PoE+)
5. Alfa Network APOE03GR - Passive PoE Injector with Reset Function
Single-Port Passive Gigabit Redundant PoE Midspan/Injector with Reset Function
The APOE03GR is a single-port Gigabit ( 10/100/1000 Base-T) redundant PoE Midspan/Injector with Reset function that provides DC power for PoE equipped Network Appliance devices. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8). The Reset button feature only works with certain ALFA models.
The APOE03GR features terminal block for Power redundancy, the power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT administrator who just doesn't want to have his sleep or his weekend interrupted by an untimely service call caused by a finicky power supply.
** PD-side Reset circuit available upon request **
Input:
- Input voltage: 5 to 57 V dc, nominal = 48 V dc
General description:
- Operation temperature: -0°C ~ 40°C
- Storage temperature: -20°C ~ 60°C
- Operation humidity: 10 ~ 80 % non-condensing
- RJ-45 connector pinout:
- DC power plug diameter: 2.1 / 5.5, length: 12 +/- 0.5 mm
- DC power plug polarity: Inside (+), outside (-)
Mechanical and dimension:
- Plastic case material: ABS
- Plastic case finish: Texture
- Plastic case color: Black
- Plastic case dimension: 67 x 67 x 24 mm
- Weight: 40 g.
6. Alfa Network Alfa 8-Port Passive PoE Injector Gigabit APOE08G
The Alfa 8-Port Passive PoE Injector Gigabit APOE08G is a reliable solution for powering network devices over Ethernet cables. With the ability to power up to eight devices simultaneously, this passive PoE injector offers an efficient way to optimize the installation of IP cameras, access points, and other PoE-enabled devices. The injector supports speeds of up to 1 Gbps, ensuring fast and stable data transmission. Thanks to its compact design and robust construction, it is ideal for use in various environments, whether in the office, at home, or in industrial applications. The Alfa APOE08G is easy to install and requires no additional software or configuration, making it a user-friendly choice for network administrators and tech enthusiasts.
- Supports up to 8 PoE-enabled devices simultaneously
- Maximum port speed of 1 Gbps for fast data transmission
- Easy installation without additional software or configuration
- Robust construction for use in various environments.
7. Alfa Network APOE08 - 8 Ports Passive PoE Injector
Alfa APoE08, 8 Ports Passive PoE Injector
Simply power up to 8 passive PoE devices using one power source. It can be powered by a DC jack or terminal block connector. The on/off switch helps save electricity when not in use. This device is suitable for applications such as access points, IP cameras, and IP phones.
Model: APoE08
Input power: 12 V DC - 48 V DC
Output power: Depends on input power
Connector:
Data In: RJ45
Power In: DC jack or terminal block connector
Data+Power Out: RJ45
Switch button: On / off
DC plug connector: 2.1 x 5.5 mm
Data rate: 10/100 Mbps
RJ45 Pin definition:
Data: 1, 2, 3, 6
Power: (+) 4, 5 / (-) 7, 8.
8. Alfa Network Alfa 8-Port Passive PoE Injector APOE08
9. Alfa Network Alfa Passive PoE Adapter APOE01
PoE injector
Quantity discount
CHF10.30 per piece for 2 units
Alfa Network Alfa Passive PoE Adapter APOE01

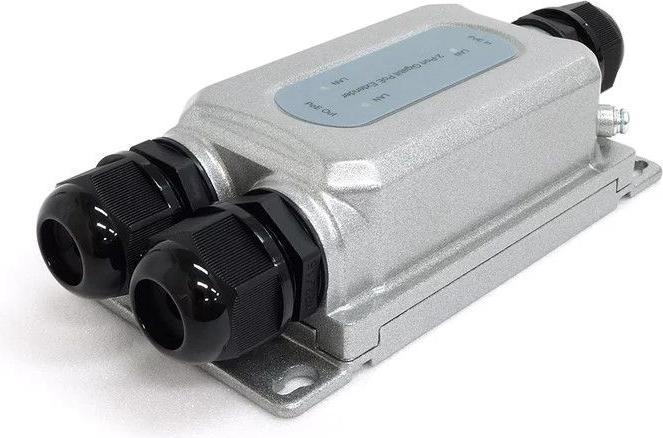

10. Alfa Network Alfa PDG-EX2 PoE Extender
