On this page you’ll find a ranking of the best Network cables from Niedax. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

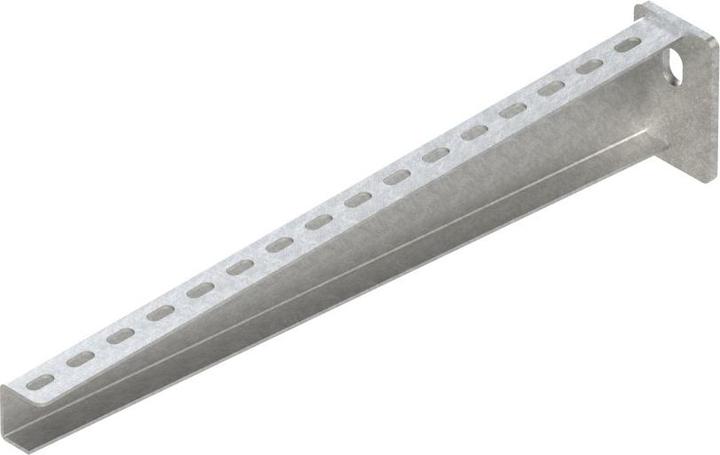

1. Niedax Wall bracket KTA 350
Niedax wall bracket KTA 350
Manufacturer: Niedax
Designation: Wall bracket
Type: KTA 350
Length: 360 mm
Width: 50 mm
Height: 65 mm
Suitable for cable support system width: 50 to 350 mm
Design: Wall and pole bracket
Angle: 90°
Load capacity: 2.5 kN
Suitable for functional integrity: No
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised
The Niedax wall bracket KTA 350 includes a hanging post and wall bracket, designed for wall and hanging post mounting, with galvanised proportionate fixing accessories. The load capacity data are only valid with sufficient anchoring to the load-bearing substrate or with mounting to suspended standards in accordance with regulations. VDE certified!
Dimensions (approx.):
Support height: 65 mm
Support length: 360 mm
Load capacity at L/2: 2.5 kN tested in the system
Material cantilever: Steel, hot-dip galvanised according to DIN EN ISO 1461.

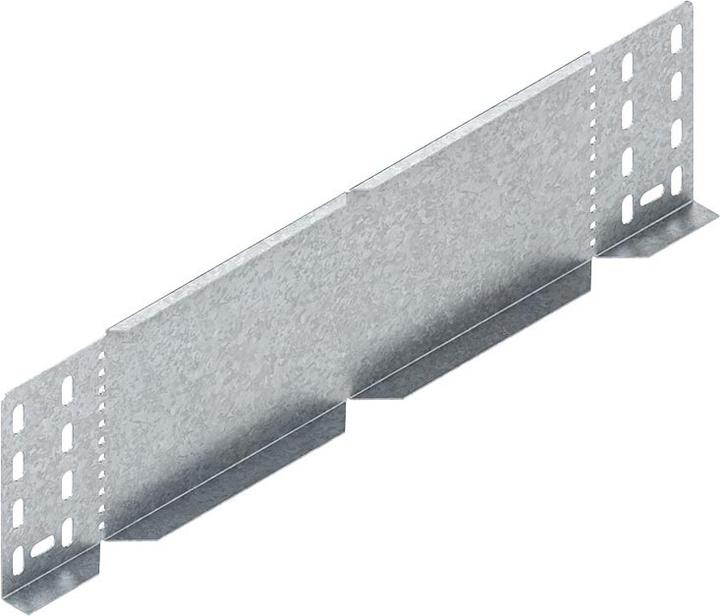

2. Niedax Reducing angle RAW 110.100 RLRLVRS Connector for cable support system 4013339764204
The RAW 110.100 reducer/closure angle from Niedax is a versatile connection element for cable tray systems. This product serves both as an end closure for cable trays and for reducing and expanding continuous cable trays. It also allows for horizontal directional changes, making the installation and adjustment of cable systems easier. Made from strip-galvanized steel according to DIN EN 10346, the angle offers high resistance and durability. With an edge height of 110 mm and a reduction dimension of 100 mm, this product is ideal for walkable cable trays. The delivery includes the reducer/closure angle piece as well as the necessary mounting accessories, simplifying installation and saving time.
- Made from strip-galvanized steel according to DIN EN 10346 for increased corrosion resistance
- Suitable for cable trays with an edge height of 110 mm
- Allows for horizontal directional changes in cable tray systems
- Delivery includes the necessary mounting accessories.
Network cables
CHF21.90 CHF98.65/1m
Niedax Reducing angle RAW 110.100 RLRLVRS Connector for cable support system 4013339764204
0.22 m
3. Niedax Anchor channel 2970/300-2 SL
Niedax Anchor Rail 2970/300-2 SL
Manufacturer: Niedax
Description: Anchor Rail
Type: 2970/300-2 SL
Length: 300 mm
Width: 30 mm
Height: 15 mm
Slot Width: 16 mm
Material Thickness: 1.5 mm
Profile Shape: C-Profile
Design: Simple Profile
Type of Perforation: Back Perforated
Hole Width: 6.5 mm
With Notching: No
Breakable: No
Moment of Inertia ly: 0.28 cm4
Moment of Inertia lz: 1.22 cm4
Section Modulus Wy: 0.31 cm³
Section Modulus Wz: 0.81 cm³
Suitable for Function Maintenance: Yes
Material: Steel
Material Quality: Other
Surface Protection: Hot-Dip Galvanized
Weight: 0.2256 kg
Niedax Anchor Rail 2970/300-2 SL: Additional Details
Anchor/Profile Rail Model 2970, C-Profile according to DIN EN 60715, with two end perforations. Compatible clamping brackets available. Please observe additional regulations for use in function maintenance! The attachment of the anchor/profile rail to the foundation and the fastening distances can be found in the valid test certificate!
Dimensions (approx. measurements) H x W x t: 15 x 30 x 1.5 mm
Slot Width: 16 mm
End Perforations: Ø 6.5 mm
Distance to Profile Ends: 15.5 mm
Delivery Length L: 300 mm
Material: Steel, hot-dip galvanized according to DIN EN 10346.

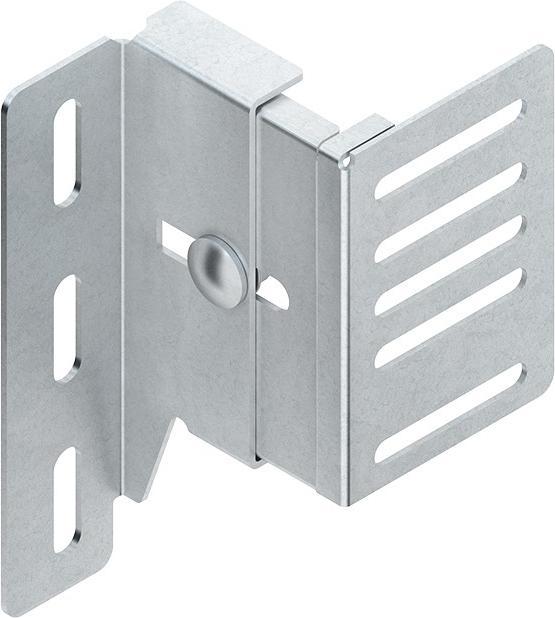

4. Niedax Mounting bracket GBKV 120-180
Universal wall console, adjustable, suitable for the installation of complete parapet systems. The hole pattern of 7x50 mm on the connection side of the wall console corresponds to the back system hole pattern of the device channel bases. In combination with profile holder GKH and convection grille profiles GKS and GKG, a flush installation with the window sill of 22.5 mm is possible, including fastening screws ZKM 6X16 for channel installation. For device channel bases GKU and DKU, the wall distance is 120 to 184 mm, the construction height is 104 mm, and the standard support distance is 600 mm. The material of the wall console is steel, strip galvanized according to DIN EN 10346. The material of the screws is steel, electro-galvanized according to DIN EN ISO 4042.

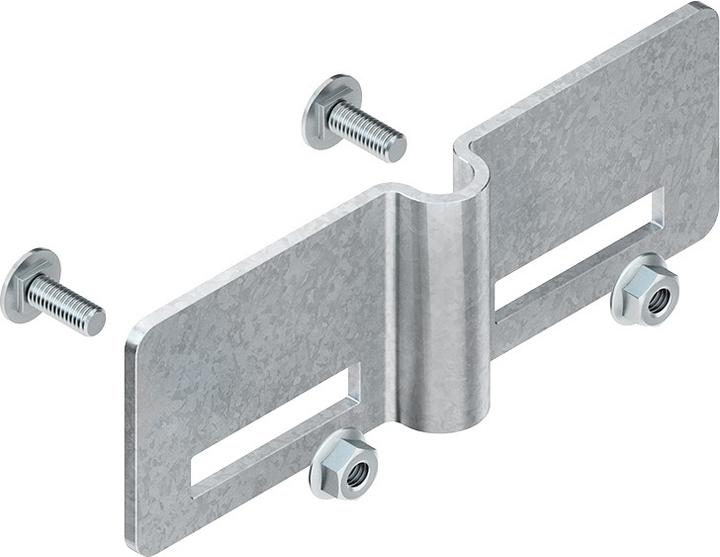

5. Niedax Mounting bracket RGAB 12 F
Niedax mounting bracket RGAB 12 F
Manufacturer: Niedax
Designation: Mounting bracket
Type: RGAB 12 F
Design: Vertical
Panel height: 50 mm
Panel width: 146 mm
Type of fastening: Screw fastening
Material: Stainless steel
Material grade: Other
Surface protection: Hot-dip galvanised
Niedax mounting bracket RGAB 12 F: further details
Mounting bracket for flange mounting, for mounting threaded rod M 12 on the cable tray spar in the immediate vicinity of the bracket, including hot-dip galvanised proportionate fixing accessories. For use in functional maintenance or for suspended ceilings with fire protection requirements, please observe additional regulations.
For cable trays (MLAR system): RLC 60, OV RS 60.
Dimensions (approx.):
Height H: 50 mm
Length L: 146 mm
Material thickness t: 3 mm
For threaded rod: M 12
Material: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339947218.

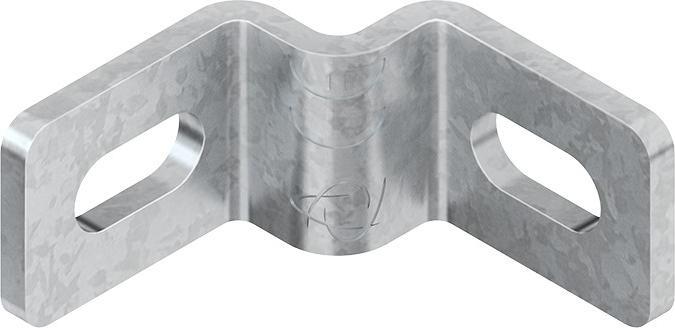

6. Niedax Wall connection angle WWI 80
Niedax Wall Connection Angle WWI 80
Manufacturer: Niedax
Designation: Wall Connection Angle
Type: WWI 80
Suitable for: I-Profile
Design: Wall Connection Angle
With screw accessories: yes
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
The Niedax Wall Connection Angle WWI 80 is an equal-legged wall connection angle designed for wall mounting of I 80 profiles, including hot-dip galvanized, proportionate fastening accessories. Please observe additional regulations for use in maintaining functionality!
Usage for:
- Profile I 80
- Hanging stem HI 80
- Cable ladder STIW 40
- STIC 86
Dimensions (approximate):
Leg length: 68 x 68 mm
Width B: 35 mm
Material thickness t: 5 mm
Fastening hole: 13 x 26 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
7. Niedax Cantilever mounting strip galvanised GTWAB 50 S
Niedax bracket fastening GTWAB 50 S
Manufacturer: Niedax
Designation: Bracket fastening strip, galvanised
Type: GTWAB 50 S
Suitable for cable support system width: 50 to 100 mm
Suitable for cable support system height: 105 mm
Design: Other
Suitable for mesh cable tray: Yes
Suitable for cable ladder: No
Suitable for cable tray: No
Tray fastening: Screwless
Suitable for function maintenance: No
Material: Steel
Material grade: Other
Surface protection: Strip galvanised
Further details: Mesh cable tray wall and bracket fastening, for wall fastening of mesh cable trays and for fastening mesh cable trays on brackets. Suitable for mesh cable tray MTC to MTCG 50.100.
Dimensions (approx.): H x W x L: 38 x 38 x 30 mm
Fixing holes: 7 x 14 mm
Material: Steel, strip galvanised according to DIN EN 10346
EAN: 4013339058990.
Network cables
Quantity discount
CHF11.70 per piece for 2 units
Niedax Cantilever mounting strip galvanised GTWAB 50 S

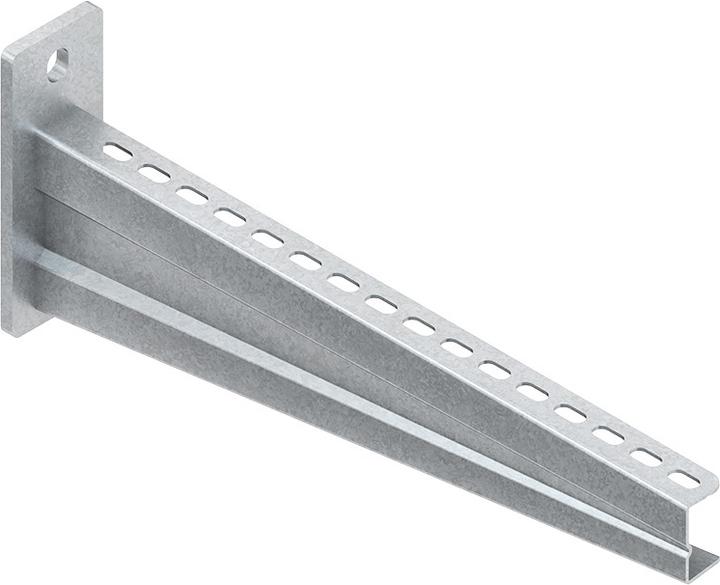

8. Niedax Wall bracket KTAS 500
Niedax wall bracket KTAS 500
Manufacturer: Niedax
Designation: Wall bracket
Type: KTAS 500
Length: 530 mm
Width: 28 mm
Height: 150 mm
Suitable for cable support system width: 50 to 500 mm
Design: Wall and support bracket
Angle: 90°
Load capacity: 5 kN
Suitable for functional integrity: No
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised
Niedax wall bracket KTAS 500: further details
Suspended support bracket, heavy, for wall and suspended support bracket mounting. Please order required fixing accessories for cable trays and conductors separately. The load-bearing capacity data only apply if anchored sufficiently to the load-bearing substrate or if mounted on suspended supports in accordance with regulations.
Dimensions (approx. dimensions)
Support height: 150 mm
Support length: 530 mm
Load capacity at L/2: 5 kN tested in system
Material outrigger: Steel, hot-dip galvanised according to DIN EN ISO 1461.
9. Niedax Wall bracket KTAS 800 Bracket for cable support system 4013339189007
The KTAS 800 wall bracket from Niedax is a robust and reliable solution for the installation of cable support systems. This hanging pole and wall bracket is specifically designed for wall and hanging pole mounting, offering a high load capacity that is ensured with proper installation and adequate anchoring to the supporting substrate. The bracket is made of high-quality steel and is hot-dip galvanized, making it particularly resistant to corrosion. With a support height of 195 mm and a support length of 830 mm, the KTAS 800 is ideal for various applications in cable routing. Please note that the necessary mounting accessories for cable trays and ladders must be ordered separately. This wall bracket is an excellent choice for anyone looking for a durable and secure solution for their cable support structures.
- Made of hot-dip galvanized steel according to DIN EN ISO 1461 for increased corrosion resistance
- High load capacity of up to 5 kN with proper installation
- Suitable for wall and hanging pole mounting
- Required mounting accessories must be ordered separately.
Network cables
−10%
CHF46.90 was CHF51.90 CHF56.51/1m
Niedax Wall bracket KTAS 800 Bracket for cable support system 4013339189007
0.83 m

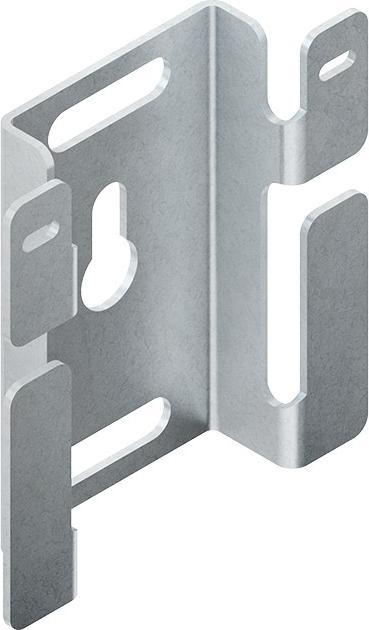

10. Niedax Mounting bracket
Mounting bracket for screwless wall mounting (hanging) of gutter trays with a width of 100 mm and at least two lateral longitudinal wires with a center distance of 25 mm and 50 mm, for central threaded rod suspension M 10 of gutter trays up to a width of 300 mm and at least two longitudinal wires in the base with a center distance of 25 mm and 50 mm. Suitable for gutter trays with wire diameter of 5 mm. Wall mounting use: GR 60.100, GRS 60.100, GRC 60.100, MTC 54.050 (wall mounting only), MTC 54.100, MTC 105.100, MTCG 50.100. Central suspension use: GR 60.100 - ... .300, GRS 60.100 - ... .300, GRC 60.100 - ... .300, MTC 54.100 - ... .300, MTC 105.100 - ... .300, MTCG 50.100. Dimensions (approx. measurements) Height H x Width B x Depth T: 75 x 45 x 16 mm. Horizontal fastening holes: 7 x 25 mm. Keyhole: 7 x 22 mm, Ø 11.5 mm. Material: Steel, strip galvanized according to DIN EN 10346.
