Best selling Network cables from Leoni
On this page you’ll find a ranking of the best Network cables from Leoni. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Leoni MegaLine F6-90 S/F H AWG 23 4P, 1000 m reel
Halogen-free S/FTP data cable with pair shield and overall shield, suitable for transmission up to 1000 MHz. Better than category 7 according to EN50173 or ISO/IEC 11801. Features 4 pairs AWG23/1-PiMF wire with a maximum diameter of 1.4 mm, pair shield made of aluminium-laminated polyester foil, metal side outside, and overall shield with tinned copper braiding. Optical coverage is approximately 65%. Skew at 100 MHz (reference value) is 5 ns/100 m. Coupling resistance at 10 MHz (nominal value) is 5 mOhm/m. Shielding effectiveness up to 1000 MHz (nominal value) is 70 dB. Interference power suppression up to 1000 MHz (nominal value) is 85 dB. Heavy metal-free according to RoHS. Fire behaviour: Flame resistance according to IEC 60332-3-24. Halogen-free according to IEC 60754-1/2. Smoke density according to IEC 61034-1/2. Fire load value is 0.6 MJ/m.
2. Leoni SF/UTP patch cable
The SF/UTP patch cable from Leoni is a high-quality network cable designed for reliable data transmission in various applications. It is a shielded cable that is pre-terminated on both ends and equipped with HiRose RJ-45 TM11 connectors. This cable offers high flexibility and is ideal for use in networks that require high bandwidth. The use of halogen-free materials provides additional safety, especially in environments where fire protection is a concern. With an impedance of 100 Ohms and a frequency of up to 100 megahertz, this cable is capable of ensuring a stable connection. It is certified for category 5e, making it suitable for a wide range of network applications.
- Pre-terminated shielded cable with HiRose RJ-45 TM11 connectors on both ends
- Halogen-free material for increased safety
- 100 Ohm impedance for stable data transmission
- Suitable for high bandwidth network applications
- S/FTP shielding to reduce interference.
3. Leoni S/FTP PiMF patch cable
The S/FTP PiMF patch cable from Leoni is a high-quality network cable designed for reliable data transmission in demanding environments. With a length of 20 meters, it offers ample flexibility for various installations. The cable is equipped with shielded RJ-45 HiRose TM31 Class EA connectors, ensuring a secure connection. The special PiMF shielding effectively reduces electromagnetic interference, enhancing signal quality. Additionally, the cable is halogen-free, flame-retardant, and low-smoke, making it a safe choice for use in public and commercial buildings. The pinout follows a 1:1 configuration according to EIA/TIA standards, ensuring compatibility with existing network systems. This patch cable is ideal for applications requiring high transmission rates and a stable connection.
- Halogen-free, flame-retardant, and low-smoke for increased safety
- Special shielding (PiMF) to reduce electromagnetic interference
- Both ends terminated with shielded RJ-45 HiRose TM31 connectors
- 1:1 pinout according to EIA/TIA for easy integration
- Cable design with LSOH outer sheath for environmentally friendly applications.

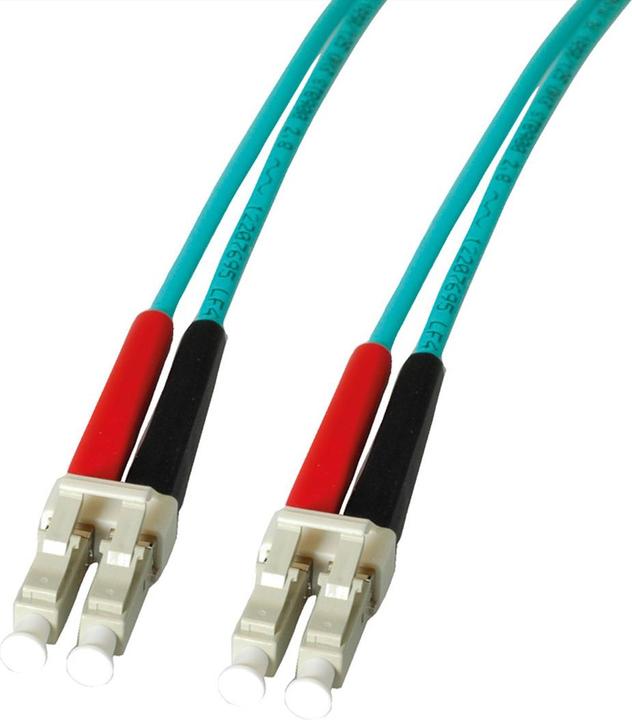

4. Leoni FO patch cable OM3
The Leoni OM3 LWL patch cable is a high-quality fiber optic cable designed for reliable data transmission in modern networks. It is a duplex cable with a fiber type of 50/125µm, carefully manufactured from materials sourced from brand-name manufacturers. The cable jacket is halogen-free and flame-retardant, providing additional safety. The use of aramid strain relief ensures high mechanical stability. Equipped with Suhner LC connectors that offer high load capacity, this cable allows for easy and secure connections. The ceramic ferrule and push-pull locking mechanism with twist protection guarantee reliable performance. The cable is available in various lengths to meet different requirements.
- Halogen-free and flame-retardant jacket for increased safety
- Aramid strain relief for improved mechanical stability
- Suhner LC connectors with high mechanical load capacity
- Ceramic ferrule for optimal signal transmission
- Available in various lengths, including custom lengths upon request.
5. Leoni Fiber optic patch cable OM4
The Leoni OM4 LWL patch cable is a high-quality fiber optic cable designed for reliable data transmission in modern networks. It is a duplex cable with a fiber type of 50/125µm, carefully manufactured from materials sourced from brand-name manufacturers. The cable's jacket is halogen-free and flame-retardant, providing additional safety in various applications. The use of aramid strain relief ensures high stability and durability of the cable. Equipped with ST and LC connectors from Suhner, the cable offers high mechanical load capacity and easy handling through the push-pull locking mechanism. This cable is ideal for use in demanding environments where reliable and fast data transmission is required.
- Halogen-free and flame-retardant jacket for increased safety
- Full conductor with aramid strain relief for additional stability
- Axially spring-loaded ST connectors with twist protection for easy handling
- SFF-LC connectors with high mechanical load capacity
- Suitable for multi-mode applications with OM4 fiber category.
6. Leoni MegaLine
KERPEN DATACOM MegaLine Patch Cable
Manufacturer: KERPEN DATACOM
Designation: MegaLine Patch Cable
Size: 7.5 m
Category: 6A (IEC)
The cable used is suitable for transmission rates of up to 500 MHz. The pair shielding and the heavily covered copper braid ensure excellent NEXT and return loss values. The patch and connection cables are equipped with a shielded RJ45 connector and molded strain relief on both ends.
Supported Standards: IEEE 802.3, 10Base-T, 100Base-T, 1000Base-T, 10GBase-T, IEEE 802.5 16MB, ISDN, FDDI, ATM
EAN: 4066449152881.

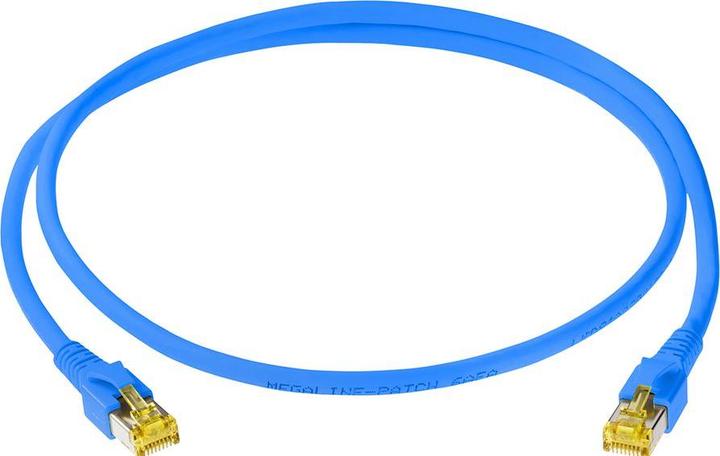

7. Leoni RJ45 cable, S/FTP, 10Gbps, CAT6a, RJ45 connector / RJ45 connector, 5m
The Leoni RJ45 cable is a high-quality copper cable designed for industrial Ethernet applications. With a transmission rate of up to 10 Gbps, it provides reliable and fast data transfer, which is essential for modern network requirements. The cable is rated CAT6a and features a shielded S/FTP construction that minimizes interference and enhances signal quality. At a length of 5 meters, it is ideal for various installations, whether in offices, data centers, or industrial environments. The use of LSZH material for insulation ensures additional safety, as it emits fewer harmful gases in the event of a fire. The RJ45 connectors at both ends guarantee a simple and secure connection to network devices.
- Transmission rate of up to 10 Gbps for fast data transfer
- S/FTP construction to minimize interference
- LSZH insulation for increased safety in case of fire hazards
- Suitable for industrial Ethernet applications
- Compatible with RJ45 connections for easy integration.
Network cables
CHF34.84 CHF120.14/1m
Leoni RJ45 cable, S/FTP, 10Gbps, CAT6a, RJ45 connector / RJ45 connector, 5m
CAT6a, 0.29 m
8. Leoni Pre-assembled fibre optic cable 9/125 um OS2 Duplex LC
The pre-assembled 9/125 µm OS2 Duplex LC fiber optic cable from Leoni is a reliable solution for high-speed data transmissions. With a length of 1 meter, this fiber optic cable is ideal for various applications in telecommunications and networking. It offers high transmission quality and is suitable for use in environments with operating temperatures ranging from -10 °C to 70 °C. The cable is equipped with an LC connector on one end and an SC connector on the other, allowing for flexible integration into existing systems. The use of single-mode fibers ensures efficient signal transmission over longer distances, while the yellow cable color facilitates easy identification in cable management.
- Operating temperature range of -10 °C to 70 °C for versatile applications
- Single-mode fibers for high transmission quality over longer distances
- LC and SC connectors for flexible connection options
- S/UTP shielding to reduce interference and disturbances.

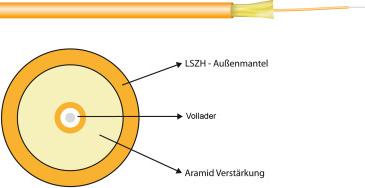

9. Leoni I-V(ZN)H 1G 50/125µ, OM3 simplex 2,8mm aqua, Inside buildings Tertiary cabling (Horizo
Leoni I-V(ZN)H 1G 50/125µ, OM3 simplex 2.8mm aqua, inside buildings tertiary cabling (horizontal): floor area FTTD shunting and adapter cable. Indoor cable, metal-free, halogen-free, suitable for high-quality connector configuration.
Network cables
CHF27.55
Leoni I-V(ZN)H 1G 50/125µ, OM3 simplex 2,8mm aqua, Inside buildings Tertiary cabling (Horizo
10. Leoni I-V(ZN)H 2x1E 9/125µ, OS2 ZIPCORD 1,8x3,7mm yellow, Inside buildings Tertiary cabling (H
The I-V(ZN)H 2x1E 9/125µ, OS2 ZIPCORD network cable from Leoni is specifically designed for tertiary cabling within buildings. With a robust design and halogen-free (LSHF) construction, this cable provides a reliable solution for data transmission in modern networks. The use of high-quality materials ensures high performance and durability, while the metal-free design offers additional safety and flexibility during installation. The cable is ideal for use in floor areas and is excellent for FTTD applications (Fiber to the Desk).
- Metal-free and halogen-free for increased safety
- Suitable for high-quality connectors
- Optimized for FTTD applications
- Robust design for indoor use.
Network cables
CHF27.60
Leoni I-V(ZN)H 2x1E 9/125µ, OS2 ZIPCORD 1,8x3,7mm yellow, Inside buildings Tertiary cabling (H
