Network cables
CHF10.43 CHF2.09/1m
Kabelschweiz RJ45 patch cable with CAT 7 raw cable PIMF
S/FTP, CAT7, 5 m
Best selling Network cables from Kabelschweiz
On this page you'll find a ranking of the best Kabelschweiz products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Kabelschweiz RJ45 patch cable with CAT 7 raw cable PIMF
- Assembled raw cable Cat 7, 600 MHz, S/FTP, PIMF, halogen-free
- Cat 7 tested up to 600 Mhz
- Connections: Cat. 6A (low-set), (500Mhz) RJ45 plug - RJ45 plug
- Assignment: TIA/EIA 568B
- Shielding structure: Aluminium foil 0.025mm/ 80x0.12mm
- Cable construction: AWG 26/7
- Core material: Copper
- Plug material: gold-plated 3µ
- Colour: white.

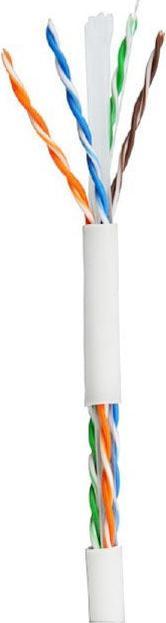

2. Kabelschweiz Verlegekabel CAT 6A UTP 23AWG 4 PAIR LSZH
Meet the highest demands for network performance with our Cat 6A UTP installation cable. With a wire diameter of 23 AWG and 4 pairs, this cable provides a premium solution for fast and reliable data transmission in both business and private networks.
Standards:
ANSI/TIA-568-C.2
IEC 61156-5
EN 50288-11-1
EN 50173
ISO/IEC 11801
EN 50575
Applications:
10BASE-T (IEEE 802.3)
4/16 Mbps Token Ring (IEEE 802.5)
100BASE-VG-AnyLAN
100 Mbps TP-PMD (ANSI X3T9.5)
100BASE-T (IEEE 802.3)
55/155 Mbps ATM
1000BASE-T (Gigabit Ethernet)
1.2 Gbps ATM
10G BASE-T.
Network cables
CHF158.– CHF0.52/1m
Kabelschweiz Verlegekabel CAT 6A UTP 23AWG 4 PAIR LSZH
UTP, CAT6a, 305 m

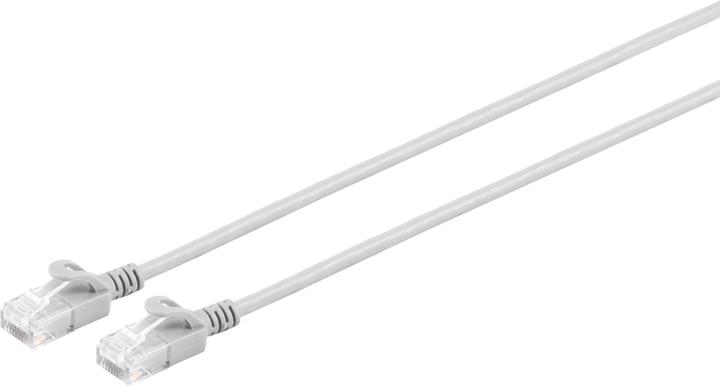

3. Kabelschweiz Patch cable CAT 6A Slim U/UTP 28AWG
The Cat 6a U/UTP Slim Cable is specifically designed to save space while providing a reliable network connection. With a thickness of only 3.6 mm, it is particularly slim and flexible, making installation and routing easier. The cable is available in 9 different colors, simplifying organization and identification in complex networks.
Connectors: Cat. 6A (500 MHz), RJ45 plug - RJ45 plug
AWG: 28
Sheath Material: LSZH
Cable Shielding: U/UTP (Unshielded Twisted Pair)
Wiring: according to TIA/EIA 568B
Bandwidth: up to 10 Gbit/s
Color: Gray.
Network cables
CHF20.60 CHF1.03/1m
Kabelschweiz Patch cable CAT 6A Slim U/UTP 28AWG
U/UTP, CAT6a, 20 m
4. Kabelschweiz Patch cable Cat. 6 flat, U/UTP
With an RJ-45 patch cable, you can connect your Smart TV, notebook,
PC or your set-top box to a network router or network switch.
The UTP flat cables are particularly flexible and extremely space-saving.
- Connections: RJ-45 plug to RJ-45 plug
- Compatible with 1000BASE-T and below
- Transmission frequency up to: 250 MHz
- Bandwidth up to: 1 Gbit/s
- Assignment according to: EIA/TIA 568B
- Specification: Cat. 6
- Downward compatible versions: Cat. 5E and below
- Shielding class: U/UTP
- Core material: Copper
- Core type: Stranded / flexible (stranded)
- Number of cores: 8 (4 x 2 twisted pair)
- Connector: moulded
- Contact surface: gold-plated
- Latching nose protection: no
- Colour of plug insert: transparent
- Cable type: Flat cable
- Cable sheath: PVC
- Cable diameter (approx.): 1.4mm x 6.1mm
- Colour: white.
5. Kabelschweiz Duplex patch cable LC/LC 50/125µ, OM4
The Duplex Patch Cable LC/LC 50/125µ, OM4 from Kabelschweiz is a high-quality solution for network connections based on multimode fibers. With a data rate designed to meet the demands of modern networks, this cable provides reliable and efficient data transmission. The use of high-quality materials, including ABS for the connectors, ensures a long lifespan and stability. The cable is specifically designed for use in networks and is ideal for applications that require high bandwidth. The gold-plated contacts ensure optimal signal transmission and minimize signal loss. With a length of 1 meter, it is versatile and can be used in various network environments.
- Multimode OM4 for high data transfer rates
- Gold-plated contacts for improved signal quality
- Made from durable ABS material
- Suitable for network connections in modern applications.
6. Kabelschweiz Patch cable cat6A S/FTP PIMF Halogen-free
The cat6A S/FTP PIMF patch cable from Kabelschweiz is a high-quality solution for network applications that require high transmission rates and reliable signal quality. With a bandwidth of up to 500 MHz, this cable is ideal for data transmission in modern networks. It is halogen-free, making it an environmentally friendly choice as it releases fewer harmful gases in the event of a fire. The use of copper as the material for the conductors ensures optimal conductivity and signal transmission. The cable is equipped with RJ45 connectors on both ends, allowing for easy connection to network devices. The special shielding with aluminum foil and PIMF technology minimizes interference and ensures a stable connection, even in demanding environments.
- Halogen-free material for increased safety and environmental friendliness
- 500 MHz bandwidth for high data transmission rates
- PIMF shielding to reduce electromagnetic interference
- Robust RJ45 connectors for reliable connections.
7. Kabelschweiz Verlegekabel CAT 6 UTP 23AWG 4 PAIR LSZH
Meet the most demanding network performance requirements with our high-quality Cat 6 UTP installation cable. With a wire diameter of 23 AWG and 4 pairs, this cable provides the optimal solution for fast and reliable data transmission in business or private networks.
Standards:
- ANSI/TIA-568-C.2
- IEC 61156-5
- EN 50288-6-1
- EN 50173
- ISO/IEC 11801
- EN 50575
Applications:
- 10BASE-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5)
- 100BASE-VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5)
- 100BASE-T (IEEE 802.3)
- 55/155 Mbps ATM
- 1000BASE-T (Gigabit Ethernet).
Network cables
CHF135.– CHF0.44/1m
Kabelschweiz Verlegekabel CAT 6 UTP 23AWG 4 PAIR LSZH
U/UTP, CAT6, 305 m
8. Kabelschweiz Verlegekabel CAT 7 S/FTP 23AWG 4 PAIR LSZH
Meet the highest demands for network performance with our Cat 7 S/FTP installation cable. With a wire diameter of 23 AWG and 4 pairs, this cable offers a premium solution for ultra-fast and reliable data transmission in both business and private networks.
Standards:
- IEC 61156-5
- EN 50288-4-1
- EN 50173
- ISO/IEC 11801
- EN 50575
Applications:
- 10BASE-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5)
- 100BASE-VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5)
- 100BASE-T (IEEE 802.3)
- 55/155 Mbps ATM
- 1000BASE-T (Gigabit Ethernet)
- 1.2 Gbps ATM
- 10G BASE-T.
Network cables
CHF169.95 CHF0.56/1m
Kabelschweiz Verlegekabel CAT 7 S/FTP 23AWG 4 PAIR LSZH
S/FTP, CAT7, 305 m
9. Kabelschweiz Patch cable CAT 8.1 F/FTP LSZH
The CAT 8.1 F/FTP LSZH patch cable from Kabelschweiz is a highly advanced copper cable specifically designed for use in data centers and multimedia applications. With a maximum bandwidth of 2000 MHz, it offers outstanding performance and is compatible with 40GBASE-T and 25GBASE-T standards. The RJ45 connectors are equipped with gold-plated contacts to ensure optimal signal transmission. The cable features double shielding, consisting of aluminum foil and a foiled PIMF construction, which guarantees 100% shielding effectiveness. The cable jacket is made of halogen-free LSZH material, making it a safe choice for environments where fire hazards are a concern. With a diameter of approximately 6 mm and an AWG of 26/7, this cable is both robust and flexible, facilitating easy installation.
- Maximum bandwidth of 2000 MHz for high data transfer rates
- Double shielding for optimal signal quality and interference resistance
- Gold-plated RJ45 connectors for improved contact quality
- Halogen-free LSZH cable jacket for enhanced safety
- Compatible with 40GBASE-T and 25GBASE-T standards.
10. Kabelschweiz Patch cable cat 6 S/FTP PIMF Halogen-free
The Cat 6 S/FTP PIMF patch cable is a high-quality network connection solution designed for reliable data transmission in modern networks. With a bandwidth of up to 250 MHz, this cable delivers optimal performance for applications that require high speeds. The halogen-free construction provides additional safety, particularly in environments where there is a fire risk. The use of copper as the conductor material ensures excellent signal transmission and minimizes interference. The gold-plated contacts of the RJ45 connectors ensure a durable and corrosion-resistant connection. This cable is ideal for use in offices, data centers, and other professional environments where a stable network connection is essential.
- Halogen-free cable for increased safety in fire-risk areas
- S/FTP PIMF construction to reduce electromagnetic interference
- Gold-plated contacts for improved signal transmission and longevity
- Suitable for network applications with high-speed requirements
- Robust RJ45 connectors for a reliable connection.
