Best selling Network antennas from Ubiquiti

On this page you’ll find a ranking of the best Network antennas from Ubiquiti. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Ubiquiti Panel antenna

Panel antenna UACC-UK-Ultra-Panel-Antenna.

2. Ubiquiti A GPON optical network unit

The A GPON optical network unit from Ubiquiti is a state-of-the-art solution for connecting to optical networks. With a 2.5 GbE port, it enables uplink speeds of up to 1.2 Gbit/s and downlink speeds of 2.5 Gbit/s over distances of up to 20 km. This unit is ideal for converting copper to fiber connections and can operate in both bridge and router modes. Equipped with an SC/APC GPON WAN port and a 1/2.5 GbE RJ45 LAN port, it offers a robust and powerful solution for modern networking needs. The WaveFiber ONU is not only functional but also elegantly designed, making it perfect for wall mounting. It supports the connection of up to 128 CPE units on a single GPON port, making it a flexible choice for various applications.

- Uplink speed of up to 1.2 Gbit/s
- Downlink speed of up to 2.5 Gbit/s
- Transmission range of up to 20 km
- Supports up to 128 CPE units per GPON port.

3. Ubiquiti AM-M522-45-AC: WLAN-AC Sector Ant.

AirMAX ac 2x2 BaseStation Sector Antenna, AM-5AC22-45

As the next generation of 2x2 MiMo sector antennas, the airMAX sector antennas feature significant advancements in scalability, noise shielding, and beam performance, complementing the Rocket 5ac radios. They are also compatible with RocketM5 models, although optimal performance requires the Rocket 5ac.

Breakthrough Performance
The airMAX ac sector antennas are extremely resistant to disruptive noise in co-location deployments. The innovative deflector design and reduced side and back lobes prevent interference from other nearby transmitters—even those on the same tower. An improved signal-to-noise ratio allows for higher modulation, 256QAM instead of 16QAM. This increases bits per second for a fixed bandwidth. Thanks to the innovative design, the airMAX sector antennas provide higher gain and better beam performance for capacity-intensive multipoint networks.

Market-Leading Isolation Performance
The airMAX ac sector antennas are designed to enhance noise shielding. When comparing the AM-5AC22-45 pattern to standard antenna patterns, the AM-5AC22-45 offers superior noise immunity and beam performance.

Dimensions: 750 x 215 x 94 mm (29.53 x 8.47 x 3.70")
Weight: 6 kg (13.23 lbs)
Frequency Range: 5.10 - 5.85 GHz
Gain: 22 dBi
HPOL Beam Width: 45° (6 dBi)
VPOL Beam Width: 45° (6 dBi)
Electrical Downtilt: 4°
Electrical Tilt: 2°
Maximum Standing Wave Ratio: 1.5:1
Wind Resistance: 200 km/h (125 mph)
Wind Load: 347 N (at 200 km/h)
Polarization: Dual-linear
Cross-Polarization Isolation: 30 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal pole mount, Rocket mount, and weatherproof RF jumper included.

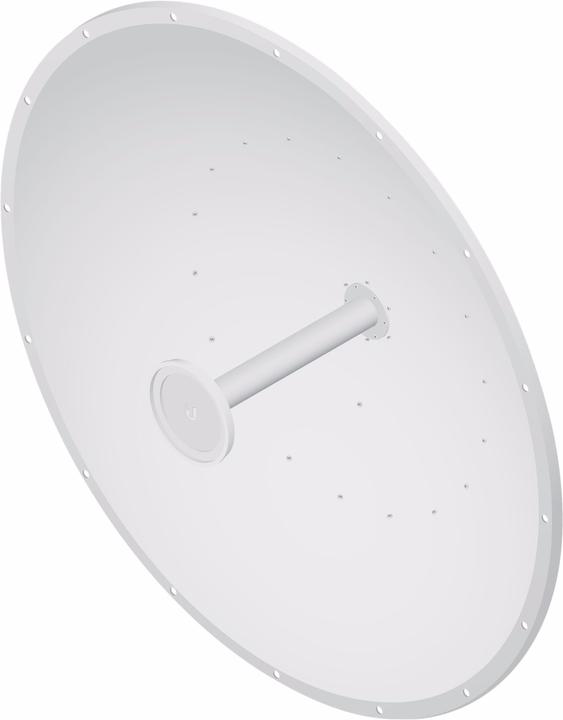

4. Ubiquiti airFiber X AF-5G34-S45

- Compatible with AirFiber X - AF-5X
- Frequency range: 5.10-5.90 GHz
- 5GHz 34dBi
- 105 cm diameter

Ubiquiti airFiber X Antenna - AF-5G34-S45

The Ubiquiti AF-5G34-S45 antenna utilizes horizontal and vertical polarization. This eliminates the need for purchasing two separate antennas along with the associated costs. The antenna is suitable for establishing simple point-to-point connections and is equipped with weatherproof accessories, ensuring a seamless connection with Ubiquiti's AirFiber X.

AF-5X sold separately.

5. Ubiquiti PrismAP-5-60

Ubiquiti PrismAP-5-60 - Antenna

Product Type: Antenna
Dimensions (width x depth x height): 16.16 cm x 17.33 cm x 17.09 cm
Weight: 720 g
Form Factor: Horn
Intended for: AirMax Compatibility
Frequency Range: 5.15 - 5.85 GHz
Antenna Gain: 16 dBi
Standing Wave Ratio: 2.0:1
Horizontal Beamwidth: 60°
Vertical Beamwidth: 60°.

6. Ubiquiti Antenna accessory that

The Ubiquiti WLAN antenna is a powerful omnidirectional antenna designed for use in various WLAN networks. With a maximum antenna gain of 4 dBi and a frequency range of 2.4 to 5 GHz, it provides reliable signal transmission and reception. This antenna is ideal for environments where uniform signal distribution is required, as it radiates in all directions. The RP-SMA connector allows for easy integration into existing network infrastructures. Additionally, the antenna is rated IPX6, meaning it is protected against water and dust, making it suitable for use in demanding environments. With a compact design and a weight of only 42 grams, it is easy to install and handle.

- Omnidirectional radiation for uniform signal distribution
- Maximum antenna gain of 4 dBi
- Frequency range of 2.4 to 5 GHz
- IPX6 protection class for resistance to environmental influences.

7. Ubiquiti AirMax Sector AM-3G18-120 - antenna

- 3GHz 18dB 120° 2X2 MiMo
- for Rocket M3
- 3300 - 3800 MHz
- 17.3 - 18.2 dBi gain
- 121° V / 118° H
- 2x RP-SMA

The Ubiquiti AirMax Sector Antenna is characterized by its high-quality construction, long lifespan, and especially by its high and consistent performance. The patented technology used in the AirMax Sector Antenna allows for significant gain. When combined with a Rocket M3, it creates a powerful point-to-point or point-to-multipoint connection. To simplify the installation of the Rocket M3 component, a mounting bracket and weatherproof RF connectors are included. The Ubiquiti AirMax Antenna is completely weatherproof, enabling it to withstand extreme weather conditions and other influences.

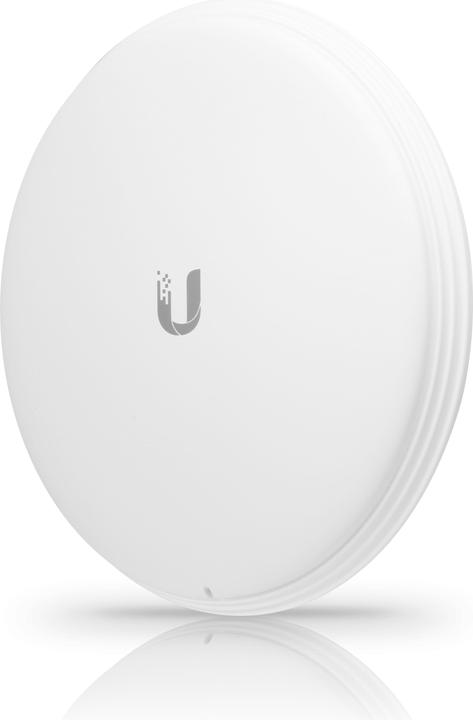

8. Ubiquiti PRISMAP-5-45

Ubiquiti's isolation antennas are available with different radiation angles to provide the best possible reception for any scenario. They impress with easy installation and reliable signal performance. This model features a TwistPort antenna connector and delivers an antenna gain of up to 15.5 dBi, as well as a frequency band of 5 GHz. It is compatible with AirPrism PS-5AC.

9. Ubiquiti AM-5G17-90: Base station antenna

AirMax Sector 5G17-90 - 5 GHz 2x2 MIMO Base Station Antenna

Antenna of the highest quality. The patented next-generation technology achieves performance in terms of gain, cross-polarization isolation, and beamforming that competes with the best antennas in the world. It is compatible with the Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP base station. The package includes a mount for the Rocket as well as weatherproof RF connectors.

Rocket M and AirMax base station sector antennas are designed to work seamlessly together. No special tools are required for installation; simply snap the device into the designated mount.

Frequency Range: 4.90-5.90 GHz
Gain: 16.1-17.1 dBi
Polarization: Dual linear
Cross-Polarization Isolation: 22 dB min.
Max. VSWR: 1.5:1
Hpol Beamwidth (6 dB): 72 deg.
Vpol Beamwidth (6 dB): 93 deg.
Elevation Beamwidth: 8 deg.
Electrical Downtilt: 4 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 367 x 63 x 41 mm
Weight: 1.1 kg
Wind Load: 120 mph.

10. Ubiquiti Offsetdish, 900MHz

UBNT Offsetdish NB-OD9 is a parabolic antenna with all accessories, specifically designed for LocoM9. Thanks to the parabolic antenna, the entire assembly will achieve a higher gain from the original 8 dBi (LocoM9) to the new 11 dBi (LocoM9 + NB-OD9).

Package includes:
- Parabolic antenna
- Mounting bracket
- Arm to hold the device in front of the parabolic antenna

Technical parameters:
Wireless properties:
Wireless frequency: 900 MHz
Antenna gain [dBi]: 11

Physical properties:
Antenna design: Parabolic antenna
Purpose: Outdoor use.
